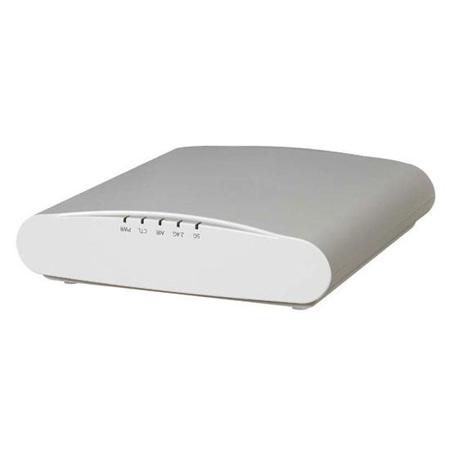

Ruckus ZoneFlex R610 Dual-Band 802.11ac Wave 2 3x3:3 Smart Wi-Fi Indoor Access Point

SKU: RK901R610USC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ruckus ZoneFlex R610 Specifications

Performance and Capacity

Performance and Capacity

Jump to...
  • Concurrent Stations

    Up to 512 clients per AP

  • Simultaneous VoIP Clients

    Up to 30 clients per AP

  • Antenna

    Full omnidirectional polarization diversity

  • Physical Antenna Gain

    Up to 3 dBi

  • BeamFlex SINR TX Gain

    Up to 6 dB

  • BeamFlex SINR RX Gain

    3-5 dB (PD-MRC)

  • Interference Mitigation

    Up to 15 dB

  • Minimum RX Sensitivity

    Up to -100 dBm

Management

Jump to...
  • Deployment Options

    Standalone (individually managed)
    Managed by ZoneDirector (9.13.2 & Above)
    Managed by SmartZone (3.4.1 & above)
    Managed by FlexMaster

  • Configuration

    Web User Interface (HTTP/S)
    CLI (Telnet/SSH), SNMP v1, 2, 3
    TR-069 vis FlexMaster

  • Auto AP Software Updates

    FTP or TFTP, remote auto available

  • Standards

    IEEE 802.11a/b/g/n/ac
    2.4GHz and 5GHz

  • Supported Data Rates

    802.11n/ac: 6.5Mbps - 260Mbps (20MHz), 13.5Mbps - 600Mbps (40MHz), 29.3Mbps - 1300Mbps (80MHz)
    802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
    802.11b: 11, 5.5, 2 and 1 Mbps
    802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

  • Radio Chains

    3x3

  • Spatial Streams

    3 streams

  • RF Power Output (Aggregate)

    28 dBm for 2.4 GHz
    27 dBm for 5 GHz

  • Channelization

    20MHz, 40MHz, 80MHz, 160MHz capable

  • Frequency Band

    IEEE 802.11 b/g/n: 2.4 - 2.484GHz
    IEEE 802.11a/ac: 5.15 - 5.25GHz; 5.25 - 5.35GHz; 5.47 -5.725GHz; 5.725 - 5.85GHz

  • Operating Channels

    US: 1-11
    5 GHz channels: Country dependent

  • Power Save

    Supported

  • Wireless Security

    WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
    Authentication via 802.1X with the ZoneDirector, SmartZone, local authentication database, support of RADIUS and ActiveDirectory

  • Certifications

    U.S.
    WEEE/RoHS compliance
    EN-60601-1-2 (Medical)
    Wi-Fi Alliance
    EN50121-1 Railway EMC
    EN50121-4 Railway Immunity
    IEC 61373 Railway Shock & Vibration
    UL 2043 plenum rated
    5GHz UNII-1 (2014)

Physical

Jump to...
  • Power

    DC Input 12V DC, 1.0A
    Power over Ethernet 802.3af/at

    802.3af mode feature:
    Limits 2.4GHz to 2x3 (2-chain transmit at 21dBm aggregate power, 3-chain receive)
    Turns off USB port
    Turns off 1 Ethernet port

  • Ethernet Ports

    2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port (on one port)

  • Mounting Options

    Electrical wallbox; Standard US and EU single gang wall jack
    Bracket for offset & wall mount

  • Lock Options

    Hidden latching mechanism
    Kensington Lock Hole
    T-bar Torx

  • Power Draw

    12V DC Input:
    Idle: 5.7W
    Typical: 10.5W
    Peak: 19.1W

    Power over Ethernet Input:
    Idle: 5.7W
    Typical: 10.4W
    Peak: 18.8W

  • Environmental Conditions

    Operating Temperature: 0 to 40 deg. C (32 to 104 deg. F)
    Operating Humidity: 10% - 95% non-condensing

  • USB Port

    USB 2.0
    Type A connector
    Ideal for BLE dongles and sensors

  • Dimensions (LxWxH)

    20.1 x 19.5 x 5.1cm (7.91 x 7.68 x 2.01")

  • Weight

    578g (20.39 oz)

About Ruckus ZoneFlex R610

High Performance, 802.11ac Wave 2 Mid-range Smart Wi-Fi Access Points With Adaptive Antenna Technology
The Ruckus ZoneFlex R610 delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.

The R610, through its USB port, also enables IoT readiness for technologies like BLE, to help customers take advantage of upcoming IoT technologies. Each ZoneFlex R610 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antennas that continually forms and directs each Wi-Fi packet over the best performing signal path.

Using dual-polarized antennas, the R610 adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance.

MU-MIMO
MU-MIMO helps Wave 2 and non-Wave 2 clients. The R610 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.

Advanced WLAN Applications
When used with the Ruckus WLAN controllers, each ZoneFlex R610 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R610 works with a wide range of authentication servers including Microsoft's Active Directory, LDAP and RADIUS.

Flexible Deployment Options
R610 offers unprecedented & unmatched flexibility-with the same AP being able to connect to a variety of controllers-ZoneDirector, SmartZone or Cloud. This gives you the ability to buy an AP now and change your controller later. ZoneFlex R610 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP or route between the WAN and NAT'ed private subnets. With the Ruckus controllers, each ZoneFlex R610 is automatically configured through the network making deployment quick and easy.

Complete Local And Cloud Management
Each ZoneFlex R610 can be managed by the ZoneDirector controller or the SmartZone series of on-premise or virtual hosted controllers or through Cloud Wi-Fi.

Mid-range High Performance with Superior Network Efficiency
• Three-stream MU-MIMO 3x3:3 for simultaneous downlink transmissions to multiple Wave 2 client devices
• Concurrent dual-band (5GHz/2.4GHz) support
• 1300 Mbps (5 GHz) and 600 Mbps (2.4 GHz) of user data rate
• Up to 4dB of signal-to-interference and noise (SINR) improvement and up to 10dB of interference mitigation
• Capable of supporting up to 512 clients per access point
• Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches
• Capability to support 80+80/160 MHz channels for higher bandwidth
• USB port to support BLE

Consistent and Predictable Performance
• Adaptive antenna technology optimizes Wi-Fi performance in most environments
• Automatic interference mitigation, optimized for high-density environments
• Dual-polarized adaptive antennas with up to 1024 antenna patterns per access point for ultra-reliability

MU-MIMO: Improves Network Performance For All Clients
This cutting edge Wi-Fi technology, gets you ready for the new 11ac Wave 2 mobile devices. It improves network efficiency & throughput for even non-Wave 2 clients.

Hassle-free IoT Readiness
Ideal for enabling IoT technologies like BLE using the USB port.

Investment Protection
Flexible deployment options enable AP's to be supported across various management platforms: standalone, on-premise/virtual controller or Cloud-managed.

Sleek, Low Profile Enclosure For Ease-of-deployment
Aesthetically-pleasing design and a range of mounting options.

Channel Selection Optimizes Throughput
ChannelFly dynamic channel management, based on throughput measurements, not just interference, chooses the best channel to give users the highest possible throughput.

Wider Channels
Capability to support 80+80MHz/160MHz channels for higher bandwidth.

Extended Range Requiring Fewer Access Points
Adaptive antenna technology delivers up to 2x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area.

Adaptive Polarization Diversity (PD-MRC)
Dual-polarized antennas that are dynamically selected provide better reception for hard to hear clients and more consistent performance as clients constantly change orientation.

The ZoneFlex R610 Integrates With Your Existing Network Infrastructure
Delivering best-in-class 802.11ac performance and reliability - making it the ideal wireless solution for mid-range enterprise and branch office applications.

Deployments For Classrooms And Libraries
The ZoneFlex R610 is ideal for deployment in education common areas providing high quality wireless access in high-density locations.

Deployment For Retail / Branch Offices
The ZoneFlex R610 is ideal for deployment in retail stores to provide inconspicuous wireless connection to high quality video, wireless IP phones and data access for handheld PoS bar code scanners.

Ruckus ZoneFlex R610 Features

  • 802.11ac Multi-User MIMO (MU-MIMO)
  • Dual-band concurrent (5GHz/2.4GHz)
  • BeamFlex+ (PD-MRC) smart antenna, with support for up to 1024 unique antenna patterns per access point enables up to 4dB of additional gain and up to 10dB of additional interference mitigation
  • 80+80/160MHz capable
  • Automatic interference mitigation, optimized for high-density environments
  • 802.11ac standard Tx Beamforming
  • Standard 802.3af/at Power over Ethernet (PoE)
  • Two 10/100/1000 Ethernet ports, one with 802.3af/at Power over Ethernet (PoE)
  • USB port for IoT technologies
  • Router mode with NAT and DHCP services
  • IP multicast video streaming support
  • Advanced QoS packet classification and automatic priority for latency-sensitive traffic
  • Dynamic, pre-user rate-limiting for hotspot WLANs
  • WPA-PSK (AES), 802.1X support for RADIUS and Active Directory
  • Ethernet 802.1X port-based authentication (authenticator and supplicant)
  • Dynamic PSK
  • Admission control/load balancing
  • Band steering and airtime fairness support
  • Captive portal and guest accounts
  • Application recognition and control
  • SmartWay Bonjour gateway
  • Hotspot 2.0
  • SPOT location services
  • SmartMesh

What's in the box:

  • Ruckus ZoneFlex R610 Dual-Band 802.11a/b/g/n/ac Wave 2 3x3:3 Smart Wi-Fi Indoor Access Point
  • Ruckus Lifetime Limited Warranty
