This item is no longer available.
Entry-Level Access Switch Family Delivers Unprecedented Performance and Features in ITs Class

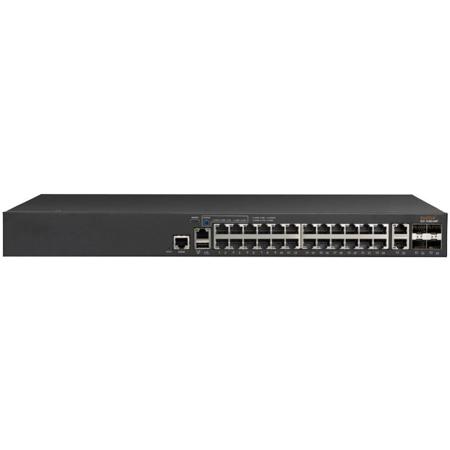

The Ruckus ICX 7150 family of stackable switches delivers the performance, flexibility and scalability required for enterprise access deployment, raising the bar with non-blocking performance and up to 2x10 GbE ports for uplinks or stacking. It offers seamless interoperability with Ruckus wireless products to deliver unified wired and wireless network access. In addition, Ruckus Multigigabit Ethernet technology offers bandwidth speeds needed to optimize performance of the latest generation high performance wireless access points and edge devices, over standard Ethernet cables.
Stacking Across the ICX 7150 Family
Ruckus stacking technology makes it possible to stack up to twelve Ruckus ICX 7150 switches into a single logical switch. This allows the Ruckus ICX 7150 to deliver a class-leading 480 Gbps of aggregated stacking bandwidth and offer simple and robust expandability for future growth.
Stacking is supported across the ICX 7150 family and all ICX 7150 models can be mixed within the same stack. This stacked switch has only a single IP address that simplifies management. When new switches join the stack, they automatically inherit the stack's existing configuration file, enabling a plug-and-play network expansion.
Enterprise-Class Availability
The Ruckus ICX 7150 Switches help deliver continuous availability to optimize the user experience. Ruckus stacking technology provides high availability by performing real-time state synchronization across the stack and transferring switch management control from the master stack controller to the standby controller if the master stack controller experiences a failure. When hot-inserting or hot-removing a stack member to increase capacity or perform service upgrade, traffic flows will not experience interruption.
In addition to stack-level high availability, Ruckus ICX 7150 Switches also support stack level ISSU (In Service Software Upgrade), a unique capability that allows the user to perform software upgrades to a Ruckus ICX 7150 stack without service interruption.
Silent Operation
The Ruckus ICX 7150-24P switches, feature a fanless design that enables it to operate silently. This Ruckus exclusive feature enables users in hospitality, education, healthcare and retail industries to deploy these switches outside of the wiring closet without disrupting the work environment.
Power Next-Generation Edge Devices
All ICX 7150 family members offer PoE options. The 24-port ICX 7150 switches offer up to 740W of PoE+ power.
The Ruckus ICX 7150 is one of the ICX switch families delivering the enterprise class features for flexibility, scalability and simplified management. Ruckus Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost effectiveness to then next level, including:
• Stacking on standard Ethernet ports
• Long-distance stacking
• No hardware module require for stacking
• In Service Software Upgrade (ISSU) to minimize downtime
• Superior scalability with the industry-leading number of switches per stack
• Stacking at the access, aggregation and core layers
Enterprise-Class Availability to improve resiliency and minimize downtime, including:
• Hitless stack failover
• Hot-insertion/removal of stack members
• Redundant power supplies
• In Service Software Upgrades for switch stacks
On-boarding and security policies across ICX switches and wireless networks. OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same port for Software Defined Network (SDN) enabled programmatic control of the network.
Open Standards based management, monitoring and authentication
• sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network congestion
• Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP) and SNMPv3
• Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure operator access
• LLDP and LLDP-MED protocol support for configuring, discovering and managing network infrastructure such as QoS, security policies, VLAN assignments, PoE power levels and service priorities
Stackability Simplifies Management
• Class-leading stacking scalability with up to 12 switches per stack
• Long-distance stacking up to 10 km using standard optics or cables
10 GbE Ports Optimize Network Performance
• Up to 2x10 GbE SFP+ ports for stacking or uplinks
Class Leading PoE Budget to Power Advanced Edge Devices
• PoE+/PoH budget (370 watts)
• Supports advanced wireless APs and video surveillance equipment
Silent Operation for Deployment in the Work Environment
• Fanless design or silent mode enables non-disruptive deployment
Advanced L3 Maximizes Flexibility
• RIP, OSPF, VRRP, PIM, PBR L3 features
Campus Fabric Reduces Cost of Operations, Increases Flexibility
• Ruckus Campus Fabric delivers the benefits of a chassis with the flexibility of stackables
• Scales to over 1800 ports
