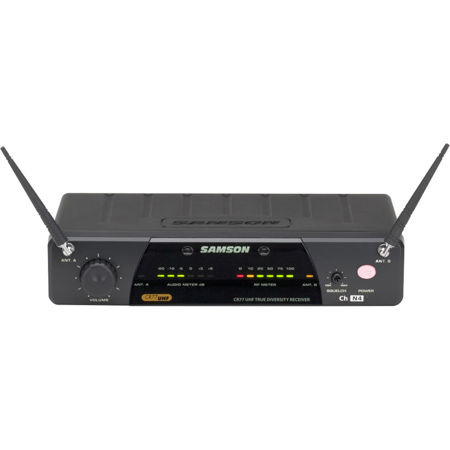

Samson CR77 Diversity Receiver with AC500 Power Supply, K2: 490.975 MHz

SKU: SA77R00K2 MFR: SW77R00-K2
$99.99
Earn VIP Reward Points

Key Features

  • Experience clear audio with this wireless receiver, perfect for live performances.
  • Ensure reliable connectivity with the CR77's diversity receiver, minimizing dropouts.
  • Enjoy a wide frequency response (50 Hz - 15 kHz) for detailed sound reproduction.
  • Easily adjust audio levels with intuitive controls, optimizing your sound quality.
  • Operate confidently across a broad temperature range, ideal for any environment.
  • This durable receiver provides a stable signal, enhancing your wireless microphone setup.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samson CR77 Diversity Receiver Specifications

  • Oscillation Type

    PLL

  • Frequency Band

    K2: 490.975 MHz

  • Antennas

    1/4 Wavelength Rod

  • Indicators

    Receiver A/B (Green), Power On (Red), AF Level (6 segment), RF Level (6 segment)

  • Level Control

    Audio Level Volume, Squelch Level Control

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Operating Voltage

    12 Volts +/-10%

  • Current Consumption

    160 mA (all LED lights illuminated)

  • Sensitivity

    18 dBm (@ THD 2%)

  • Squelch Sensitivity

    0 - 40 dBm (Adjustable)

  • T.H.D. (Overall)

    1% Max (@AF 1 kHz, RF 46 dBu)

  • S/N Ratio (Overall)

    90 dB (w/IHF-A Filter)

  • Residual Noise

    90 dBv (w/IHF-A Filter)

  • AF Frequency Response

    50 Hz - 15 kHz ( +/-3 dB overall)

  • Audio Output Level

    Unbalanced: 0 dBv
    Balanced: -20 dBm (Line), -40 dBm (Mic)

  • Audio Output Impedance

    Unbalanced: 5 k Ohm
    Balanced: 600 Ohm

  • UPC Code

    809164220329

About Samson CR77 Diversity Receiver

You'll experience superior performance with the durable and high-quality CR77 True Diversity Receiver, engineered with an advanced frequency range of 490.975 MHz. This innovative receiver is designed to deliver reliable, interference-free reception, making it an ideal choice for professional audio applications.

With up to 300 feet (90m) of wireless operation, this receiver ensures consistent, high-quality sound, whether you're using it for live performances, broadcasts, or other wireless microphone applications. Its lightweight, half-rack housing is not only portable but also designed for permanent installation with a rackmount kit (sold separately), providing you with versatile usage options.

The CR77 Diversity Receiver also boasts an integrated AC500 power supply, eliminating the need for an external power source and enhancing its convenience. The rear panel is equipped with both balanced XLR and unbalanced 1/4" outputs, offering flexible connection options to suit your audio setup.

In essence, the CR77 True Diversity Receiver with AC500 Power Supply is a reliable, high-quality solution for your wireless microphone system needs, designed to deliver superior sound quality and performance in the 490.9 MHz frequency range.

Samson CR77 Diversity Receiver Features

  • True Diversity design minimizes dropouts
  • Mountable half-rack chassis
  • 1/4-wave antennas
  • Multi-segment audio and RF level LED meters
  • Volume and squelch controls
  • Balanced XLR output, unbalanced 1/4" output
  • Mic/Line level output switch

Product Documents

User Manual

Key Features

  • Experience clear audio with this wireless receiver, perfect for live performances.
  • Ensure reliable connectivity with the CR77's diversity receiver, minimizing dropouts.
  • Enjoy a wide frequency response (50 Hz - 15 kHz) for detailed sound reproduction.
  • Easily adjust audio levels with intuitive controls, optimizing your sound quality.
  • Operate confidently across a broad temperature range, ideal for any environment.
  • This durable receiver provides a stable signal, enhancing your wireless microphone setup.

What's in the box:

  • CR77 Diversity Receiver with AC500 Power Supply
  • 12 VDC Power Supply
  • Samson 2 Year Limited Warranty
