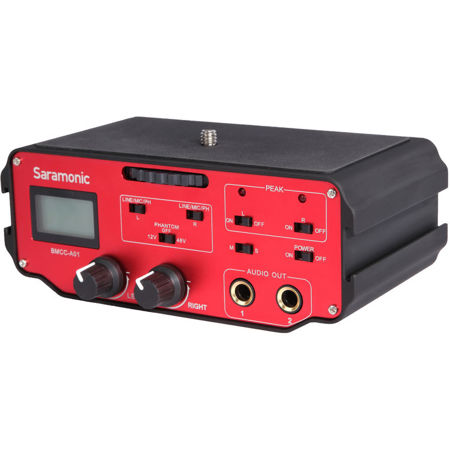

Saramonic BMCC-A01 2 Channel XLR Audio Adapter with Level Controls and Phantom Power for Blackmagic Cinema Camera, No Isolation Transformer

The Saramonic BMCC-A01 is a 2-channel XLR audio adapter designed specifically for the Blackmagic Cinema Camera. Featuring phantom power controls, the BMCC-A01 allows you to connect microphones, wireless microphones, digital recorders, external audio mixers, sound boards and more. Conveniently designed to save you hours in post-production. Audio from your microphones will be passed to your camera by BMCC-A01 - with or without the use of the 9V battery.

Advanced functions such as the level meter, 12V/48V phantom power and LED indicator are available by engaging battery power. The Saramonic BMCC-A01 allows you to record high quality audio directly to the camera, eliminating the need for a separate audio recording.

Inputs
Dual Balanced Left and Right XLR inputs; one 3.5mm aux input.

Output
Dual TRS 1/4" outputs: OUT 1 and OUT 2.

LINE/MIC/PH Switch
• LINE switch when camera is set to LINE input
• MIC switch when camera is set to MIC input
• PH switch enables the use of phantom power

PH (Phantom) Voltage
Selects phantom voltage: 12V, 48V or OFF.

LED Light power switch
Enable/Disable LED warning light.

VU meter
Indicates the sound level in dB for each channel.

LEFT and RIGHT Trim Controls
Individually adjust output levels of each channel.

M/S switch
Select Mono or Stereo output mode.

Power Switch
Main power switch for audio adapter.
