Samson SRKPRO16 16-Space 19" Universal Equipment Rack with PowerBrite PB15 Power Distributor

SKU: SASRP16USB15

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samson SRKPRO16/PB15 Specifications

Rack
  • Construction

    Steel

  • Cabinet

    16U

  • Weight Capacity

    440 lbs (199.58kg)

Power Distributor

Jump to...
  • Number of Outlets

    8 switched, 1 unswitched

  • Max. Current

    15 Amp (circuit breaker protected)

  • Input Voltage (RMS)

    0 to 130 VAC continuous

  • Spike Protection Mode

    Hot to Neutral, Hot to Ground and Neutral to Ground

  • Max. Clamping Voltage (At 50A)

    340 VAC

  • Response Time

    1 nanosecond

  • Max. Surge Current

    6,000 Amps (8 x 20 _s pulse)

  • Max. Spike Energy

    70 Joules per leg

  • Noise Attenuation

    >20 dB, 1.5 MHz to 200 MHz

  • Power Cord

    Attached, 14 gauge

  • LED Light Life (Typical)

    100,000 Hours

General

Jump to...
  • Dimensions

    Rack:
    33 x 22.75 x 24" (83.82 x 57.79 x 60.96cm)
    With Casters: 35.75" (90.81cm)

    Power Distributor (WxDxH): 19 x 7.5 x 3.5" (482.60 x 190.50 x 88.90mm)

  • Weight

    Power Distributor: 6.5 lbs (2.95kg)

About Samson SRKPRO16/PB15

- Universal Equipment Rack -

The Racks Are Back!

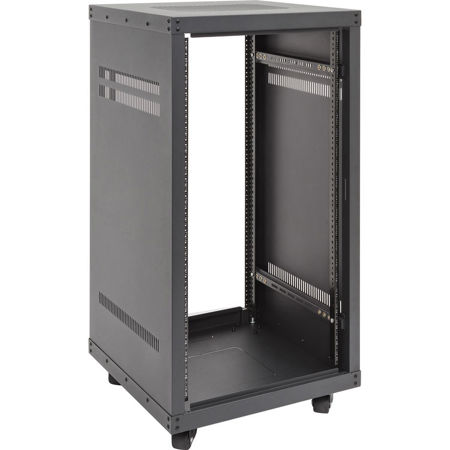

The Samson SRK Pro 19" universal equipment racks are available in four sizes to accommodate any rack mounted gear setup: 8-space (SRKPRO8), 12-space (SRKPRO12), 16-space (SRKPRO16) and 21-space (SRKPRO21).

All the racks are constructed of commercial-grade cold-rolled steel with fully enclosed side panels, as well as adjustable (4-position) front and rear rack rails that offer a highly accommodating maximum depth of 24". The top and side panels feature perforations for passive ventilation, while the top and bottom panels include knockouts for wiring accessibility. The racks can be set upon the included casters for easy transport or the included rack feet for fixed installation.

Either way, these racks can handle a weight capacity of up to 440 lbs. In addition, their unique steel support bar design allows these racks to work with U.S. or European screw thread sizes (hardware included). Lastly, the SRK Pro Racks are made specifically to fit the Samson SRK Pro Metal and Plexi Rack Doors (sold separately) on both their front and back panels.

- PowerBrite PB15 -

Power & Light, Distributed
The Samson PowerBrite PB15 has been engineered to the finest detail utilizing state-of-the-art technology in power distribution. This 19", single-space rack unit offers convenient front and back-panel LED lighting options to cover your entire rack setup and multiple outlets for reliable power distribution with 3-point surge and spike protection, plus RF (Radio Frequency) filtering.

The PowerBrite PB15 features dual front-panel LED lamps with dimmer control, to fully illuminate all the gear in your rack. The lamps automatically turn on and off when extended and retracted. The PowerBrite PB15 also has a rear-panel USB socket to be used with the included LED gooseneck lamp so you can see the backside of all your gear as well.

The PowerBrite PB15 provides eight switched, rear-panel AC outlets that allow you to power an entire rack's worth of gear from a single source. These outlets are mounted both vertically and horizontally to accommodate standard 3-pin plugs, as well as external transformer AC power adapters. A dedicated Outlets switch with status light powers these rear-panel outlets. The PowerBrite PB15 also features an unswitched front-panel convenience outlet for temporary power needs (plugging in a guitar amplifier, soldering iron, etc.).

In addition, the PowerBrite PB15's resettable, front-panel 15-amp circuit breaker protects all connected gear. This, along with its steel chassis construction, makes the Samson PowerBrite PB15 a reliable tool on the road or in fixed installations.

Samson SRKPRO16/PB15 Features

  • Universal Equipment Rack:
  • 19" universal equipment racks
  • Commercial-grade cold rolled steel construction with fully enclosed sides
  • Adjustable (4-position) front and rear rack rails
  • Casters included for easy transport
  • Rack feet included for fixed installation
  • 440 lbs of weight capacity
  • Compatible with U.S. and European screw thread sizes (hardware included)
  • Top and side perforations for passive ventilation
  • Top and bottom knockouts for wiring accessibility
  • Black brushed, anodized finish
  • Samson SRK Pro Metal and Plexi Rack Doors available separately
  • PowerBrite PB15 Power Distributor:
  • 19" (single-space) rack mountable power conditioner with LED lighting
  • Dual front-panel LED lamps (in retractable cylinders) with dimmer control
  • Eight switched, rear-panel AC outlets
  • Outlets switch with status light powers rear-panel outlets
  • Single unswitched, front-panel convenience outlet
  • 3-point surge protection, peak voltage spike clamping and RFI/EMI filtering
  • Resettable, front-panel 15-amp circuit breaker protects all connected gear
  • Rear rack lighting via USB socket and included LED gooseneck lamp
  • Rugged steel chassis construction ideal for on the road or in fixed installations

What's in the box:

  • Samson SRKPRO16 16-Space 19 " Equipment Rack
  • PowerBrite PB15 Power Distributor
  • 4x Casters
  • Rack Feet
  • Hardware
  • USB Gooseneck LED Lamp for Power Distributor
  • Samson 2 Year Limited Warranty for Rack
  • Samson 1 Year Limited Warranty for Power Distributor
