Samson AirLine 88 Headset 16 Channel UHF Wireless System, Includes 1x CR88 Receiver, 1x AH8 Transmitter, Band K: 470 494 MHz

SKU: SASWC88AH8K

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samson AirLine 88 Headset Specifications

  • Frequency Range

    Band K: 470 494 MHz

  • Receiver: Audio Output Level

    Balanced +9dBu, unbalanced +14dBu

  • Receiver: Audio Output Impedance

    Balanced 240Ohms, unbalanced 810Ohms

  • Transmitter: Microphone Element

    AE50X micro-miniature condenser

  • Transmitter: Pickup Pattern

    Cardioid

  • Transmitter: RF Power

    10 mW EIRP

  • Transmitter: Battery Life

    8 hours from lithium ion battery

  • Working Range

    300' (100m) line-of-sight

  • Dynamic Range

    >100dB A-weighted

  • Signal To Noise

    >90dB

  • Applications

    Fitness/aerobics instruction
    Auctioneers
    Singer/dancers
    Education
    House of worship

  • UPC Code

    809164218074

About Samson AirLine 88 Headset

Get Physical, Go Wireless

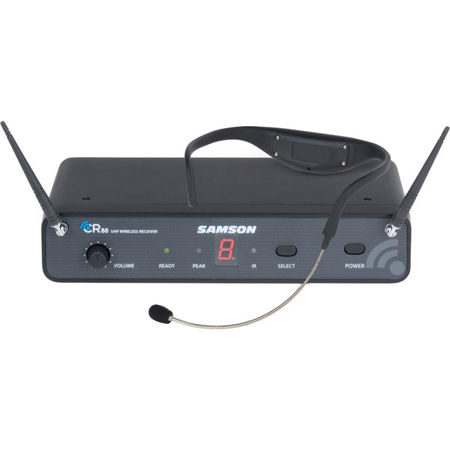

Samson's AirLine 88 Headset system offers true wireless freedom without the hassle of a beltpack or cable. Featuring a lightweight, water-resistant micro transmitter headset with a secure yet comfortable fit, this frequency-agile UHF wireless system provides high definition sound, premium reliability and a 300' operating range for fitness instructors and active performers.

The Wireless Future
Building on the legacy of the world's first cable-free wireless system (Samson's AirLine 77), the AirLine 88 Headset combines a micro transmitter and adjustable gooseneck into a low profile headset that molds to the shape of your head. Other great features of the AH8 Headset Transmitter include an internal 8-hour rechargeable lithium ion battery, easily accessible Gain and Mute controls and IR sync to wirelessly match the receiver and transmitter frequency.

Fitness In Mind
Designed with Yoga, Pilates, Zumba and cycling instructors in mind, the system's headset features water-resistant components, including a marine-grade stainless steel gooseneck, sealed circuit board and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern prevents feedback and other unwanted noise from affecting a performance.

Tour Support
Offering frequency-agile operation, the system's rack mountable CR88 Wireless Receiver provides 16 selectable channels for reliable performance no matter where you are. The receiver's True Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously.

AirLine 88 Headset System
• Frequency agile UHF wireless system
• 16 operating channels across 24MHz bandwidth
• Up to eight simultaneous systems per frequency band (region dependent)
• Rackmount kit included

CR88 Wireless Receiver
• IR sync wirelessly matches receiver and transmitter frequency
• True Diversity design minimizes dropouts
• Tone key prevents unwanted noise when transmitter is off/out of range
• 1/4-wave antennas
• Half-rack receiver design
• LED display indicates operating channel
• Balanced XLR, unbalanced 1/4" outputs

AH8 Headset Transmitter
• Headset with built-in micro transmitter (no beltpack or cable required)
• Water-resistant design for high-energy instructors/performers
• Marine-grade stainless steel gooseneck
• AE50X micro-miniature microphone capsule with cardioid pickup pattern
• Offers up to eight hours of battery life using built-in rechargeable lithium ion battery
• Sealed gold contact charging connector for included USB-style charger
• Low battery LED indicator
• 300' operating range (line-of-sight)
• Variable Gain control
• 1-touch Mute

What's in the box:

  • Samson 1x CR88 Wireless Receiver
  • 1x AH8 Headset Transmitter
  • Rackmount Kit
  • Rechargeable Lithium-ion Battery
  • USB Charger
  • Marine-grade Stainless Steel Gooseneck
  • Sealed Circuit Board
  • AE50X Micro-miniature Microphone Capsule
  • 4x Mic Windscreens
  • AC Adapter
  • Samson 2 Year Limited Warranty
  • Samson 1 Year Limited Warranty for AH8 Transmitter
  • Samson 90 Day Limited Warranty for Rechargeable Battery
