Shinybow 4x4 VGA Matrix Routing Switcher with IR & RS-232 Control, LCD Display
SKU: SBSB4140LCM
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Shinybow Routing Switcher
FEATURED REVIEWS
Well made switch box
Got the silver but preferred the black. It works well, good quality. Very happy with purchase.

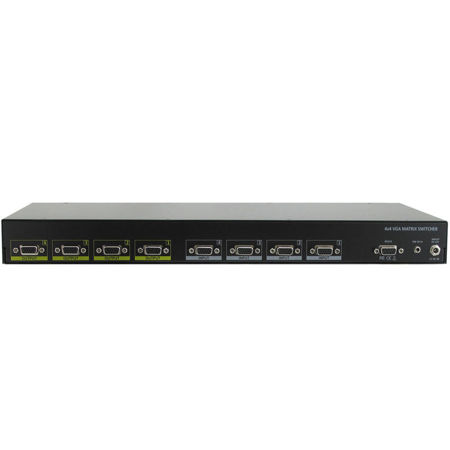

The SB-4140LCM is a true 4x4 matrix routing switcher for VGA-(RGBHV) signals. It has (4) individual VGA (RGBHV) inputs with (4) individual VGA (RGBHV) outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around VGA input and output cables.
The SB-4140LCM is useful for matrix signals from VGA (RGBHV) source devices (such as VGA based: Personal computer, Satellite Receivers, CAT5 Set Top Boxes, etc.) to VGA destination devices (such as VGA based: HDTV, LCD TVs, Plasma TV Sets, Video Projectors, etc.). Selection of inputs is made via the front panel push buttons or an infrared remote control or RS-232 control by computer.
Shinybow Routing Switcher Features
- (4) Inputs VGA (RGBHV) to (4) VGA (RGBHV) Outputs matrix switcher
- Supports (4) VGA (RGBHV) Input signal sources
- Supports (4) VGA (RGBHV) Output signals devices such as monitors, plasma, LCD displays
- Higher video bandwidth 450MB each path R,G,B signals
- Supports HD high definition resolutions XGA, SXGA, UXGA, WSXGA, WUXGA
- RS-232 serial interface via at ethernet control is optional
- Compatible with all VGA video monitor devices, Plasma displays and Projectors
- Supports RS-232 serial interface protocol command list
- PC RS-232 control drive compatible with Win-95/98/2000/XP
- Various User Interface controls: Included Window based control software for desktop or NB control by RS-232 port, Manual control via front panel buttons, IR remote control
- Supports desktop with ear mount and 19" 1U rack mountable type panel
