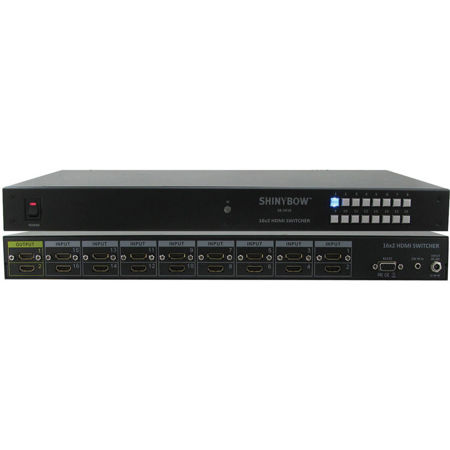

Shinybow 16x2 HDMI Routing Selector Switch
See all Shinybow items

Shinybow 16x2 HDMI Routing Selector Switch

SKU: SBSB5616

This item is no longer available.

Recommended Alternatives

Shinybow Routing Switch: Picture 1 regular
Shinybow 16x16 HDMI Matrix Routing Switch with Full EDID Management/Learning
$6,449.05
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Selector Switch Specifications

  • Type of Signal

    TMDS Digital Video PCM Digital Audio

  • HDMI Support

    HD 1080p-at 60Hz, H36-bit Deep color, 3D (1.3b) formats

  • HDCP / CEC Support

    HDCP 1.2 Compliant, CEC Compliant

  • Video Bandwidth

    Wide Frequency range 25MHz - 340MHz

  • Digital Video Support

    Full HD Resolution: 480i / 480p / 720p / 1080i / 1080p

  • Digital Audio Support

    Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

  • Controls

    IR remote controller
    IR external port x1 (OD 3.5mm ear phone jack)
    Select & Function buttons on front panel
    RS-232 series interface

  • Double Output

    Supports Output #2 port simultaneously via Output #1

  • Source Status

    16 auto LED illuminate white

  • Infrared Frequency

    38Khz

  • IR External Distance

    Approx. 1000' / 300m maximum

  • HDMI I/O Connector

    HDMI Type A - SMD 19pin female type

  • Temperature

    32 to 100 deg. F / 0 to 38 deg. C

  • Rack Mount

    1RU high 19"

  • Power Supply

    DC12V / 3A, Universal world wide type 50/60Hz, 100-230 VAC

  • Power Consumption

    1850 mA Maximum

  • Safety Approvals

    CE, FCC, RoHS (2002/95/EC)

  • Dimensions (W x D x H)

    19 x 9.85 x 1.75" / 482.60 x 250.19 x 44.45mm

  • Weight

    3.58lbs / 1.62kg

  • UPC Code

    4718091561602

About Shinybow Selector Switch

The SB-5616 is a competitive high performance 16 inputs to outputs routing switcher. Designed for HDMI signal, Support Digital Video TMDS format and Digital Audio via HDMI 19 Pin connectors. This product is certified as being fully HDMI and HDCP 2.0 compliant. Providing 16 HDMI device inputs and 2 HDMI device outputs.

The Switcher support HDMI 1.4a 3D formats the data rate up to 2.25Gbps. Also control any one of the 16 inputs to 2 outputs via press the selection buttons on the front panel. Control by selection buttons on the front panel, IR Remote controller and RS232 via a PC. The product approved the CE & FCC complaints. Support high resolution 1080p quality HDMI sources to a HDMI display, monitor or projector.

Shinybow Selector Switch Features

  • (16) HDMI digital source devices matrix switched to (2) HDMI devices
  • HDMI digital video with embedded audio, DVI format and CEC/HDCP 1.2 compliant
  • Wide frequency range of 25MHz - 340 MHZ, Supports HDMI 1.3b 3D formats
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p
  • Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTV and audio receivers/amplifiers
  • Digital Video TMDS formats resolutions up to 1080p-60 with Deep color 36-bit
  • Digital Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Various User Interface Control
  • Windows based GUI control via RS-232 interface for Win-2000/XP/WIN7-32/WIN7-64/WIN8
  • Front panel push buttons
  • IR wireless remote control
  • Third party RS-232 controller (via simple ASCII)
  • Automatic scanning output status via LED show on front panel
  • Simultaneously supports output #2 via output #1
  • Supports IR remote and IR extenders for a distance of up to approx. 1000' (300m) Maximum

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 16x2 HDMI Routing Selector Switch
  • SW-5616 IR Remote Controller
  • SB-100 IR Extender Receiver Connector
  • IR Receiver Cable
  • RS-232 Cable
  • 12V Power Supply
  • 19 " Ear Mount Bracket
  • CD-ROM with Windows GUI and User Manual
  • Shinybow 3 Year Parts & Labor Warranty
