Sachtler DV 12SB Fluid Head with flowtech 100 3-Section Carbon Fiber Tripod and Mid-Level Spreader

flowtech™ 100 Carbon Fiber Tripod by Sachtler & Vinten

The flowtech™100 by Sachtler and Vinten is a revolutionary tripod system that’s designed to be the world’s fastest and most efficient stabilization tool. Its innovative design features specialized hinge locks on top of each leg for swift deployment and fuss-free height adjustments, with simultaneous leg adjustment for even faster operation during demanding shoots. This versatile tripod also allows you to shoot extreme angles with its mid-level spreader, which has four locking positions—20°, 46°, 72°, and extended—for a maximum working height of 61.02” and a minimum of 10.24”. The spreader enables the flowtech™100 to be used in tricky spaces and uneven terrain, but it also gives you the option of using dual-spiked feet (for soft surfaces) or quick-release rubber feet (for slippery surfaces). This 9-pound carbon fiber tripod can accommodate equipment payloads up to 66 pounds and ensures maximum portability with an ergonomic flat-leg design for enhanced torsional strength and easier transport, as well as magnetic locks to keep the legs from snapping open during travel. It has a 100mm bowl for use with a variety of ball head systems and three 3/8"-16 female thread mounts for accessory attachment. Rigorously tested in difficult scenarios and working conditions, the award-winning flowtech™100 is highly robust, versatile, and lightweight, making it the perfect tripod for professional photography and videography.

Revolutionise the way you work with the world’s fastest tripod

flowtech™100 by Sachtler and Vinten - a versatile, lightweight tripod that is easier and faster to deploy and adjust than any other tripod. Performance tested in extreme conditions, flowtech™100 is a revolution in tripod technology, giving the camera operator ultimate versatility and improving their workflow. flowtech™100 is a revolutionary set of two-stage carbon fibre tripod legs with quick release brakes, a mid-level spreader, rubber feet and a payload capacity of 30kg (66lb).

DEPLOY IN AN INSTANT

Unique quick release brakes

flowtech™100 features unique quick release brakes located at the top of the tripod that allow camera operators to easily deploy and adjust the tripod in an instant. All the legs of the tripod can be deployed simultaneously and can quickly adjust to the height that you need and the ground’s surface – eliminating the need to bend over or manually adjust multiple brakes on each individual leg.

LIGHTWEIGHT & EAST TO TRANSPORT

New ergonomic carbon-fibre leg design

Carbon fibre profile makes flowtech™75 lightweight and easy to transport. It’s ergonomically designed to comfortably rest on the camera operator’s shoulder while magnetic locks offer an easy, quick method for locking the legs together during transport. Exceptional torsional stiffness ensures that the tripod doesn’t twist during panning movements.

EXTREMELY LOW AND HIGH SHOTS

Versatile Hinge Lock

flowtech comes with a hinge lock mechanism that gives camera operators ultimate versatility. With the ability to be used with or without a spreader. The hinge lock allows the flowtech100 to be deployed as low as 26 cm (10.2in) and as high as 155 cm (61in) when used without a spreader. This effectively eliminates the need to bring a second set of baby legs to each shoot.

SUPERIOR PERFORMANCE

Performance Tested

Tested in the most punishing environments, flowtech excels in sludge, sand and extreme temperatures. Tried in over 30,000 lab-testing cycles – in which the tripod is repeatedly deployed – and 1.5 million clamp operations on the test endurance rig, flowtech surpasses Sachtler and Vinten’s stringent performance targets.

MID-LEVEL SPREADER

flowtech™100 Carbon Fibre Mid-Level Spreader

For a fast and stable setup in narrow spaces or on uneven terrain, the flowtech100 mid-level spreader has four locking positions for simple setup and fast repositioning. The spreader is included in all flowtech™100 tripod and system packages and available as an optional accessory for flowtech™75.

Carbon Fibre Mid-Level Spreader Position - 20°

Low Mode

2. Carbon Fibre Mid-Level Spreader Position - 46°

Medium Mode

3. Carbon Fibre Mid-Level Spreader Position - 72°

High Mode

Extended Spreader

Spreaded Mode

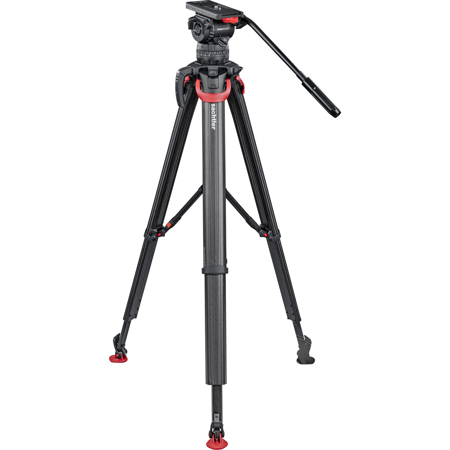

System DV 12 FT MS with flowtech100

100 mm DV 12 system with flowtech100 carbon fibre tripod, carbon fibre mid-level spreader and Touch&Go plate

The Sachtler 100 mm System DV 12 FT MS fluid head with flowtech100 tripod legs offers an incredibly fast and easy set up with the world's fastest deploying tripod system for cameras weighing up to 15 kg / 33 lb. This system is ideally suited for smaller ENG camcorders. As the only head in its class the DV 12 fluid head offers fully functional smooth head drag performance at -40 Degree C to +60 Degree C. The unique flowtech100 tripod is easier and faster to deploy and adjust than any other tripod.

-- DV 12 SB --

The solution for small ENG cameras
The DV 12 SB is ideal for small EB cameras weighing up to 14 kg. As with all EB fluid heads from Sachtler, it boasts the innovative Speedbalance technology for a fast weight compensation and typical practical Sachtler features such as the Touch & Go function, the parking position for spare camera screws and the illuminated spirit level.

-- flowtech100 --

The world's fastest deploying tripod now in 100mm
The award winning flowtech tripod technology offers unique quick release brakes to deploy and adjust your tripod in an instant. The ergonomic carbon fibre leg design offers exceptional torsional stiffness and makes it easy to transport with.

The integrated versatile hinge lock mechanism allows you to capture extremely low and high shots with superior performance and reliability thanks to extensive endurance and environmental testing. flowtech100 is designed for precision shooting and heavier camera payloads up to 30kg / 66lb.

-- flowtech100 Mid-Level Spreader

NEW Carbon Fibre Mid-Level Spreader
For a fast and stable setup in narrow spaces or on uneven terrain. Four locking positions for simple setup and fast repositioning.
