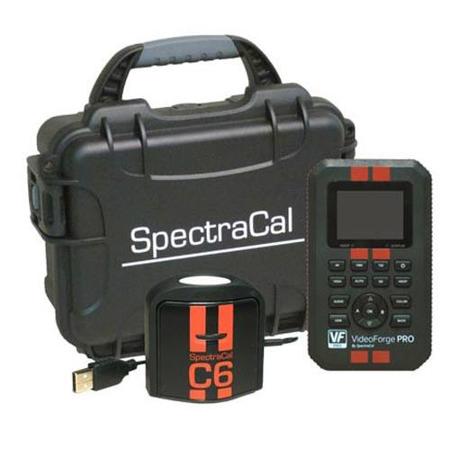

SpectraCal VideoForge PRO 4K HDR Pattern Generator and C6 HDR2000 Colorimeter

VideoForge PRO

Reference 4K/UHD HDR HDMI Test Patterns
The VideoForge PRO outputs highly-accurate, reference-level video test patterns via HDMI and supports resolutions up to 4096x2160 @ 60Hz. Dynamically generate any color patch requested by CalMAN software on the fly, including grayscale, gamut, saturation sweeps and 3D LUT calibration patches. VideoForge Pro contains the very latest HDR and UHDTV technology including HDR10, HLG and Dolby Vision.

• HDMI 2.0 Support. 600 MHz - 2160P at 60 4:4:4 Maximum Resolution
• Dolby Vision, HDR and SDR Calibration Capable
• HDCP Pass/Fail - HDCP 2.2, 1.4 or None Indicator Light - The VideoForge PRO will tell you what HDCP version the TV supports
• Status Light - Instant notification if hot plug detect (HPD) and 5V are active. On the fly indicator for troubleshooting, especially when switching, splitting and extending HDMI
• Deep Color Testing - Up to 36 bit per pixel color depth
• Audio test tones for HDMI audio confidence testing
• A/B memories to store and recall preferred unit configurations
• Portable - Battery Operated. Rechargeable batteries included make field troubleshooting much easier
• Optimized Ergonomics - 2.5" LCD display and simple menu system makes VideoForge PRO very user friendly
• Field upgradable via firmware

Leading-Edge Technology
HDCP 2.2, HDMI 2.0 (a), UHD resolutions up to 60p, BT.2020 (RGB output), up to 12-bit deep color.

Reliable Test Patterns
Accurate and reliable test patterns for precise color measurements.

Rugged Design and Compact Design
Built for daily use by demanding professionals. Compact and lightweight- only twelve ounces. Fits just right in your hand.

Integrated Battery
VideoForge PRO includes a rechargeable battery for one less cable during calibration.

Fast Automation
Completely automated with CalMAN software ensuring fast pattern generation.

Firmware Updates
Firmware updates to VideoForge PRO are always free. Make sure you are using the latest firmware to take advantage of all the new features.

C6 HDR2000 Colorimeter
The SpectraCal C6 HDR2000 Colorimeter is one of the most advanced light measurement devices available, providing the accuracy you need for the most demanding calibration. The C6 HDR2000 Colorimeter is field-upgradeable with CalMAN, meaning that supported display technologies are automatically updated when the device connects with the software. Every C6 HDR2000 colorimeter sold is first certified in SpectraCal's calibration lab Every C6 HDR2000 Colorimeter sold is first certified in SpectraCal's calibration lab and shipped with a NIST (National Institute of Standards and Technology) certificate of accuracy.

• Supports all display technologies, HDR, including plasma, LCD LED, front-projection and OLED
• Field upgradable for new display technologies and calibration tables
• Advanced low-light handling
• Complete spectral characterization technology
• NIST certified in SpectraCal's calibration lab prior to shipping
• Luminance accuracy at a range up to 2000 cd/m2
• Advanced light and color filters
• Sealed optics and sensors for increased lifespan
• Off-angle light compensation
• Build-in ambient light diffuser and tripod mount threading

Precise Accuracy
Advanced filters provide unparalleled accuracy for the price point.

Accelerated Speed
Unique firmware provides exceptionally fast readings when used with CalMAN.

Increased Lifespan
Sealed optics and filters ensure accuracy and reduce drifting over time.

High Dynamic Range
Luminance accuracy up to 2000 cd/m2 to complement CalMAN's HDR capabilities.

Advanced Handling
Excellent low-light handling for detailed black-level calibrations.

Convenient Versatility
Includes built-in ambient light diffuser as well as tripod extension hardware.

Advanced Technology
Currently has support for 26 displays types, including OLED and GB-R LED. More added regularly. We strive to support new technologies as they are introduced.

NIST Certified
Every C6-HDR colorimeter receives a National Institute of Standards and Technologies (NIST) certificate of accuracy.

Field-Upgradeable
Calibration tables and supported display technologies are automatically updated when the C6-HDR colorimeter connects with CalMAN software.
