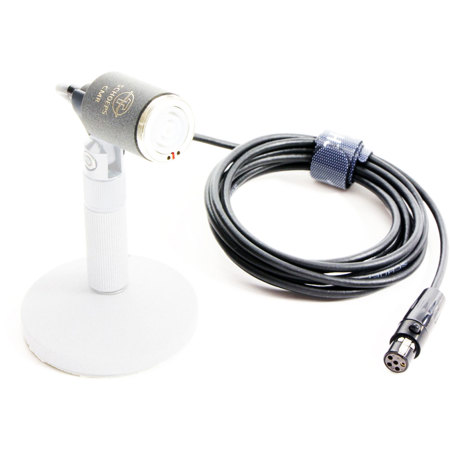

Schoeps CMR Microphone Amplifier with 5m (16.40') Cable for Pocket Transmitters, Unterminated, 15 Ohms Output Impedance, 4-10 V Operating Voltage, Matte Gray

SKU: SCCMRG5METER

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Schoeps CMR Mic Amplifier with 5m (16.40') Cable, Unterminated, Matte Gray Specifications

  • Operating voltage

    4 - 10 V

  • Current consumption

    ca. 1 mA

  • Sensitivity

    ca. 0.6 times the value as measured with a standard CMC microphone amplifier. For example with the MK 4 cardioid, the sensitivity is about 8 mV/Pa, the maximum sound pressure is 130 dB SPL and the equivalent input noise is 29 dB CCIR or 18 dB A-weighted.

  • Frequency response

    The frequency response characteristic will be that of the capsule which is chosen

  • Maximum output voltage with 20kOhms

    Load impedance: 900 mV (-1 dBV)

  • Maximum output voltage with 2kOhms

    Load impedance: 560 mV (-5 dBV)

  • output impedance:

    at 1kHz: 15 Ohms

  • Connector

    The connector is wired to the customer's specifications

  • Dimensions (L x Dia.)

    38 x 20mm (1.49 x 0.78")
    output Cable:
    Standard Length: 5m (16.40')
    Diameter: 3mm (0.11")

  • Weight

    25g (0.88oz)

About Schoeps CMR Mic Amplifier with 5m (16.40') Cable, Unterminated, Matte Gray

Just imagine the superior sound quality and professional performance you can achieve with the Schoeps CMR Matte Gray Microphone Amplifier. This high-quality amplifier, complete with a 5m (16.40') cable, is specifically designed for pocket transmitters and is unterminated for maximum versatility.

This durable microphone amplifier is compatible with any Colette series capsule, excluding the BLM 03 C active boundary layer capsule. It operates on a low supply current, similar to electret microphones, yet delivers a low output impedance of 15 Ohms. This makes it suitable for a wide range of recording devices, providing you with the flexibility you need in a professional setting.

One of the standout features of the Schoeps CMR Microphone Amplifier is its exceptional immunity to interference, ensuring clear, uninterrupted sound. But what truly sets this amplifier apart is its renowned sound quality, a hallmark of the Schoeps brand.

The amplifier comes with a robust 5m (16.40') cable that is reinforced with Kevlar fibers for added durability. It remains flexible even at low temperatures and resists twisting, making it a reliable choice for demanding environments.

The CMR Microphone Amplifier is designed to operate with devices that provide 1 mA for a microphone at 4 Volts or higher. While a Schoeps Colette-series condenser microphone typically consists of a CMC microphone amplifier and a Schoeps Colette series microphone capsule, powered by a 12-Volt or 48-Volt phantom source, this isn't always possible when using a pocket transmitter. This is where the CMR Microphone Amplifier shines, providing the power and performance you need in film and television production.

In a stylish matte gray finish, the Schoeps CMR Microphone Amplifier combines functionality with aesthetics, making it a top choice for professionals in the audio and video industry.

Schoeps CMR Mic Amplifier with 5m (16.40') Cable, Unterminated, Matte Gray Features

  • Specially designed for using Schoeps "Colette" series microphone capsules with pocket transmitters
  • Low power consumption: only about 1/20 to 1/48 that of a phantom-powered microphone
  • Low-impedance, unbalanced output

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Professional-grade CMR Microphone Amplifier by Schoeps for enhanced audio capture
  • 5m (16.40') Kevlar-reinforced, unterminated cable for flexibility and durability
  • Low output impedance of 15 Ohms compatible with a wide range of devices
  • High-quality sound with excellent immunity to interference
  • Operates effectively on 4-10V with devices providing 1 mA or more
  • Stylish matte gray finish for a sleek, professional appearance

What's in the box:

  • Schoeps CMR Microphone Amplifier with 5m (16.40') Cable & Unterminated
  • Schoeps 2 Year Limited Warranty
