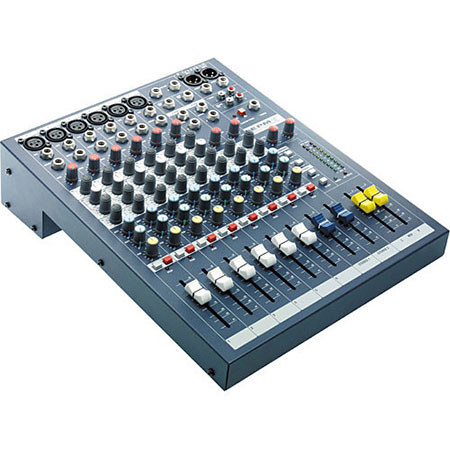

Soundcraft EPM6 6 Mono + 2 Stereo Channel Recording & Live Sound Audio Console

The Soundcraft EPM6 6 Mono + 2 Stereo Channel Recording & Live Sound Audio Console shall be a self-contained unit, complete with input, output and master sections and an integral switched mode power supply capable of operating under various AC voltage inputs from 90VAC to 240V AC. The audio mixing console shall have 6 mono input channels, two stereo input channels and a stereo mix master output. It shall be possible to have the audio mixer mounted on a desktop or rack-mounted through optional rack mounting ears and shall be of a rugged steel paneled construction. All jack sockets shall be of a metal construction.

The mono input channel shall have the following - an electronically balanced wide range mic and line input on XLR and 1/4" jack connectors with continuously variable sensitivity between - 60dBu and -5dBu, globally switched 48V phantom power, a 3-band equalizer with shelving HF and LF controls at 12kHz and 60Hz with 15dB of cut or boost and an MF control continuously variable from 140Hz to 3kHz with a Q of 0.77 and cut or boost of 15dB. Two auxiliary sends shall be provided, with individual level controls. Each Aux shall be individually globally switchable to be pre-fade or post-fade sends. Routing to the mix output shall be in stereo via a Pan control with - 4.5dB centre-drop, along with Mute and SOLO (PFL) functions. A Peak LED shall warn of signals within 6dB of clipping. There shall be a pre-EQ insert point on a 1/4" TRS jack and a 60mm fader shall control the overall channel signal level.

The stereo input channel shall have the following - Line input connectors on electronically balanced 1/4" jack connectors with input gain continuously variable from 0 to +22dB. There shall be a two-band equalizer with HF and LF shelving controls at 12kHz and 60Hz with cut or boost of 15dB. Two auxiliary sends shall be provided, both with individual level controls and feeding a mono sum of the stereo channel to the Aux busses. Each Aux shall be individually globally switchable to be pre-fade or post-fade sends. Routing to the mix output shall be in stereo via a Balance control, along with Mute and SOLO (PFL) functions. A Peak LED shall warn of signals within 6dB of clipping and a 60mm fader shall control the overall channel signal level.

The Master section shall contain the following facilities - a stereo playback input and record output, a stereo mix output, monitor outputs, output metering, a 1/4" headphone output mounted on the console front panel, 2 Aux master outputs and a global 48V phantom power switch with LED. The Playback inputs shall be routed to the Mix outputs via a gain control when a PLAYBACK TO MIX button is pressed and to the monitor outputs when a MONITOR PLAYBACK is pressed. Ten-segment LED bargraph meters shall be used to display L-R output levels, which shall be replaced by an active SOLO signal. The main stereo mix output shall be controlled by 100mm faders and fed to electronically balanced XLR connectors. There shall be Mix Inserts on 1/4" jack connectors.

The two Auxiliary Master outputs shall be fed to electronically balanced 1/4" jack connectors. The output level of the 1/4" jack headphone and monitor feeds shall be variable and may be replaced automatically by any SOLO signal.
