Schecter Diamond-J 5 Plus 5-String Electric Bass Guitar, 20 Frets, Thin 'C' Shape Neck, Maple Fretboard, Active Pickup, Aged Natural

The New Redesigned Schecter Diamond-J Plus Bass
For 2015 we took the Diamond-J shape and redesigned it from the ground up to have a Vintage look while having top of the line electronics, versatile tone possibilities and modern construction. Starting with the Seymour Duncan Pickups, the Bridge & Neck are the Quarter Pound J 'SJ5-3'. Developed for the bassist who needs the slammin' output of the Hot but with even stronger attack. The quarter-inch pole pieces and intense windings deliver a full response with great sustain.

• The Bolt-on Neck Joint was reshaped and contoured for smoother access to the higher frets.
• The Neck is bolted down with 6 Bolts for a stronger Neck/Body bond.
• Carbon Fiber reinforcement rods are used in the neck to strengthen the neck relief and preventing any neck shifting.
• The Fretboard features a 12" radius adding a Modern roundness to the feel.
• The Wilkinson WBBC bridge was Customized with a 'String-Thru Body' design for a Vintage look & sound and Modern String-Thru for added String Resonance & increased Sustain.
• Grover 142 Series 'Vintage' Bass tuners. Precision and durability with classic styling make these bass machine heads ideal for a Vintage look and Modern functions. The die cast housing is a sturdy foundation for maintaining center lines of the worm and gear. A fixed bearing surface in the housing creates a smooth tuning surface for easy tuning and 22:1 gear ratio. The safety string post and "elephant ear" button provide utility and a vintage look.

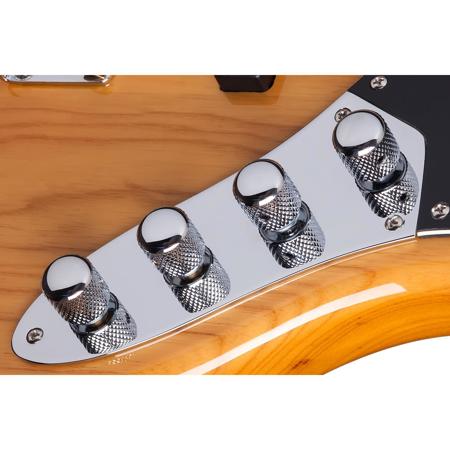

The Master Volume knob features a 'Phase Switch' Push-Pull pot wired for the Quarter Pound J Bridge pickup. In 'Down position' the Seymour Duncan 'SJ5-3' is wired 'In Phase' for normal tone when combined with the Neck pickup. In 'Up position' the Bridge pickup is wired 'Out-of-Phase' when combined with the Neck pickup. This produces an original nasally honky tone with lots of emphasis on the Midrange. Previously a difficult tone to work with because the Low-end is cut until now since adding the Seymour Duncan 2-Band Active EQ with 18v system the Bass can be boosted creating a very unique tone that can be used for Tailoring your original sound.

We were looking for the most versatile tone possibilities so we developed this bass with a 4-Way Rotary Pickup Selector Switch. This gives you the option to combine the Bridge and Neck pickup in 'Series' or in 'Parallel'.

• Position 1- Bridge Pickup
• Position 2- Bridge & Neck in 'Parallel'. This is the normal side by side wiring method for two bass pickups. This position retains brilliance and additional clarity on the high end. The Neck is RW/RP for hum canceling when both pickups are used together
• Position 3- Bridge & Neck in 'Series'. This humbucker wiring method adds 30% Output compared to 'Parallel' adding a fuller and more powerful sound
• Position 4- Neck Pickup

We took these wiring features and then added the Seymour Duncan 2-Band Active EQ with 18v system for even more tone shaping versatility. This enables the player to add or subtract EQ at center frequencies voiced specifically for electric bass. The lows are deep, clear and tight. There are two treble 'dip switch' frequency centers to choose from. The lower setting is perfect for adding growl and bite to traditional P, J and MM tones. The higher setting provides crystal clear top end to modern-sounding, full-frequency bass tones with punishing clarity without any brittleness. After we got the Electronics tricked out we worked on the Construction of the bass.
