Sennheiser ADN CU1-US Central Unit For 40 ADN Delegates, Integrated PC With Pre-Installed Control Software

SKU: SEADNCU1US

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sennheiser ADN CU1 Specifications

  • Frequency Response

    100 Hz to 14 kHz

  • THD

    < 0,01% A-weighted at +6 dBV IN, OUT

  • Signal to Noise Ratio

    > 80 dB A-weighted at +18 dBV

  • Power Consumption

    245 W

  • Input Voltage

    -18 dBu to 18 dBu (XLR IN)

  • Output Voltage

    Maximum +10 dBV

  • Output Level

    11 dBu, maximum

  • Operating Temperature

    41 to 122 Degree F (5 to 50 Degree C)

  • Dimensions (L x W x H)

    16.4 x 3.94 x 13.58" (417 x 100 x 345mm)

  • Weight

    14.3 lb (6.5kg)

  • UPC Code

    615104227637

About Sennheiser ADN CU1

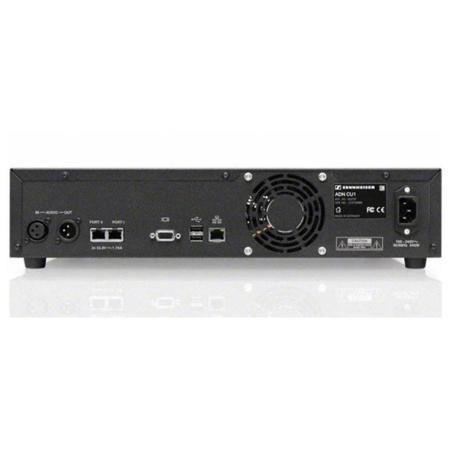

The digital discussion central unit ADN CU1 powers and controls up to 40 (depending on cable length) connected delegate and chairperson units. It offers full configuration in a quick and easy way over the menu display in several languages. Alternatively the integrated software package 'Conference Manager' can be used directly on the CU1 by connecting a screen, mouse and keyboard. The intuitive workflow of the conference manager allows a fluent monitoring and control of the conference. With its low-noise fan the central unit can be used directly in the meeting without disturbing it.

Sennheiser ADN CU1 Features

  • Supplies up to 40 and controls up to 400 discussion units
  • USB Conference recording
  • Graphical user menu in 13 languages
  • Electronically balanced XLR In- and Ouput
  • Open Media Control Protocol over Ethernet (compatible to Crestron and other brands)
  • Permanent malfunction monitoring and error diagnostics
  • Low-noise fan for in-room use
  • Integrated PC with pre-installed control software

Key Features

  • Supplies up to 40 and controls up to 400 discussion units
  • USB Conference recording
  • Graphical user menu in 13 languages
  • Electronically balanced XLR In- and Ouput
  • Open Media Control Protocol over Ethernet (compatible to Crestron and other brands)
  • Permanent malfunction monitoring and error diagnostics

What's in the box:

  • ADN CU1 Central Unit
  • Main Cable EU/UK/US
  • ADN Conference Manager
  • DVD-ROM with Conference Manager Software and Manuals
  • Quickguide
  • Sennheiser 2 Year Limited Warranty
