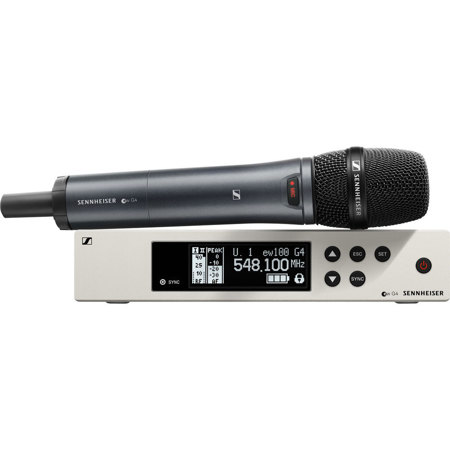

Sennheiser ew 100 G4-935-S Wireless Vocal Set with Handheld Transmitter, MMD 935-1 Microphone Head, A1: 470 - 516 MHz

SKU: SEW1G4935SA1 MFR: EW 100 G4-935-S-A1
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless handheld microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range up to 42 MHz, minimizing dropouts.
  • The ew 100 G4-935-S vocal set features a robust handheld transmitter for durability and long-lasting performance.
  • Achieve exceptional sound quality with the MMD 935-1 microphone head, designed for clear vocal reproduction.
  • This wireless microphone system's true diversity receiver ensures a stable signal, ideal for any performance venue.
  • Benefit from up to 8 hours of battery life, making this wireless microphone perfect for extended events and shows.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-935-S Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 516 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    low: 5 dB microV
    middle: 15 dBmicroV
    high: 25 dB micro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48" x 8.35" x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 516 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99lb (450g) (incl. batteries)

MMD 935-1

Jump to...
  • Transducer principle

    Dynamic

  • Sensitivity

    2.5 mV/Pa

  • Sound pressure level

    154 dB SPL

  • Pick-up pattern

    cardioid

  • UPC Code

    615104368101

About Sennheiser ew 100 G4-935-S

How can you elevate your live performances or speaking engagements The ew 100 G4-935-S Wireless Vocal Set with Handheld Transmitter and MMD 935-1 Microphone Head, operating in the A1 frequency range of 470 - 516 MHz, is the answer. This high-quality, professional-grade wireless system from Sennheiser, a reputable brand known for its innovative and reliable audio equipment, is designed for those who sing, speak, or play instruments.

This durable system offers up to 42 MHz tuning bandwidth in a stable UHF range, allowing for fast, simultaneous setup of up to 12 linked systems. The state-of-the-art live sound is delivered through Sennheiser's renowned e 935 and e 945 capsules, housed on a lightweight aluminum transmitter with an integrated mute switch.

The system includes a stationary receiver and a handheld transmitter with a microphone head, operating within twelve UHF frequency ranges, each with a switching bandwidth of up to 42 MHz. The receiver is menu-driven with a backlit LCD display, showing essential information like current frequency, frequency bank and channel number, RF level metering, AF level metering, lock status, pilot tone evaluation, muting function, and the battery status of the associated transmitter.

The receiver also features an integrated guitar tuner and a sound check mode, making it a versatile tool for any live performance. For easy installation and organization, the product comes with a rack-mount receiver that can be connected to a sound system or PA system to amplify the audio signal.

The handheld vocal radio microphone is equipped with a mute switch and a backlit LCD display, showing essential information like current frequency, frequency bank and channel number, AF level metering, transmission status, lock status, pilot tone transmission, muting function, and battery status. The radio microphone parameters can be configured in the associated receiver's menu and synchronized with the radio microphone via an integrated infrared interface.

This wireless vocal set is not just a microphone; it's a comprehensive solution for delivering high-quality, professional sound in any live performance or speaking engagement.

Sennheiser ew 100 G4-935-S Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
  • State-of-the-art live sound featuring Sennheisers renowned e 935 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 330 feet
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless handheld microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range up to 42 MHz, minimizing dropouts.
  • The ew 100 G4-935-S vocal set features a robust handheld transmitter for durability and long-lasting performance.
  • Achieve exceptional sound quality with the MMD 935-1 microphone head, designed for clear vocal reproduction.
  • This wireless microphone system's true diversity receiver ensures a stable signal, ideal for any performance venue.
  • Benefit from up to 8 hours of battery life, making this wireless microphone perfect for extended events and shows.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SKM 100 G4-S Handheld Transmitter
  • MMD 935-1 Microphone Head
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
