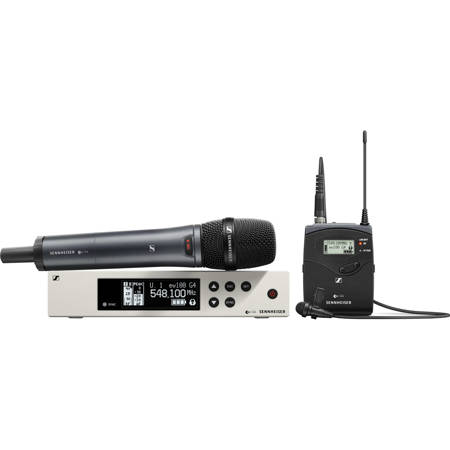

Sennheiser ew 100 G4-ME2/835-S Wireless Combo Set with Bodypack & Handheld Transmitter, ME 2 Lav Mic, A1: 470 - 516 MHz

SKU: SEW1G4M835A1 MFR: EW 100 G4-ME2/835-S-A1
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, ideal for live performances.
  • Achieve crystal-clear audio with low latency, perfect for professional presentations and public speaking.
  • Enjoy freedom of movement with an exceptional wireless range, great for dynamic stage performances.
  • This durable handheld wireless microphone is built to last, ensuring reliability for every event.
  • The included ME 2 lavalier microphone offers discreet audio capture for interviews and film projects.
  • Benefit from easy setup and operation, making this wireless combo set perfect for both beginners and pros.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-ME2/835-S Specifications

Rx (EM 100 G4): RF Characteristics

Rx (EM 100 G4): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 516 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    Up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    low: 5 dB microV
    middle: 15 dBmicroV
    high: 25 dB micro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Rx (EM 100 G4): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Rx (EM 100 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48 x 8.34 x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Tx (SK 100 G4): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 516 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Tx (SK 100 G4): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm, unbalanced / 1 Mohm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Tx (SK 100 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. 3.22 x 2.51 x 0.94" (82 x 64 x 24mm)

  • Weight

    Approx. 5.64 oz (160g) (include batteries)

ME 2 Lavalier

Jump to...
  • Transducer principle

    pre-polarized condensor microphone

  • Pick-up pattern

    Omni-directional

  • Sensitivity (free field, no load) (1 kHz

    20 mV/Pa

  • Max. SPL at 1 kHz

    130 dB

  • Frequency response

    50 to 18,000 Hz (ME 2-II)
    30 to 20,000 Hz (ME 2-US)

  • Equivalent noise level A-weighted

    36 dB (DIN IEC 651)

  • Connector

    3.5 mm jack

  • Cable length

    Approx. 1.60 m

  • Supply voltage

    7.5 V

Tx (SKM 100 G4-S): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 516 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Tx (SKM 100 G4-S): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Tx (SKM 100 G4-S): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MMD 835-1

Jump to...
  • Transducer principle

    Dynamic

  • Sensitivity

    2.1 mV/Pa

  • Sound pressure level

    154 dB SPL

  • Pick-up pattern

    Cardioid

  • UPC Code

    615104368262

About Sennheiser ew 100 G4-ME2/835-S

Under the banner of Sennheiser, a brand synonymous with high-quality audio equipment, the ew 100 G4-ME2/835-S Wireless Combo Set is a professional-grade, versatile, and reliable solution for those who sing, play instruments, or speak in various settings. This robust system is designed for superior performance in live events, recording studios, and broadcasting environments.

The set includes a dynamic handheld microphone e 835, a sturdy bodypack transmitter, and an easy-to-clip-on ME 2-II microphone, known for its outstanding speech intelligibility. This combination ensures a seamless audio experience, making it an ideal choice for daily use on stage.

Operating within twelve UHF frequency ranges, the system offers a tuning bandwidth of up to 42 MHz, ensuring a stable UHF range. It allows for the fast, simultaneous setup of up to 12 linked systems, providing flexibility and convenience for users. The system's receiving frequencies are 1,680 per range and are tunable in 25 kHz steps, offering a wide range of options for optimal sound quality.

The receiver is user-friendly, featuring a backlit LCD display that shows essential information such as current frequency, frequency bank and channel number, RF level metering, AF level metering, lock status, pilot tone evaluation, muting function, and the battery status of the associated transmitter. An auto-lock feature is included to prevent accidental changes to settings, ensuring consistent performance.

The receiver also features a balanced XLR-3M audio output and an unbalanced 1/4" (6.3 mm) audio output, providing versatility in connectivity. It incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch, enhancing the audio quality and reducing noise.

The bodypack transmitter and the handheld vocal radio microphone are both equipped with a backlit LCD display and an auto-lock feature, ensuring ease of use and reliability. They are powered by either two 1.5 V AA size batteries or one Sennheiser BA 2015 rechargeable accupack, providing flexibility in power options.

In conclusion, the ew 100 G4-ME2/835-S Wireless Combo Set is a high-quality, professional, and versatile audio solution that delivers reliable performance in a variety of settings. Its innovative features and durable construction make it a preferred choice for professionals in the music and entertainment industry.

Sennheiser ew 100 G4-ME2/835-S Features

  • Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators
  • Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2 Lavalier-II (omni-directional) with high speech intelligibility for daily use on stage
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (330')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, ideal for live performances.
  • Achieve crystal-clear audio with low latency, perfect for professional presentations and public speaking.
  • Enjoy freedom of movement with an exceptional wireless range, great for dynamic stage performances.
  • This durable handheld wireless microphone is built to last, ensuring reliability for every event.
  • The included ME 2 lavalier microphone offers discreet audio capture for interviews and film projects.
  • Benefit from easy setup and operation, making this wireless combo set perfect for both beginners and pros.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SK 100 G4 Bodypack Transmitter
  • SKM 100 G4-S Handheld Transmitter
  • MMD 835-1 Microphone Head
  • ME 2 Lavalier Omnidirectional Microphone
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 4x AA Batteries
  • Antennen
  • RJ 10
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
