J50A: 572 - 616MHz
328' (99.98m)
Tuning Step Size: 25 kHz, varies by region
Greater than 70 dB, typical
-97 dBm at 10-5 BER
Less than 2.9 ms
QLXD1: 20 Hz - 20 kHz (+/-1 dB)
QLXD2: Dependent on microphone type
System Gain at +10: Greater than 120 dB, A-weighted, typical
-12 dBFS Input, System Gain at +10: Less than 0.1%
System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
0 to 122 deg. F (-18 to 50 deg. C)
-20 to 165 deg. F (-29 to 74 deg. C)
Steel
Greater than 80 dB, typical
BNC
50 ohms
-18 to +42 dB in 1 dB steps
1/4" (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
1/4" (6.35 mm), 100 ohms (50 ohms Unbalanced)
XLR: 100 ohms
1/4" (6.35 mm), +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV Mic/Line Switch: 30 dB pad
1/4" (6.35 mm), Yes
XLR: Yes
Single Port Ethernet 10/100 Mbps
DHCP or Manual IP address
328' (99.98m)
12 VDC at 0.4 A, supplied by external power supply (tip positive)
Live Vocals
Presentation
Theater
Instrument
20 Hz to 20 kHz
J50A: 572 - 616MHz
Cast aluminum
0 to 21 dB (in 3 dB steps)
Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
At 10 mW:
Shure SB900A: up to 10 hours
Alkaline: up to 9 hours
4-pin male mini connector (TA4M)
Unbalanced
1 MOhms
8.5 dBV (7.5 Vpp) (1 kHz at 1% THD)
-120 dBV, A-weighted, typical
System Gain Setting >= +20
SMA
1/4 wave
50Ohms
Less than 200 kHz
Shure proprietary digital
1 mW or 10 mW
328' (99.98m)
Electret Condenser
40 Hz to 20,000 Hz
Unidirectional (Cardioid)
2400Ohms at 1 kHz
-59.0 dBV/Pa
55 dB at 1 kHz
153.0 dB, 1000Ohms load, at 1% THD
114.0 dB at 1 kHz, 1000Ohms load
39 dB, Typical, A-Weighted
+5 V DC (nominal), 10 V maximum (DC bias)
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
45"
TA4F
Transmitter: 86 x 66 x 23mm (3.39 x 2.60 x 0.91")
Receiver: 41 x 197 x 151mm (1.61 x 7.76 x 5.94")
Transmitter: 138g (4.87 oz), without batteries
Receiver: 1.71 lbs (0.78kg)
Microphone: 72g (2.54 oz)
042406540391

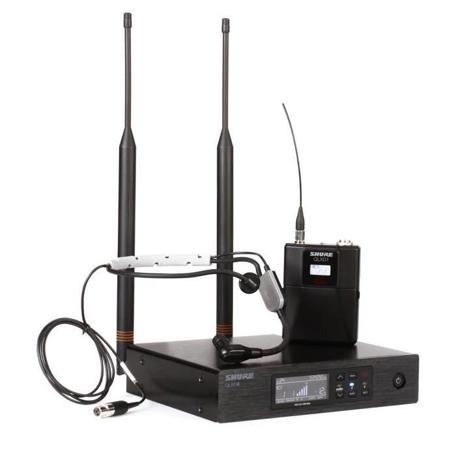

Featuring the SM35 headset microphone, QLXD14/SM35 combines professional features with simplified setup and operation. The QLXD14/SM35 Headworn Wireless Microphone System is part of the QLX-D wireless systems family. QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels and government offices with conferencing spaces; schools, houses of worship and live performance spaces.
-- QLXD4 Digital Wireless Receiver --
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.
-- QLXD1 Wireless Bodypack Transmitter --
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues and houses of worship.
-- SM35 Performance Headset Condenser Microphone --
Durable cardioid condenser microphone in a comfortable headset for hands-free vocal performance. Ideal for multi-instrumentalists. The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations or arena tours. Available in standard TA4F (TQG) connectivity, the SM35 seamlessly integrates into any Shure wireless headset system.
