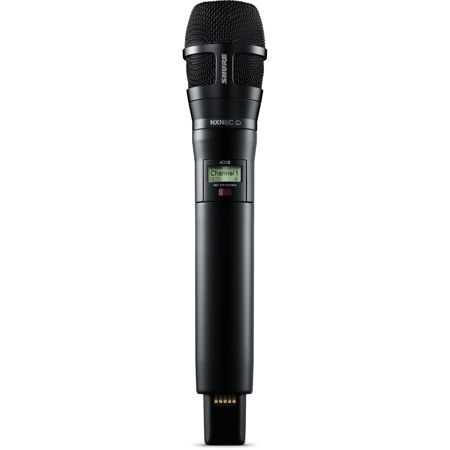

Shure ADX2/N8 Digital Wireless Handheld Tx w/N8 Mic Capsule, G57: 470-616MHz Black Cardioid

SKU: SHADX2CBG57 MFR: ADX2/N8CB=-G57
Earn VIP Reward Points

Key Features

  • Rugged metal construction with sleek black or nickel finish for durability and style
  • Wide tuning range of up to 184 MHz with ShowLink remote control for seamless performance
  • Nexadyne 8 cardioid/supercardioid dynamic microphone capsule for superior sound clarity
  • AES 256-bit encryption ensures secure transmission and interference protection
  • Interchangeable Shure microphone cartridges & backlit LCD for easy navigation & control
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ADX2/N8 Digital Wireless Handheld Tx w/N8 Mic Capsule, G57: 470-616MHz Specifications

General

General

Jump to...
  • Available Colors

    Black, Nickel

ADX2: Audio Input

Jump to...
  • Configuration

    Unbalanced

ADX2: RF Output

Jump to...
  • Frequency Range

    G57: 470-616MHz

  • Antenna Type

    Dual Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Channel-to-Channel Spacing

    Standard Mode: 350 kHz
    High Density Mode: 125 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 40 mW

  • Specific Absorption Rate (SAR)

    < 0.19 W/kg

ADX2: Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

ADX2: Physical

Jump to...
  • Material

    Cast Aluminum

  • Mic Offset Range

    -12 to 21 dB (In 1 dB steps)

  • Battery

    Shure SB920A Rechargeable Li-Ion

  • Battery Runtime @ 10 mW

    Shure SB920A: up to 9 hours

  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    Without Battery: 11.9 oz (338g)

N8 Microphone Capsule

Jump to...
  • Available Polar Patterns

    Cardioid, Supercardioid

  • Material

    Die-cast aluminum with black paint

  • Type

    Dynamic (moving coil)

  • Frequency Response

    50 to 20.000 Hz

  • Output Impedance

    Cardioid: 300 Ohm
    Supercardioid: 450 Ohm

  • Sensitivity Open circuit voltage

    @ 1 kHz, typical
    Cardioid: -54,0 dBV/Pa (2,00 mV) 1 Pa = 94 dB Schalldruckpegel
    Supercardioid: -51,0 dBV/Pa (2,81 mV) 1 Pa = 94 dB Schalldruckpegel

  • Connector

    Three-pin professional audio (XLR), male

  • Weight

    Cardioid: 910 oz (258g)
    Supercardioid: 103 oz (294g)

  • UPC Code

    042406833523

About Shure ADX2/N8 Digital Wireless Handheld Tx w/N8 Mic Capsule, G57: 470-616MHz

Are you in search of a high-performance digital wireless handheld transmitter that combines cutting-edge technology with exceptional audio clarity? Look no further than the ADX2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule, designed to meet the rigorous demands of professional vocal performances. This transmitter, featuring a rugged metal construction and available in a sleek black or nickel finish, is equipped with the innovative Nexadyne 8 cardioid/supercardioid dynamic microphone capsule, ensuring superior sound quality and durability.

The ADX2/N8 transmitter boasts a wide tuning range of up to 184 MHz, providing robust interference protection and advanced recharge capabilities. Its streamlined design is complemented by the ShowLink remote control feature, allowing for real-time parameter adjustments directly from the booth. This ensures seamless performance with automatic input staging for optimal gain settings and diversity ShowLink-enabled remote transmitter control, which also facilitates automatic interference avoidance.

Security is paramount with the ADX2/N8, as it supports AES 256-bit encryption for secure transmission. The system offers a remarkable 100-meter (300 feet) line-of-sight operating range and selectable modulation modes, optimizing performance for either spectral efficiency or audio quality. With switchable power levels of 2/10/40 mW (region dependent), the transmitter is versatile enough to meet various performance needs.

The Nexadyne 8 Dynamic Vocal Microphone Capsule, integral to this system, features Shure's patented Revonic dual-engine transducer technology. This technology employs two precisely calibrated transducers to deliver optimal performance, resulting in natural and vivid clarity with minimized mechanical and handling noise. The capsule is available in both cardioid and supercardioid polar patterns, providing clean and natural vocals that reach every corner of the venue.

Designed with user convenience in mind, the ADX2/N8 includes interchangeable Shure microphone cartridges, a backlit LCD with an intuitive menu, and controls that are easy to navigate. The transmitter's power is supplied by Shure SB920A rechargeable batteries, offering up to 9 hours of runtime with precision metering and zero memory effect. External charging contacts allow for docked charging, ensuring you're always ready for the next performance.

The Nexadyne 8 microphone capsule is available in black (RPW200 for cardioid, RPW204 for supercardioid) or nickel (RPW202 for cardioid, RPW206 for supercardioid) finishes, and comes with a protective zipper case, mic clip, and brass stand adapter. Its dent-resistant hardened grille and XLR connection further enhance its reliability and ease of use. Compatible with all Shure handheld transmitters featuring interchangeable microphone capsules, the ADX2/N8 is the epitome of innovation and reliability, making it an indispensable tool for any professional audio setup.

Shure ADX2/N8 Digital Wireless Handheld Tx w/N8 Mic Capsule, G57: 470-616MHz Features

  • Up to 9 hours of runtime with SB920A rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Rugged metal construction with sleek black or nickel finish for durability and style
  • Wide tuning range of up to 184 MHz with ShowLink remote control for seamless performance
  • Nexadyne 8 cardioid/supercardioid dynamic microphone capsule for superior sound clarity
  • AES 256-bit encryption ensures secure transmission and interference protection
  • Interchangeable Shure microphone cartridges & backlit LCD for easy navigation & control

What's in the box:

  • Shure ADX2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule
  • 2x SB920A Rechargeable Battery
  • Threaded Adapter
  • Swivel Adapter
  • WA371 Mic Clip
  • Zipper Bag
  • Shure 2 Year Limited Warranty
