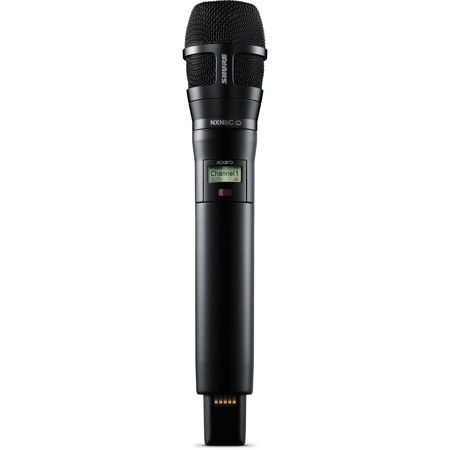

Shure ADX2FD/N8 Digital Wireless Handheld Tx with N8 Mic Capsule,G57: 470-608MHz Black Cardioid

SKU: SHADX2FCBG57 MFR: ADX2FD/N8CB=-G57
Earn VIP Reward Points

Key Features

  • Advanced Frequency Diversity for uninterrupted audio transmission
  • Wide 184 MHz tuning range with robust interference protection
  • ShowLink remote control for real-time parameter adjustments
  • Nexadyne 8 capsule with Revonic dual-engine transducer technology
  • Durable black/nickel metal construction with interchangeable Shure cartridges
  • AES 256-bit encryption for secure wireless transmission
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ADX2FD/N8 Digital Wireless Handheld Tx with N8 Mic Capsule,G57: 470-608MHz Specifications

General

General

Jump to...
  • Available Colors

    Black, Nickel

ADX2FD: General

Jump to...
  • Material

    Cast Aluminum

  • Gain Offset Range

    -12 to 21 dB (in 3 dB steps)

  • Frequency Range

    G57: 470-608MHz

  • Battery

    SB920A Rechargeable Lithium-Ion

  • Battery Run Time @10 mW

    Single-Carrier Mode: up to 9 hours
    Frequency Diversity: up to 6.5 hours

ADX2FD: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL, Typical (SM58) (1 kHz at 1% THD)

ADX2FD: RF Output

Jump to...
  • Antenna Type

    Integrated Dual-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Channel-to-Channel Spacing

    Standard Mode: 350 kHz
    High-Density Mode: 125 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
    Frequency Diversity Mode: 2 x 20 mW

  • Specific Absorption Rate (SAR)

    <0.21 W/kg

ADX2FD: Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

ADX2FD: Physical

Jump to...
  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    Without Battery: 11.9 oz (338g)

N8 Microphone Capsule

Jump to...
  • Available Polar Patterns

    Cardioid, Supercardioid

  • Material

    Die-cast aluminum with black paint

  • Type

    Dynamic (moving coil)

  • Frequency Response

    50 to 20.000 Hz

  • Output Impedance

    Cardioid: 300 Ohm
    Supercardioid: 450 Ohm

  • Sensitivity Open circuit voltage

    @ 1 kHz, typical
    Cardioid: -54,0 dBV/Pa (2,00 mV) 1 Pa = 94 dB Schalldruckpegel
    Supercardioid: -51,0 dBV/Pa (2,81 mV) 1 Pa = 94 dB Schalldruckpegel

  • Connector

    Three-pin professional audio (XLR), male

  • Weight

    Cardioid: 910 oz (258g)
    Supercardioid: 103 oz (294g)

  • UPC Code

    042406834605

About Shure ADX2FD/N8 Digital Wireless Handheld Tx with N8 Mic Capsule,G57: 470-608MHz

Overcome the challenges of live performance with the ADX2FD/N8 Digital Wireless Handheld Transmitter, featuring the advanced N8 Microphone Capsule. This sleek, metal transmitter, available in a sophisticated black/nickel finish, integrates cutting-edge technology to deliver exceptional audio quality and reliability. The ADX2FD/N8 is equipped with Frequency Diversity, allowing simultaneous transmission on two independent frequencies, ensuring seamless and uninterrupted audio, even in mission-critical applications. With a wide tuning range of up to 184 MHz, this transmitter offers robust interference protection and advanced recharge capabilities, making it a top choice for professionals.

The ShowLink remote control feature enables real-time parameter adjustments directly from the booth, enhancing flexibility and control during performances. The ADX2FD/N8 supports a frequency range of 20 Hz to 20 kHz with a flat frequency response, ensuring clear and natural sound reproduction. It also includes AES 256-bit encryption for secure transmission and offers a digital output of over 125 dB, A-weighted, via Dante, AES3, and AES67.

Designed for versatility, the transmitter features interchangeable Shure microphone cartridges and a backlit LCD with an intuitive menu and controls. Its rugged metal construction ensures durability, while menu and power lockout functions prevent accidental changes during use. The power options include switchable levels, region-dependent, with external charging contacts for docked charging. The Shure SB920A rechargeable batteries provide up to 9 hours of runtime in single carrier mode at 10 mW.

The Nexadyne 8 Dynamic Vocal Microphone Capsule, available in cardioid or supercardioid polar patterns, incorporates Shure's patented Revonic dual-engine transducer technology. This innovation delivers optimal performance with minimized mechanical noise, reduced stage bleed, and enhanced signal clarity. The Nexadyne 8 microphones are designed for professional vocal performance, offering a choice of black (RPW200/RPW204) or nickel (RPW202/RPW206) finishes to suit any stage aesthetic.

Revonic Technology ensures natural and vivid clarity with optimized signal output, making these microphones ideal for capturing clean and natural vocals that reach every corner of the venue. The Nexadyne 8 ships with a protective zipper case, mic clip, and brass stand adapter, and features a dent-resistant hardened grille and XLR connection. Compatible with all Shure handheld transmitters with interchangeable microphone capsules, the Nexadyne 8 is a testament to Shure's industry-leading reliability and innovation.

Shure ADX2FD/N8 Digital Wireless Handheld Tx with N8 Mic Capsule,G57: 470-608MHz Features

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black or nickel finish
  • Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Advanced Frequency Diversity for uninterrupted audio transmission
  • Wide 184 MHz tuning range with robust interference protection
  • ShowLink remote control for real-time parameter adjustments
  • Nexadyne 8 capsule with Revonic dual-engine transducer technology
  • Durable black/nickel metal construction with interchangeable Shure cartridges
  • AES 256-bit encryption for secure wireless transmission

What's in the box:

  • Shure ADX2FD/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule
  • 2x SB920A Rechargeable Lithium Ion Battery
  • Swivel Adapter
  • Threaded Adapter
  • WA371 Mic Clip
  • Zipper Bag
  • Shure 2 Year Limited Warranty
