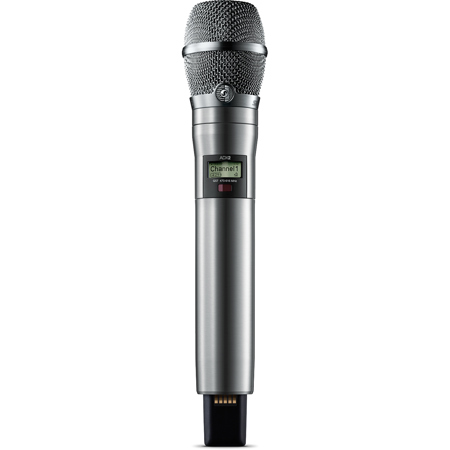

Shure ADX2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Nickel

SKU: SHADX2K1NG57 MFR: ADX2/K11N=-G57
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Shure wireless microphone, perfect for lead vocals.
  • Enjoy exceptional clarity with the KSM11 capsule, designed for professional wireless systems.
  • The ADX2/K11 transmitter offers a wide 470-608MHz range, ensuring reliable wireless audio.
  • Benefit from up to 9 hours of battery life, ideal for long performances with this wireless mic.
  • This digital wireless handheld transmitter delivers low latency, essential for live broadcasting.
  • Built with durable aluminum, this Shure microphone is ready for any stage or event, ensuring quality.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ADX2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Specifications

ADX2: General

ADX2: General

Jump to...
  • Available Colors

    Black, Nickel

  • Housing Material

    Cast Aluminum

  • Gain Offset Range

    -12 to 21 dB (in 1 dB Steps)

  • Frequency Range

    G57: 470-608MHz

  • Battery

    SB920A Rechargeable Lithium-Ion

  • Battery Run Time @10 mW

    Up to 9 Hours

ADX2: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL, Typical (SM58) (1 kHz at 1% THD)

ADX2: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Axient Digital Proprietary

  • Power

    2 mW, 10 mW, 20 mW, 40 mW (Varies by region. See Frequency Range and Output Power Table.)

  • Specific Absorption Rate (SAR)

    <0.19 W/kg

ADX2: Battery

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

ADX2: Physical

Jump to...
  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    11.9 oz (338g) (Without Battery)

KSM11 Capsule

Jump to...
  • Housing Material

    Aluminum and Steel Grille

  • Type

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 20,000 Hz

  • Output Impedance (1 kHz)

    250 Ohm with 5 VDC

  • Sensitivity

    -46.5 dBV/Pa (At 1 kHz, open circuit voltage)

  • Maximum SPL with 5 VDC

    151 dB SPL

  • Signal-to-Noise Ratio

    71.5 dB

  • Dynamic Range with 5 VDC

    128.5 dB

  • Clipping Level with 5 VDC

    10 dBV

  • Self Noise

    22.5 dB SPL (Typical, equivalent SPL, A-weighted)

  • Polarity

    Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground

  • Power Requirements

    5 Volt Bias from Shure Transmitter

  • Dimensions (Dia. x H)

    1.92 x 3.0" (48.7 x 76.3mm)

  • Weight

    5.23 oz (150g)

  • UPC Code

    42406689601

About Shure ADX2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz

ADX2/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. With wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth

The ADX2/K11 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.


- ADX2 Digital Wireless Handheld Transmitter -
ADX2, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features
• Durable, moisture-resistant, lightweight metal case
• Up to 9 hours of runtime with SB920A rechargeable batteries
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes
• Standard for optimal coverage
• New High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission


- KSM11 Wireless Microphone Capsule -
The KSM11 Wireless Vocal Microphone Capsule redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 allows digital wireless systems to present live vocals that must be heard to be believed.

As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity - equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard wireless vocals sounding this good.

Features
• Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
• Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
• Streamlined design for an overall smaller and lighter capsule footprint
• Advanced suspended isolation system for virtually zero handling noise
• Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
• Available with ULX-D transmitters in black and Axient Digital transmitters in black and nickel. Compatible with all Shure handheld transmitters with interchangeable microphone capsules

Shure ADX2/K11 Digital Wireless Handheld Tx w/KSM11 Mic Capsule, G57: 470-608MHz Features

  • Durable, moisture-resistant, lightweight metal case in black or nickel finish
  • Up to 9 hours of runtime with SB920A rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound with this Shure wireless microphone, perfect for lead vocals.
  • Enjoy exceptional clarity with the KSM11 capsule, designed for professional wireless systems.
  • The ADX2/K11 transmitter offers a wide 470-608MHz range, ensuring reliable wireless audio.
  • Benefit from up to 9 hours of battery life, ideal for long performances with this wireless mic.
  • This digital wireless handheld transmitter delivers low latency, essential for live broadcasting.
  • Built with durable aluminum, this Shure microphone is ready for any stage or event, ensuring quality.

What's in the box:

  • Shure ADX2/K11 Digital Wireless Handheld Transmitter with KSM11 Microphone Capsule
  • SB920A Rechargeable Lithium Ion Battery
  • Zipper Bag
  • Microphone Clip
  • Euro-Threaded Adapter
  • Shure 2 Year Limited warranty
