Shure BLX24R/B58 Single-Ch Wireless Rackmount System with BLX2/B58 Handheld Mic H11: 572-596MHz

SKU: SHB24RB58H11 MFR: BLX24R/B58-H11
Earn VIP Reward Points

Key Features

  • Enjoy crystal-clear audio with the Shure wireless microphone system, perfect for live vocals.
  • The handheld microphone's supercardioid pattern minimizes background noise, ensuring focused sound.
  • Achieve reliable performance with up to 300 feet of wireless range, ideal for dynamic stages.
  • This rackmount wireless system's durable build ensures it withstands the rigors of touring and events.
  • Benefit from the BETA 58A capsule, known for its tailored frequency response for vocals.
  • Quick setup with auto-scan feature finds clear channels, making this wireless microphone user-friendly.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-11-03T11:57:52

Rated 5 out of 5

Superb Performance Transmitter/Receiver Microphone System

?? A superb microphone which surpassed my needs and expectations. Performance is well defined in every use. Comparatively stands out proving itself during application where variation of sound waves are converted to clear warm voice delivery in all forms. Very easy to set up. I like this product and I recommended it. I would buy it again.

GLENN M.

Shure BLX24R/B58 Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    123

  • Included Transmitters

    1x Handheld

  • Diversity

    Antenna Diversity

  • Available RF Frequency Bands

    H11: 572 - 596MHz, J11: 596 - 608MHz

  • RF Bandwidth

    H11: 24MHz, J11: 14MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    300' (91.4m) (Line of Sight)

  • Max Transmitters per Band

    12

  • Dynamic Range

    100 dBA

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    XLR Output: -20.5 dBV (Mic Level)
    1/4" Output: -13 dBV (Instrument Level)

  • Frequency Response

    50 Hz to 15 kHz (Dependent on Mic)

  • Impedance

    XLR Output: 200 Ohms
    1/4" Output: 50 Ohms

  • Adjacent Channel Isolation

    >50 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 to 15 VDC at 260 mA, Center-Positive (Included)

  • AC Input Power

    110 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
    1x LED (Transmitter Battery Status)

  • Housing

    Steel

  • Dimensions

    Without Mounting Hardware, Antennas: 7.8 x 2 x 6.4" (198 x 50 x 163 mm)

  • Weight

    35.2 oz (998g)

Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    10 mW

  • Audio I/O

    No

  • Muting

    Off/On Switch

  • Auto-Level Control

    No

  • Gain Range

    -20 to -10 dB

  • Sync Method

    Manual

  • Antenna

    1x Internal (Handheld)

  • Power Requirements

    Battery

  • Battery Type

    2x AA (Included)

  • Battery Type

    2x AA (Included)

  • Approx. Battery Life

    14 Hours (Alkaline)

  • Display & Indicators

    1x Multi-Segment LED (Channel, Group)
    1x LED (Battery Status, Power)

  • Housing

    ABS

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Quantity

    2

  • Dimensions

    2.5 x 4.3 x 0.8" (64 x 110 x 21mm)

  • Weight

    Without Batteries: 7.7 oz (218g)

Capsule

Jump to...
  • Microphone Type

    Handheld Capsule

  • Sound Field

    Mono

  • Capsule

    Dynamic

  • Polar Pattern

    Supercardioid

  • Frequency Range

    50 Hz to 16 kHz

  • Sensitivity

    -51 dBV/Pa

  • UPC Code

    042406470186

About Shure BLX24R/B58

FEATURED REVIEWS

Superb Performance Transmitter/Receiver Microphone System

By GLENN M.

?? A superb microphone which surpassed my needs and expectations. Performance is well defined in every use. Comparatively stands out proving itself during application where variation of sound waves are converted to clear warm voice delivery in all forms. Very easy to set up. I like this product and I recommended it. I would buy it again.

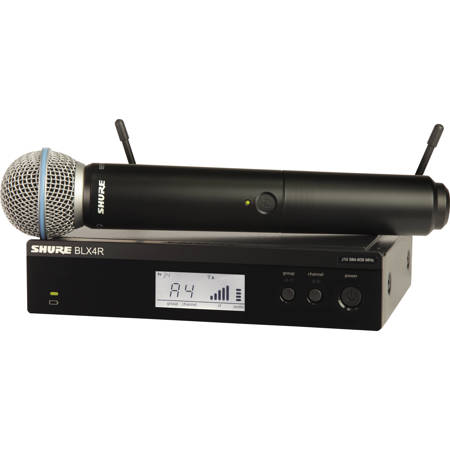

The Shure BLX24R/B58 Wireless Rack-mount Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, legendary BETA58A handheld transmitter, microphone clip, power supply, 2 AA batteries, rackmount kit, 2 1/4 wave antennas, and user guide.

Superior Audio - Perform with Confidence
Get the show going with no wires attached. Professional Shure sound for every band and any vocal need.

Reliable Signal - Extend your range
With a range of up to 300 feet (100m), you can take the show into the crowd without interruption.

Easy Setup - Own the stage
BLX will have you up and running in record time with one-touch scan and selection.

Battery Life - 14 hours of power
Because BLX transmitters get up to 14 hours of power from a single pair of AA batteries, the show can go on and on (and on).

Systems Expansions - Run up to 12 channels per frequency band
You'll probably need to find a bigger stage before you run out of channels.

Versatility Included - You've got options
An impressive variety of Shure microphones are available in BLX systems, so you can find what works for you.


- BLX4R Single-Channel Wireless Rackmount Receiver -
Rack mount analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include frequency QuickScan, adjustable output levels, and two-color audio status indicator LED.

Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems.

Rack mount kit included.


- BLX2 Wireless Handheld Transmitter with BETA 58A Capsule -
Featuring an integrated BETA 58A microphone cartridge, the BLX2/B58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.

The BLX2/B58 Handheld Wireless Microphone Transmitter works with BLX Wireless Systems.

BETA 58A Capsule
Big sound. Full sound. Sophisticated sound. Is your mic living up to the power of your vocal For decades, the BETA 58A has been through the wringer, pushing voice to the forefront on the biggest stages in the world. For sound that commands the attention of the entire crowd, this is your microphone.

Precise. Powerful. Presence
The Shure BETA 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.

The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.

How It Works
On stage or in the studio, the BETA 58A is made for refined voice. The brightened midrange and bass roll-off give lead and background vocals a mighty presence in the mix. And the supercardioid pattern works harder to isolate your sound from every other source in the air. You could say it's a singer's best friend.

Why It's Better

No worse for wear
The hardened steel mesh grille stands up to some of the roughest sweat drips, mic drops and van rides, without so much as a dent to show for it.

Out-louds the noise
The neodymium magnet provides higher output levels, so your sound is clear - and everything else stays in the background.

A worldwide star
The BETA 58A is a top-selling, single-element, dynamic microphone, and can be seen every night on stages all around the globe.

Shure BLX24R/B58 Features

  • BLX4R Single-Channel Wireless Rackmount Receiver
  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED: Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • BLX2 Wireless Handheld Transmitter
  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10 dB gain attenuation
  • Color ID caps (available separately)
  • BETA 58A Capsule
  • Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
  • Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
  • Neodymium magnet for high signal-to-noise output
  • Hardened steel mesh grille that resists wear and abuse
  • Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
  • Minimally effected by varying load impedance
  • Legendary Shure quality and reliability

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Enjoy crystal-clear audio with the Shure wireless microphone system, perfect for live vocals.
  • The handheld microphone's supercardioid pattern minimizes background noise, ensuring focused sound.
  • Achieve reliable performance with up to 300 feet of wireless range, ideal for dynamic stages.
  • This rackmount wireless system's durable build ensures it withstands the rigors of touring and events.
  • Benefit from the BETA 58A capsule, known for its tailored frequency response for vocals.
  • Quick setup with auto-scan feature finds clear channels, making this wireless microphone user-friendly.

What's in the box:

  • BLX4R Rackmount Wireless Receiver
  • BLX2 Wireless Handheld Transmitter with BETA 58A Capsule
  • Microphone Clip
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Hardware Mounting
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x AA Batteries
  • Shure PS24US Power Supply for Select Wireless Receivers
  • Padded Zipper Case
  • User Guide
  • Shure 2 Year Limited Warranty
