Shure PGXD14/PGA31 Headworn Wireless System, X8:902-928MHz
See all Shure items

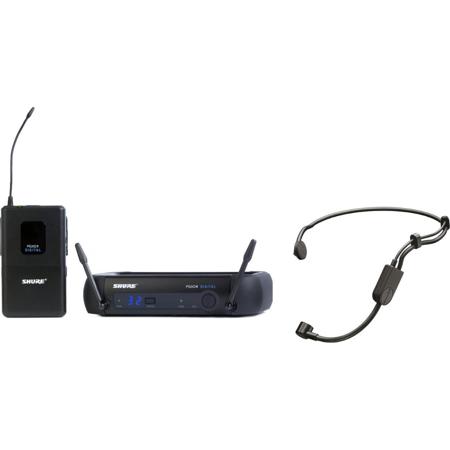

Shure PGXD14/PGA31 Headworn Wireless System, Includes PGXD4 Receiver, PGXD1, PGA31, 2 AA Battery, Power Supply, Clip, Windscreens, Case, X8:902-928MHz

SKU: SHD14PGA31X8

This item is no longer available.

Recommended Alternatives

Shure MoveMic: Picture 1 regular
Shure MoveMic Wireless Lavalier Microphone
$177.00$142.00
Shure BLX24/SM58: Picture 1 regular
Shure BLX24/SM58 Single-Ch Wireless Receiver System with BLX2/SM58 Handheld Mic
$389.00$349.00
Shure BLX14/CVL: Picture 1 regular
Shure BLX14/CVL Wireless Cardioid Lavalier Microphone System
$359.00$319.00
Shure BLX14: Picture 1 regular
Shure BLX14 Wireless Guitar System with WA302 Instrument Cable
$329.00$299.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure PGXD14/PGA31 Specifications

  • RF Carrier Range

    X8: 902-928MHz

  • Working Range

    60m (200')

  • Audio Frequency Response

    20-20000 Hz

  • Total Harmonic Distortion

    <0.02%, A-weighted, typical

  • Dynamic Range

    >108 dB, A-weighted

  • Operating Temperature Range

    -18deg.C (0deg.F)- +50deg.C (122deg.F)

  • Transmitter Audio Polarity

    Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to

  • PGXD1 Transmitter: Audio Input Level

    +10 dBV maximum, at minimum gain setting
    -16 dBV maximum, at maximum gain setting

  • PGXD1 Transmitter: Gain Adjustment Range

    26 dB

  • PGXD1 Transmitter: Input Impedance

    1 MOhms

  • PGXD1 Transmitter: RF Output Power

    10 mW

  • PGXD1 Transmitter: Pin Assignments

    TA4M:
    1: ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

  • PGXD1 Transmitter: Housing

    Molded polycarbonate case

  • PGXD1 Transmitter: Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • PGXD1 Transmitter: Battery Life

    up to 10 hours

  • PGXD4 Receiver: Housing

    ABS

  • PGXD4 Receiver: Sensitivity

    -102 dBm at 10 -5 BER

  • PGXD4 Receiver: Power Requirements

    12-18 V DC at 150 mA, supplied by external power supply (tip positive)

  • PGXD4 Receiver: Audio LED

    Red: 2 dB below clip
    Amber: 12 dB below clip
    Green: 50 dB below clip

  • PGXD4 Receiver: Audio Output

    Configuration: Impedance balanced

  • PGXD4 Receiver: Audio Output Level

    XLR connector: -2.5 dBV (into 3 kOhms load) 6.35 mm (1/4") connector: +10 dBV (into 10 kOhms load)

  • PGXD4 Receiver: Impedance

    XLR: 50 Ohms
    6.35 mm (1/4"): 50 Ohms

  • PGXD4 Receiver: Pin Assignments

    XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio, Sleeve=ground

  • PGA31 Microphone: Type

    Electret Condenser

  • PGA31 Microphone: Frequency Response

    60 Hz to 20,000 Hz

  • PGA31 Microphone: Polar Pattern

    Unidirectional (Cardioid)

  • PGA31 Microphone: Output Impedance

    600 Ohms at 1 kHz

  • PGA31 Microphone: Audio Output Level

    -50.0 dBV/Pa

  • PGA31 Microphone: Signal-To-Noise Ratio

    66 dB at 1 kHz

  • PGA31 Microphone: Maximum SPL

    145.0 dB (1000 Ohms load, at 3%THD)

  • PGA31 Microphone: Dynamic Range

    117.0 dB at 1 kHz, 1000 Ohms load

  • PGA31 Microphone: Equivalent O/P Noise

    28 dB

  • PGA31 Microphone: Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • PGA31 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • PGA31 Microphone: Cable

    1.3m / 4.26'

  • PGA31 Microphone: Connector

    TA4F

  • Dimensions (H x W x D)

    PGXD1 Transmitter: 108 x 64 x 19mm / 4.25 x 2.51 x 0.74"
    PGXD4 Receiver: 40 x 181 x 104mm / 1.57 x 7.12 x 4.09"

  • Weight

    PGXD1 Transmitter: 128 g (4.51 oz)(without batteries)
    PGXD4 Receiver: 289 g (10.2 oz.)
    PGA31 Microphone: 45 g (1.59 oz)

  • UPC Code

    042406390767

About Shure PGXD14/PGA31

The Shure PGXD14/PGA31 Headworn Wireless System (x8:902-928MHz) is part of the Headworn wireless systems family. PGX Digital Wireless, with state-of-the-art, 24-bit digital audio and trusted Shure microphone, delivers stunning sound and a strong, clean RF signal.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • Shure PGXD4 Receiver
  • PGXD1 Bodypack Transmitter
  • PGA31 Headset Microphone
  • 2 x AA Batteries
  • Power Supply
  • Clothing Clip
  • Windscreens
  • Carrying Case
  • User Guide
  • Shure Warranty
