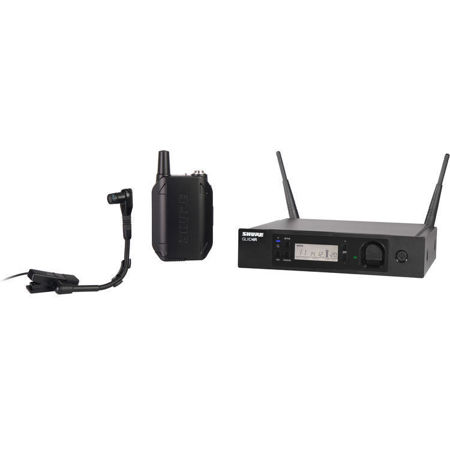

Shure GLXD14R/B98 Instrument Wireless System (Z2 Band: 2400 - 2483.5 MHz), Includes GLXD1 Bodypack Transmitter, GLXD4R Receiver, BETA-98H/C Cardioid Condenser Microphone

SKU: SHD14RB98Z2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure GLXD14R/B98 Specifications

GLXD1 Transmitter

GLXD1 Transmitter

Jump to...
  • Connector

    1x Unbalanced 4-pin TA4M male mini-connector

  • Tuning Frequency Range

    2400 to 2483.5 MHz

  • Range of Operation

    200' (60.96m) (typical, depends on RF signal absorption, reflection, and interference)

  • Transmit Mode

    Frequency Hopping

  • Frequency Response

    20 Hz to 20 kHz

  • Dynamic Range

    120 dB, A-weighted

  • RF Sensitivity

    -88 dBm, typical

  • Total Harmonic Distortion

    0.2%, typical

  • RF Output

    10 mW E.I.R.P, maximum

  • Operating Temperature Range

    0 to 135 deg. F (-18 to 57 deg. C)

  • Storage Temperature Range

    -20 to 165 deg. F (-29 to 74 deg. C)

  • Polarity

    Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output

  • Battery Life

    Up to 16 hours

  • Power Requirements

    3.7 V Rechargeable Li-Ion

  • Input Impedance

    900 kOhms

  • Maximum Input Level

    1 kHz at 1% THD
    8.4 dBV (7.5 Vp-p)

  • Antenna

    Internal Monopole

  • Pin Configuration

    1: ground (cable shield)
    2: +5 V bias
    3: Audio
    4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

  • Housing

    Cast Metal

GLXD4R Receiver

Jump to...
  • Configuration

    XLR Output: Balanced
    1/4" / 6.35 mm Output: Impedance balanced

  • Impedance

    XLR Output: 100 Ohms
    1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)

  • Full Scale Output

    XLR Connector:
    Line Setting: +18 dBV
    Mic Setting: -12 dBV
    1/4" / 6.35 mm Output: +12 dBV

  • Pin Assignments

    XLR Output: 1=ground, 2=hot, 3=cold
    1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground

  • Mic/Line Switch

    30 dB pad

  • Spurious Rejection

    >35 dB, typical

  • Gain Range

    -18 to 42 dB in 1 dB steps

  • Phantom Power Protection

    Yes

Receiver Antenna Input

Jump to...
  • Impedance

    50 Ohms

  • Antenna Type

    1/2 Wave Sleeve Dipole

  • Maximum Input Level

    -20 dBm

BETA-98H/C Microphone

Jump to...
  • Transducer

    Condenser

  • Polar Pattern

    Unidirectional (Cardioid)

  • Frequency Response

    20 Hz - 20 kHz

  • Dynamic Range (Typical)

    132 dB (2.5 kOhms Load)

  • Signal-to-Noise Ratio

    63 dB at 94 dB SPL (IEC 651)

  • Maximum Input Sound Level

    143.5 dB

  • Power Requirements

    11 to 52V DC Phantom Power

  • Output Impedance

    150 Ohms

  • Output Connectors

    Tini Q-G Connector (from Microphone), XLR-3M Type (from Pre-Amp)

  • Pad

    No

  • Low Frequency Roll-Off

    No

  • Applications

    Saxophone, Soprano Saxophone, Trombone, Trumpet, Drums (Toms)

General

Jump to...
  • Housing

    Steel

  • Power

    Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA

  • Dimensions

    Overall: 1.7 x 7.8 x 6.4" (43.18 x 198.12 x 162.56mm)
    GLXD1 Transmitter (HxWxD): 3.56 x 2.54 x 0.90" (9.04 x 6.45 x 2.29cm) (without antenna)
    Microphone Grille Face Diameter: 0.44" (11.18mm)
    Microphone Grille Face to Back of the Head: 1" (25.40mm)
    Microphone Top of the Head to Base of Gooseneck: 6.68" (169.67mm)

  • Weight

    Overall: 32.0 oz (907.18g)
    Microphone with Cable and Tini Q-G Connector: 2.3 oz (65.20g)
    Preamplifier: 3.4 oz (96.39g)

  • UPC Code

    042406495776

About Shure GLXD14R/B98

GLXD1 Bodypack Transmitter
Provides up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. For use with GLX-D Digital Wireless Systems and GLX-D Advanced Digital Wireless Systems with firmware update 2.2.5 or later. GLXD1 offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries.

• Automatically links with GLXD4 and GLXD4R wireless receivers for seamless frequency changing
• Sophisticated design with rugged metal construction
• Easily accessible on / off switch
• Locking TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables

GLXD4R Wireless Receiver
Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications. Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

• Rock-solid RF Performance from patented data communication
• Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED: Green: Charged, Flashing Green: 90% charged, Red: Charging
• Detachable antennas for remote mounting
• Remote adjustable transmitter gain control
• Hi-res LCD screen status display
• Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
• XLR and 1/4" output connectors
• Rugged metal chassis design
• Includes rack mount hardware

BETA 98H/C Instrument Microphone
A versatile solution for brass or percussion instruments. No external mounting hardware required. The BETA98H/C and the wireless version WB98H/C are premium cardioid condenser instrument microphones that clamp onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

• The Beta 98 H/C and WB98 H/C feature transformerless preamplifier circuitry which improves linearity across the full frequency range.
• The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise.
• Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
• The Beta98H/C features a 3 m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
• The WB98H/C features a 1.6 m (5.3ft) high-flex cable terminating in a 4-pin mini-connector, for use with wireless bodypack transmitters
• Tailored frequency response for open, natural sound reproduction
• Compact, lightweight construction provides a low degree of visibility
• Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
• Legendary Shure ruggedness and reliability
• Interchangeable replacement cartridges: RPM108 : Cardioid, RPM110 : Supercardioid

What's in the box:

  • Shure GLXD1 Bodypack Transmitter
  • SB902 Rechargeable Lithium-Ion Battery
  • Padded Zipper Case
  • USB Charger Cable
  • GLXD4R Digital Wireless Multi-System Receiver
  • 2x Antennas with Mounting Cables
  • Rackmount Hardware
  • Power Supply
  • BETA-98H/C Clip-On Condenser Microphone
  • 10' (3 m) High Flex Cable
  • 2x Snap-On Windscreens
  • Storage Bag
  • Preamplifier
  • Gooseneck Angle Brace
  • Cable Management Device
  • User Guide
  • Shure 2 Year Limited Warranty
