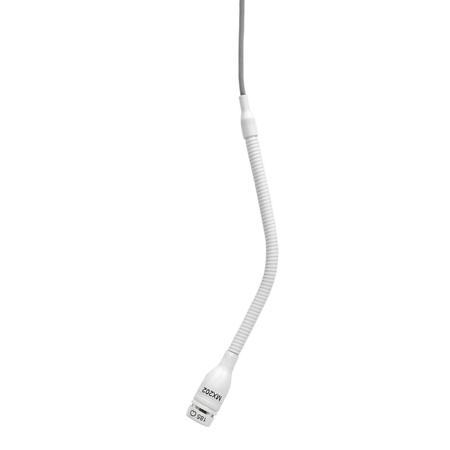

Shure MX202WP/C Mini-Condenser Cardioid Microphone, White
See all Shure items

Shure MX202WP/C Mini-Condenser Cardioid Microphone with 30' Cable, Plate Mounted Pre-Amplifier, White

SKU: SHMX202WPC

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure MX202WP/C Specifications

  • Transducer

    Condenser

  • Frequency Response

    50 to 17,000 Hz

  • Output Impedance

    180 ohms actual (EIA rated at 150 ohms)

  • Sensitivity

    -35.0 dBV/Pa (17.8 mV) (At 1,000 Hz, open circuit voltage)

  • Maximum SPL

    124.2 dB (1 kHz at 1% THD, 1 k ohm load)

  • Equivalent Output Noise (A-weighted)

    28.0 dB SPL

  • Signal to Noise Ratio

    66.0 dB (referenced at 94 dB SPL)

  • Dynamic Range at 1 k ohm load

    96.2 dB
    100 dB at 0 gain

  • Common Mode Rejection

    45.0 dB minimum

  • Preamplifier Output Clipping Level

    -6.0 dBV (0.5 V)
    -12 dBV at 0 gain (1% THD)

  • Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector

  • Power Requirements

    11 to 52 Vdc phantom, 2.0 mA

  • Environmental Requirements

    Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
    Relative Humidity: 0 to 95%

  • Cable Length

    30 ft (9.1 m)

  • Dimensions (L x Dia)

    Microphone: 5.69 x .46" (144.5 x 11.7 mm)
    Preamp: 4.84 x .75" (123.1 x 19mm)

  • Weight

    17.8 oz. (504.6 g)

  • UPC Code

    042406051552

18 Accessories for Shure MX202WP/C Mini-Condenser Cardioid Microphone with 30' Cable, Plate Mounted Pre-Amplifier, White

  • All Accessories (18)
  • Windscreens (4)
  • Cables & Adapters (13)
  • XLR Cables (1)
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 25'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 25'
$13.95
Recommended
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 6'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 6'
$7.95
Recommended
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 3'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 3'
$6.95
Recommended
H&A TRS 1/4" Male to XLR Male Interconnect Cable With Rean Connectors - 3'
H&A TRS 1/4" Male to XLR Male Interconnect Cable With Rean Connectors - 3'
$6.95
Recommended
Shure RK183WS Windscreen, Set of 4
Shure RK183WS Windscreen, Set of 4
$22.00
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Brown
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Brown
$7.69
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Royal Blue
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Royal Blue
$7.69
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Gray
WindTech 500 Series Windscreen, Inside Diameter .437" / 11mm - Gray
$7.69
Kramer Electronics 3' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 3' XLR (M) to XLR (F) Quad Style Cable
$8.80
Kramer Electronics 1' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 1' XLR (M) to XLR (F) Quad Style Cable
$7.20
Kramer Electronics 6' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 6' XLR (M) to XLR (F) Quad Style Cable
$11.20
Hosa Technology Hosa Balanced Interconnect XLR3F to XLR3M Cable, 10'/3.04m
Hosa Technology Hosa Balanced Interconnect XLR3F to XLR3M Cable, 10'/3.04m
$15.95

About Shure MX202WP/C

Shure MX202WP/C Features

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wide dynamic range and frequency response
  • Balanced, transformerless output
  • Preamp options available offer easy installation in ceilings or microphone stands
  • Provides accurate sound reproduction with minimum RF interference

What's in the box:

  • Shure MX202WP/C Mini-Condenser Cardioid Microphone
  • 30' Cable
  • Plate Mounted Pre-Amplifier
  • Plate Mounting Hardware
  • Shure Warranty
