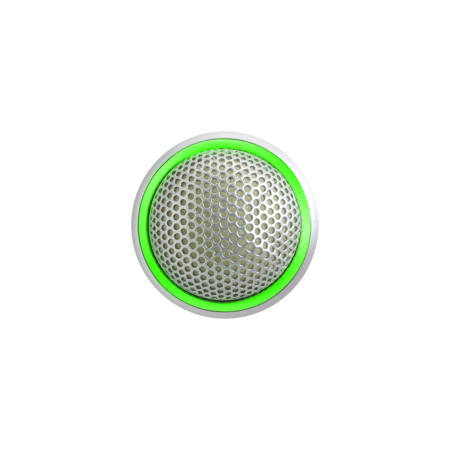

The MX395 Microflex Low Profile Boundary Microphone is designed for recording audio in situations where a low-profile microphone is desired, such as in meeting rooms or during podcast recordings and interviews.
The MX395 Microflex Low Profile Boundary Microphone offers different cartridge polar patterns to cater to specific recording needs. You can choose from cardioid, bidirectional, or omnidirectional models.
The MX395 Microflex Low Profile Boundary Microphone is a product of Shure, a well-respected brand in the audio industry known for producing high-quality and reliable audio equipment.
Yes, the MX395 Microflex Low Profile Boundary Microphone features a remote LED control for easy operation and user convenience.
The MX395 Microflex Low Profile Boundary Microphone has a sleek, low-profile design. It's available in a variety of colors to blend seamlessly into any setting.
Review Summary
Black, White, Silver
Condenser (electret bias)
50 HZ - 17 kHz
MX395/O: Omnidirectional
MX395/C: Cardioid
MX395/BI: Bidirectional
EIA rated at 150 Ohm (170 Ohm actual)
Active balanced
At 1 kHz , open circuit voltage; 1 Pascal = 94 dB SPL:
Cardioid : -35 dBV/Pa (18 mV)
Omnidirectional : -28 dBV/Pa (42 mV)
Bidirectional : -37 dBV/Pa (14 mV)
1 kHz at 1% THD, 1 kOhm load:
Cardioid : 121 dB
Omnidirectional : 114 dB
Bidirectional : 123 dB
Cardioid : 28 dB SPL
Omnidirectional : 21 dB SPL
Bidirectional : 29 dB
Referenced at 94 dB SPL at 1 kHz:
Cardioid : 66 dB
Omnidirectional : 73 dB
Bidirectional : 65 dB
Cardioid : 93 dB
Omnidirectional : 93 dB
Bidirectional : 94 dB
45 dB minimum 10 Hz to 100 kHz
1% THD: -8 dBV (0.4 V)
3-pin XLR : Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-pin XLR : Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
LED IN : Active low (<= 1.0 V), TTL compatible. Absolute maximum voltage: -0.7 V to 50 V.
Operating Temperature: 0-135 Degree F (-18-57 Degree C)
Storage Temperature: -20-165 Degree F (-29-74 Degree C)
Relative Humidity: 0-95%
MX395: 11 - 52 Vdc phantom, 2.0 mA
MX395-LED: 48 - 52 Vdc phantom, 8.0 mA
4.79 oz (136g)
042406517973
Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room. It features wide dynamic range and smooth frequency response, remote LED control, and 3 color options.
The Microflex Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
Cartridge polar pattern indicated by model number suffix
(C = Cardioid, BI = Bidirectional, O= Omnidirectional):
