Review Summary
Black, White
Condenser (electret bias)
50 Hz - 17 kHz
MX410/C: Cardioid
MX410/S: Supercardioid
MX410/MS Lobar Mini-Shotgun
EIA rated at 150 Ohm (170 Ohm actual)
Active balanced
At 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:
Cardioid: -35 dBV/Pa (18 mV)
Supercardioid: -34 dBV/Pa (21 mV)
Lobar: -33 dBV/Pa (22 mV)a
1 kHz at 1% THD, 1 kOhm load:
Cardioid: 121 dB
Supercardioid: 120 dB
Lobar: 121 dB SPL
Cardioid: 28 dB SPL
Supercardioid: 27 dB SPL
Lobar: 36 dB
Referenced at 94 dB SPL at 1 kHz:
Cardioid: 66 dB
Supercardioid: 67 dB
Lobar: 68 dB
93 dB
45 dB minimum, 10 Hz to 100 kHz
1% THD: -8 dBV (0.4 V)
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
LED IN: Active low (<=1.0 V), TTL compatible. Absolute maximum voltage: -0.7 V to 50 V.
LOGIC OUT: Active low (<=1.0 V), sinks up to 20 mA, TTL compatible. Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kOhm).
-50 dB minimum
MX400DP: 6 m attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Operating Temperature: 0-135 Degree F (-18-57 Degree C)
Storage Temperature: -20-165 Degree F (-29-74 Degree C)
Relative Humidity: 0-95%
48 - 52 Vdc phantom, 8.0 mA
2.39 oz (68g)
042406551304

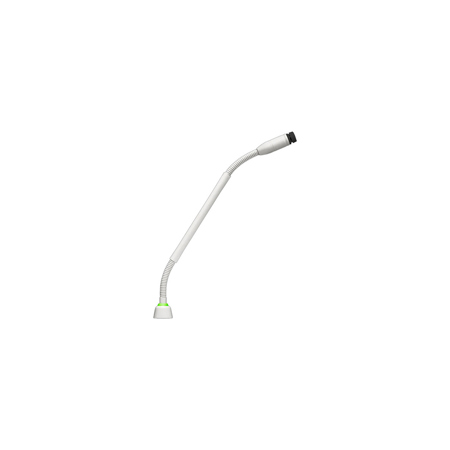

The MX410 surface mount version is a gooseneck microphone with a Bi-Color LED as status display. It has a 10" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Preamplifier Options
MX400DP Desktop Base for MX405 and MX410 models
MX890 Wireless Desktop Base for MX405 and MX410 models
MX400SMP Surface Mount Preamp for MX405 and MX410 models
MXW8 Wireless Desktop Base for MX405, MX410 and MX415 models
ULXD8 Wireless Desktop Base for MX405, MX410 and MX415 models
