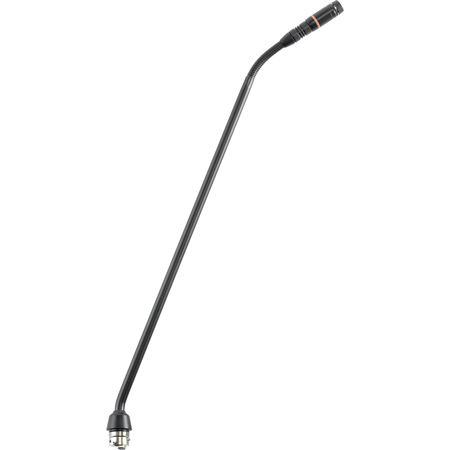

Shure MX415 15" Microflex Modular Gooseneck Microphone No Preamp Black Red Light Ring Indicator Supercardioid

SKU: SHMX415RLPS MFR: MX415RLP/S
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Shure gooseneck microphone, perfect for presentations.
  • Ensure consistent sound quality using the MX415's precise polar pattern for focused pickup.
  • The durable design of this modular gooseneck microphone withstands frequent adjustments.
  • Utilize the XLR connectivity of this microphone for seamless integration with pro audio gear.
  • Enjoy reduced noise and clear speech with the included snap-fit windscreen on this mic.
  • This Shure microphone offers exceptional clarity for boardrooms, podiums, and paging systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure MX415RLP/S Specifications

  • Available Colors

    Black, White

  • Type

    Condenser (electret bias)

  • Frequency Response

    50 Hz - 17 kHz

  • Polar Pattern

    MX415/C: Cardioid
    MX415/S: Supercardioid
    MX415/MS Lobar Mini-Shotgun

  • Output Impedance

    EIA rated at 150 Ohm (170 Ohm actual)

  • Output Configuration

    Active balanced

  • Sensitivity

    At 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:
    Cardioid: -35 dBV/Pa (18 mV)
    Supercardioid: -34 dBV/Pa (21 mV)
    Lobar: -33 dBV/Pa (22 mV)a

  • Maximum SPL

    1 kHz at 1% THD, 1 kOhm load:
    Cardioid: 121 dB
    Supercardioid: 120 dB
    Lobar: 121 dB SPL

  • Equivalent Output Noise A-weighted

    Cardioid: 28 dB SPL
    Supercardioid: 27 dB SPL
    Lobar: 36 dB

  • Signal-to-Noise Ratio

    Referenced at 94 dB SPL at 1 kHz:
    Cardioid: 66 dB
    Supercardioid: 67 dB
    Lobar: 68 dB

  • Dynamic Range 1kOhm load @ 1kHz

    93 dB

  • Common Mode Rejection

    45 dB minimum, 10 Hz to 100 kHz

  • Preamplifier Output Clipping Level

    1% THD: -8 dBV (0.4 V)

  • Polarity

    3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
    5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.

  • Logic Connections

    LED IN: Active low (<=1.0 V), TTL compatible. Absolute maximum voltage: -0.7 V to 50 V.
    LOGIC OUT: Active low (<=1.0 V), sinks up to 20 mA, TTL compatible. Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kOhm).

  • Mute Switch Attenuation

    -50 dB minimum

  • Cable

    MX400DP: 6 m attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control

  • Environmental Conditions

    Operating Temperature: 0-135 Degree F (-18-57 Degree C)
    Storage Temperature: -20-165 Degree F (-29-74 Degree C)
    Relative Humidity: 0-95%

  • Power Requirements

    48 - 52 Vdc phantom, 8.0 mA

  • Weight

    MX415: 2.46 oz (70g)

  • UPC Code

    042406404013

About Shure MX415RLP/S

The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important. Flexible in more ways than one, Microflex Modular Gooseneck Microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it's easy to get the perfect fit for your application. Fully compatible with Microflex Wireless Systems and ULX-D Systems.

Preamplifier Options
• MX400DP Desktop Base for MX405 and MX410 models
• MX890 Wireless Desktop Base for MX405 and MX410 models
• MX400SMP Surface Mount Preamp for MX405 and MX410 models
• MXW8 Wireless Desktop Base for MX405, MX410 and MX415 models
• ULXD8 Wireless Desktop Base for MX405, MX410 and MX415 models

Shure MX415RLP/S Features

  • Gooseneck length: 15" (38.1cm)
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield technology
  • Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
  • Capsule options: None, Cardioid, Supercardioid

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture crystal-clear audio with this Shure gooseneck microphone, perfect for presentations.
  • Ensure consistent sound quality using the MX415's precise polar pattern for focused pickup.
  • The durable design of this modular gooseneck microphone withstands frequent adjustments.
  • Utilize the XLR connectivity of this microphone for seamless integration with pro audio gear.
  • Enjoy reduced noise and clear speech with the included snap-fit windscreen on this mic.
  • This Shure microphone offers exceptional clarity for boardrooms, podiums, and paging systems.

What's in the box:

  • Shure MX415 15" Microflex Modular Gooseneck Microphone
  • Snap-Fit Foam Windscreen (RK513WS)
  • Shure 2 Year Limited Warranty
