Review Summary
Condenser (electret bias)
50 Hz - 17 kHz
MX424/C: Cardioid
MX424/S: Supercardioid
Omnidirectional cartridge available separately
EIA rated at 150 Ohm (170 Ohm actual)
At 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:
Cardioid: -35 dBV/Pa (17.8 mV)
Supercardioid: -33.5 dBV/Pa (21.1 mV)
Omnidirectional: -27.5 (42.2 mV)
1 kHz at 1% THD, 1 kOhm load:
Cardioid: 124.2 dB
Supercardioid: 122.7 dB
Omnidirectional: 116.7 dB
Cardioid: 28 dB SPL
Supercardioid: 26.5 dB SPL
Omnidirectional: 20.5 dB SPL
Referenced at 94 dB SPL at 1 kHz:
Cardioid: 66 dB
Supercardioid: 67.5 dB
Omnidirectional: 73.5 dB
96.2 dB
100 dB at 0 gain (internal modification)
45 dB minimum (10 Hz - 100 kHz)
1% THD: -6 dBV (0.5 V)
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
-50 dB minimum
MX412D and MX418D: The 3 m attached custom cable contains a shielded audio pair and three unshielded conductors for logic control.
Overall diameter = 4 mm
Operating Temperature: 0-135 Degree F (-18-57 Degree C)
Relative Humidity: 0-95%
11 - 52 Vdc phantom, 8.0 mA
042406697286

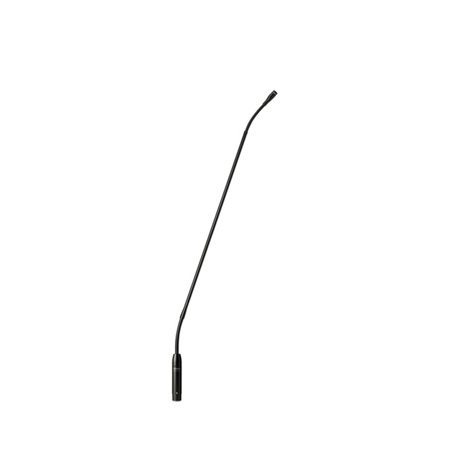

The right speech doesn't just inform. It can excite and even transform those who hear it. So, we designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive work surfaces.
How It Works
The MX424 allows articulate speech capture to be placed precisely where you need it. Its 24-inch gooseneck provides maximum reach in situations where the microphone is located farther from the talker. Compatibility with interchangeable Microflex cartridges allows a choice of polar patterns to match coverage areas or acoustic conditions.
Why It's Better
In tune with speech
Microflex microphone cartridges are tailored specifically to capture the human voice, so the talker always comes through clearly.
No installation headaches
The included mounting accessories make the MX424 easy to install on a table, podium, or lectern in any space.
Clean signal
Shure Commshield is built into Microflex to reject RF interference from ever-present smart phones, keeping the focus on the performance.
