The P10T Full Rack Dual Channel Wireless Transmitter offers a wide 72 MHz tuning bandwidth.
The P10R Wireless Diversity Bodypack Receiver offers full bandwidth RF scan and Automatic RF Gain Control for superior signal stability. It also comes with a patent-pending CueMode for monitoring different stage mixes and storing up to 20 separate channels.
The SE425 Sound Isolating Earphones feature dual high-definition drivers for accurate, natural sound. They come in a secure, over-the-ear design with an innovative detachable cable system.
The PSM 1000 Dual-Channel Personal Monitor System is intended for personal monitoring in live performances, such as music concerts or theater productions. It allows performers to hear their own audio mix in real-time, enabling them to stay in sync with the rest of the band or ensemble.
The PSM 1000 Dual-Channel Personal Monitor System enhances live performances by providing high-quality, accurate sound. The system's wireless nature offers performers the freedom and flexibility to move around the stage without any hindrance, while the SE425 Sound Isolating Earphones ensure a comfortable fit and natural sound.
Review Summary
Pair of Triple Flange Sleeves
Pair of Yellow Universal Fit Foam Sleeves
4x AA Alkaline Batteries
2x Antenna Cables
IEC Power Cable and IEC Extension Cable
Ethernet Network Cable
G10: 470-542MHz, H22: 518-584MHz
39
72 - 80 MHz (region-dependent)
90m (300') (environment-dependent)
35 Hz - 15 kHz +/- 1 dB
90 dB (A-Weighted)
<0.5% typical (ref. +/-34 kHz Deviation at 1 kHz)
Digital Walsh Encoding
Patented Audio Reference Companding
>80 dB typical (referenced to 12 dB SINAD)
+/-2.5 ppm typical
19 kHz (+/-0.3 kHz)
FM, MPX Stereo (ref. +/-34 kHz deviation at 1 kHz)
0 to 135 deg. F (-18 to 57 deg. C)
Tri-Band, Dual Stage 3-Pole Chebyshev
Adjusts Receiver RF Sensitivity to provide 31 dB more RF Dynamic Range
22 dB SINAD (+/-3 dB) default setting
2.2 MuV at 20 dB SINAD
>90 dB typical
>70 dB
>50 dB (referenced to 30 dB SINAD with -80 dBm on channel signal at 45 kHz deviation of a 1 kHz tone) >70 dB for 12 dB SINAD
>80 dB
100 mW (per output) 1 kHz at <1% distortion, peak power, at 32Ohms
9.5Ohms
Selectable: +2 dB, +4 dB at 10 kHz
Selectable: 3-9 Limits volume adjustment knob.
Selected value analogous to volume knob increment
6 hours typical using AA batteries
Required, included
Alkaline
AA
4
3.90 x 2.60 x 0.91" (99 x 66 x 23mm)
With 2x AA batteries: 6.91 oz (196g)
Selectable: 10, 50, 100 mW (+20 dBm), region-dependent
50Ohms typical
Input: 100-240 V AC, 50/60 Hz, 0.5 A max (5.5 max outlet)
Output: 100-240 V AC, 50/60 Hz, 5 A max, unswitched
19.02 x 13.50 x 1.73" (483 x 343 x 44mm)
10.36 lbs (4.7kg)
109 dB SPL/mW
20 Hz-19 kHz
Dual High-Definition
20Ohms

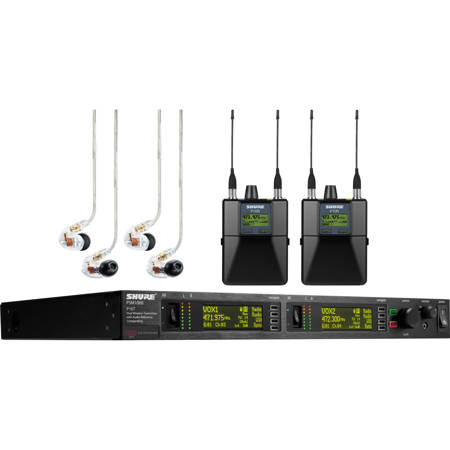

PSM1000 Personal Monitor Systems feature a full-rack, dual-channel transmitter ideal for professional tours and installations and a diversity bodypack receiver that delivers pristine RF signal and audio quality. Networkability over Ethernet enables remote control of transmitter and frequency coordination via Wireless Workbench 6 software.
- P10T Full Rack Dual Channel Wireless Transmitter -
The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench software, advanced rechargeability options and PSM900 backwards compatibility. Connections include balanced 1/4" and XLR, loop out, dual Ethernet ports and headphone monitor out. Comes with front or back mountable antennas and power and Ethernet jumper cables.
- P10R Wireless Diversity Bodypack Receiver -
The P10R is a low-profile, diversity bodypack receiver for use with the PSM1000 Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference.
- SE425 Sound Isolating Earphones -
The SE425 Sound Isolating Earphones feature dual high-definition drivers for accurate, natural sound in a secure, over-the-ear design with innovative detachable cable system.
