Shure PGXD Digital Series Wireless Microphone System Specifications

  • Operating Range

    200' / 60.96m line of sight

  • RF Carrier Range

    902-928 MHz

  • Audio Frequency Range

    20-20000 Hz

  • Transmitter RF Output Power

    10 mW

  • Audio Output Connector

    XLR and 1/4" (6.3 mm) unbalanced

  • Maximum Output Level

    -2.5 dBV (XLR, mic level), +10 dBV (1/4")

  • Battery Life

    Up to 10 hours

  • Dynamic Range

    108 dB A-weighted

  • System Distortion

    < 0.02% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)

  • Operating Temperature Range

    -18 to 50 deg. C / -0 to 122 deg. F

  • Power Requirements

    PGXD1: 2 AA size alkaline or rechargeable batteries
    PGXD4: 12-18V DC at 150 mA, supplied by external power supply

  • Microphone: Type

    Condenser (electret bias)

  • Microphone: Frequency Response

    50 to 20,000 Hz

  • Microphone: Polar Pattern

    Omnidirectional, uniform with frequency

  • Microphone: Output Impedance

    3000Ohms

  • Mic: O/P Level (1 Pascal = 94 dB SPL)

    Open Circuit Voltage: -38 dBV/Pa (13 mV)

  • Mic: O/P Clipping Level (at 1000 Hz)

    0.25 V at 120 dB

  • Microphone: Total Harmonic Distortion

    Less than 1% at 120 dB

  • Microphone: Maximum SPL

    120 dB

  • Microphone: Dynamic Range

    102 dB (maximum SPL to A-weighted noise level)

  • Microphone: Output Noise

    18 dB typical, A-weighted (equivalent SPL)

  • Microphone: Signal-to-Noise Ratio

    76 dB at 94 dB SPL (IEC 651)

  • Microphone: Polarity

    Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)

  • Microphone:Recommended Operating Voltage

    2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)

  • Microphone: Current Drain

    40 uA typical

  • Microphone: Operating Temperature

    -18 to 57 deg. C / -0 to 135 deg. F

  • Microphone: Storage Temperature

    -29 to 74 deg. C / -20 to 165 deg. F

  • Microphone: Cable

    Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type TA4F (WL93T: Tan 1.27 m [4.17 ft])

  • Microphone: Case

    Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille

  • Weight

    Microphone: 16g / 0.56oz

  • UPC Code

    042406190541

About Shure PGXD Digital Series Wireless Microphone System

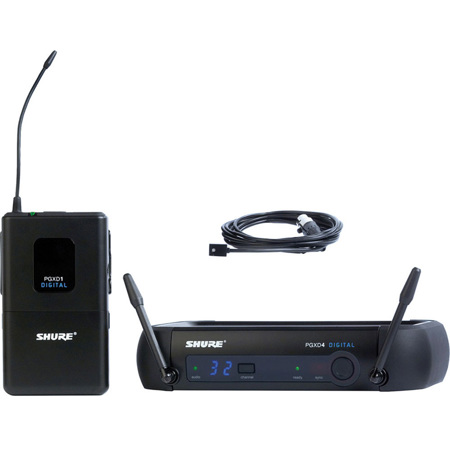

PGX Digital Wireless, with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal. With WL93 miniature omnidirectional condenser lavalier microphone. X8 band. Includes PGXD4 receiver, PGXD1 bodypack transmitter, WL93 lavalier microphone; power supply, 2 AA batteries and user guide.

PGXD1 Bodypack Transmitter
Powerful yet compact, the PGXD1 transmits wireless audio from instrument or microphone sources with pure digital clarity and rock-solid reliability.

• Rugged, compact bodypack with belt clip
• 20 Hz - 20 kHz frequency range captures every nuance of tone
• Power, mute and battery status LED
• 200 ft (60 m) operating range
• Up to 10 hours of continuous use from 2 AA batteries
• Recessed dial on side provides 26 dB of continuously adjustable gain
• Lockable interface prevents accidental setting change

PGXD4 Wireless Receiver
The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal and one touch scan finds a clear frequency instantly, making set up a snap.

• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity for rock-solid wireless signal reliability
• Up to 5 compatible channels per frequency band
• 1/4" and XLR audio outputs
• Included padded carrying case for portability and protection

WL93 Series Subminiature Lavalier Microphones
Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency roll off reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern

Product Documents

User Manual

What's in the box:

  • Shure PGXD4 Receiver
  • PGXD1 Bodypack Transmitter
  • WL93 Lavalier Microphone
  • Power Supply
  • 2AA Batteries
  • User Guide
  • Shure 2 Year Limited Warranty
