Landscape / Portrait / Face-up
85" Class
(84 9/16" diagonal) TFT LCD
3,840 x 2,160 pixels
Approx: 1,070 million colors
0.488 x 0.488mm
500 cd/sq m
5,000 : 1
178 Degree/178 Degree (CR 10)
73 11/16 x 41 7/16" (187.1 x 105.2cm)
9.5 ms (gray to gray, avg.)
LED, direct lit
Analog RGB (0.7 Vp-p) [75Ohm], DisplayPort 1.2, HDMI
Horizontal/vertical separation (TTL: positive/negative)
VESA DDC2B
DisplayPort x 1, Mini D-sub 15-pin x 1, HDMI x 2, RS-232C x 1, 3.5 mm-diameter mini stereo jack x 1
DisplayPort x 1, RS-232C x 1 , 3.5 mm-diameter mini stereo jack x 1
Android 7.1
Hexa Core [Arm Cortex-A72 processor (dual core) + Arm Cortex-A53 processor (quad core)]
4 GB
32 GB
LAN port (10Base-T/100Base-TX/1000Base-T), microSD card slot (microSD/microSDHC/microSDXC) x 1, USB port (3.0-compliant) x 2, USB port (2.0-compliant) x 1
Compliant with IEEE802.11ac/n/a/g/b
Compliant with version 4.1 (A2DP/AVRCP/GATT/GAP/HID/HOGP
12 V, 2.5 A (power supplied when expanding the functions with an optional part)
10 W + 10 W
4 points, 600 x 400mm pitch, M6 screw
100 V - 240 V AC, 50/60 Hz
370 W
0 Degree to 104 Degree F (0 Degree C to 40 Degree C)
20% to 80% RH (no condensation)
Approx. Display Only: 74 7/8 x 3 1/2 x 42 5/8" (190.1 x 8.8 x 108.2cm)
Approx: 105.9 lb (47.6kg)
074000066892

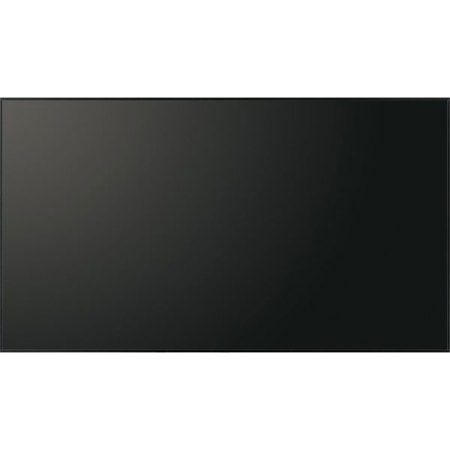

Overwhelm your audience with the stunning visual experience offered by the PN-HM 85" Class 4K Ultra-HD Smart Signage Display. This high-performance digital signage solution is designed to deliver life-like, ultra-high-definition images, making it an ideal choice for enhancing the ambiance of any retail store, transport hub, or conference hall.
The PN-HM series comes in three sizes - 85" Class (84 9/16" diagonal), 75" Class (74 9/16" diagonal), and 65" Class (64 1/2" diagonal), each equipped with a 5000:1 contrast ratio and a brightness of 500cd/sq m. These features ensure that your content is displayed with exceptional clarity and vibrancy, even in high ambient light conditions.
Powered by an Arm Cortex hexa-core processor, the integrated SoC (System on a Chip) controller provides a robust platform for displaying your content right out of the box. With 4 GB of memory, 32 GB of storage, and an integrated Android OS (7.1), these monitors support not only H.264/AVC but also H.265/HEVC, a next-generation, high-efficiency video codec that enhances the depth and presence of your content.
The PN-HM series also features the SHARP Open Architecture Platform, which allows third-party software developers to create custom signage applications, expanding the possibilities for digital signage in various settings. With high-speed wireless LAN and built-in Bluetooth connectivity, you can deliver content and connect equipment wirelessly, offering a seamless digital signage experience.
The built-in media player automatically starts playing content stored in internal storage or on a USB memory device or microSD card when the monitor is powered on. A simple schedule function allows you to pre-register seven patterns for when to start/stop the content playback.
Designed for easy installation, the PN-HM series can be installed in a landscape or portrait orientation or even face up. With the ability to tilt backward up to 90 degrees or forward up to 20 degrees, these monitors offer the flexibility to meet today's demanding signage needs.
Built for 24/7 operation, the PN-HM series is ideal for use in 24-hour stores and other demanding professional applications. With the ability to set up to four PN-HM monitors in a daisy chain configuration by connecting their DisplayPort terminals, you can display the same content simultaneously on all screens.
The PN-HM series also comes bundled with the Standalone Edition of SHARP e-Signage S, a versatile signage software that provides total support for creating, scheduling, distributing, and managing a wide range of signage programs.
In summary, the PN-HM 85" Class 4K Ultra-HD Smart Signage Display is a powerful, flexible, and reliable digital signage solution that delivers stunning visual impact and supports a wide range of signage needs.
