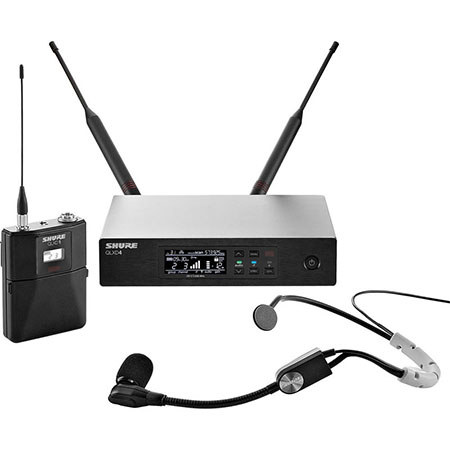

Shure QLXD14/SM35 Headworn Wireless Microphone System, H50/534-598MHz
See all Shure items

Shure QLXD14/SM35 Headworn Wireless Microphone System, H50/534-598MHz, Includes QLXD1 Bodypack Transmitter, QLXD4 Receiver, SM35 Headset Condenser Mic

SKU: SHQ14SM35H50

This item is no longer available.

Recommended Alternatives

Shure MoveMic: Picture 1 regular
Shure MoveMic Wireless Lavalier Microphone
$177.00$142.00
Shure BLX24R/B58: Picture 1 regular
Shure BLX24R/B58 Single-Ch Wireless Rackmount System with BLX2/B58 Handheld Mic
$660.00$539.00
Shure BLX24/SM58: Picture 1 regular
Shure BLX24/SM58 Single-Ch Wireless Receiver System with BLX2/SM58 Handheld Mic
$489.00$389.00
Shure : Picture 1 regular
Shure BLX14R Wireless Rackmount Presenter System w/WL185M Cardioid Lavalier Mic
$702.00$559.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure QLXD14 Specifications

  • Frequency Range

    H50/534-598MHz

  • QLXD1: Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • QLXD1: Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V

  • QLXD1: Battery Runtime

    at 10 mW

  • QLXD1: Shure SB900: up to 10 hours

    Alkaline: up to 9 hours

  • QLXD1: Housing

    Cast aluminum

  • QLXD1: Audio Input Connector

    4-pin male mini connector (TA4M)

  • QLXD1: Configuration

    Unbalanced

  • QLXD1: Audio Input Impedance

    1 mOhms

  • QLXD1: Maximum Input Level

    1 kHz at 1% THD

  • QLXD1: 8.5 dBV (7.5 Vpp)

    Preamplifier Equivalent Input Noise (EIN)

  • QLXD1: System Gain Setting = +20

    -120 dBV, A-weighted, typical

  • QLXD1: RF Input Connector

    SMA

  • QLXD1: Antenna Type

    1/4 wave

  • QLXD1: RF Input Impedance

    50 Ohms

  • QLXD1: Occupied Bandwidth

    <200 kHz

  • QLXD1: Modulation Type

    Shure proprietary digital

  • QLXD1: Power

    1 mW or 10 mW

  • QLXD4: Spurious Rejection

    >80 dB, typical

  • QLXD4: Connector Type

    BNC

  • QLXD4: RF Input Impedance

    50 Ohms

  • QLXD4: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • QLXD4: Configuration

    1/4" (6.35mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio /+, 3=audio-)

  • QLXD4: Audio Input Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • QLXD4: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • QLXD4: Mic/Line Switch

    30 dB pad

  • QLXD4: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • QLXD4: Network Interface

    Single Port Ethernet 10/100 Mbps

  • QLXD4: Network Addressing Capability

    DHCP or Manual IP address

  • QLXD4: Maximum Ethernet Cable Length

    100 m (328 ft)

  • QLXD4: Housing

    Steel

  • QLXD4: Power requirements

    12 V DC at 0.4 A, supplied by external power supply (tip positive)

  • SM35: Type

    Electret Condenser

  • SM35: Frequency Response

    40 Hz to 20,000 Hz

  • SM35: Polar Pattern

    Unidirectional (Cardioid)

  • SM35: Output Impedance at 1 kHz

    2400Ohms

  • SM35: Audio Output Level

    -59.0 dBV/Pa

  • SM35: Signal-To-Noise Ratio at 1 kHz

    55 dB

  • SM35: Maximum SPL

    1000 Ohms load, at 1% THD: 153.0 dB

  • SM35: Dynamic Rang

    at kHz, 1000 Ohms load: 114.0 dB

  • SM35: Equivalent Output Noise

    Typical, A-Weighted: 39 dB

  • SM35: Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • SM35: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • SM35: Cable

    1.1m (3.60')

  • SM35: Connector

    TA4F

  • Dimensions (H x W x D)

    QLXD1: 86 x 65 x 23mm (3.38 x 2.57 x 0.92")
    QLXD4: 41 x 197 x 151mm (1.63 x 7.75 x 5.94")

  • Weight

    QLXD1: without Batteries: 138g (4.9oz)
    QLXD4: Without Antennas: 777g (27.40oz)
    SM35: 72g (2.53oz)

  • UPC Code

    042406350181

About Shure QLXD14

Featuring the SM35 headset microphone, QLXD14/SM35 (H50/534-598MHz) combines professional features with simplified setup and operation. The Shure QLXD4 is a half-rack digital wireless receiver. Ideal for presentation spaces, music venues and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac.

The Shure QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

The new SM35 headset condenser microphone from Shure gives multi-instrumentalists the freedom to express themselves without having to sacrifice the sound quality found in traditional microphones. A tight, unidirectional (cardioid) pickup pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed for superior performance on stage. Standard TA4F (TQG) connectivity seamlessly integrates into any Shure wireless bodypack system and its availability in a number of bundled systems makes it appropriate for any stage, ranging from small clubs to large installations and arena tours.

Shure QLXD14 Features

  • QLXD1: 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • QLXD1: Over 120 dB of dynamic range - no transmitter gain adjustments needed
  • QLXD1: AES 256-bit encryption for secure transmission
  • QLXD1: Up to 9 hours continuous use with 2 x AA alkaline batteries
  • QLXD1: Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of
  • QLXD1: Rugged metal construction
  • QLXD1: Frequency and power lockout
  • QLXD4: 64 MHz tuning bandwidth (region dependent)
  • QLXD4: More than 60 preset compatible channels per frequency band (region dependent)
  • QLXD4: Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • QLXD4: Digital predictive switching diversity ensures solid RF connection
  • QLXD4: IR sync deploys selected frequency to transmitter
  • QLXD4: AES 256-bit encryption for secure wireless transmission
  • QLXD4: Up to 60 dB of adjustable audio gain
  • QLXD4: Audio and RF LED meters with peak indicator
  • SM35: Wearable wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
  • SM35: Tight, unidirectional (cardioid) condenser pickup pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
  • SM35: Flexible gooseneck design allows for optimized placement to further improve source isolation
  • SM35: TA4F connector compatible with any Shure wireless bodypack system
  • SM35: Included in a wide variety of Shure wireless systems, renowned for their ease of use and reliable performance
  • SM35: Locking snap-fit windscreen tames plosive, breath and wind noise for clean and intelligible sound
  • SM35: Tailored frequency response refined for clear, crisp vocal reproduction
  • SM35: Legendary Shure precision engineering for durability and performance

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • 45 Hz to 20 kHz frequency range w flat response
  • Over 120 dB range - no gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • Up to 9 hours continuous use w 2 AA batteries
  • Optional Shure SB900 lithium ion rechargeable battery
  • QLXD1: Rugged metal construction

What's in the box:

  • Shure QLXD1 Bodypack Transmitter (H50/534-598MHz)
  • QLXD4 Digital Wireless Receiver (H50/534-598MHz)
  • SM35 Headset Condenser Mic
  • Power Supply
  • 2 x AA Batteries
  • Two 1/2 Wave Antennas
  • 2 x BNC Cables
  • Zipper Bag
  • 2 x BNC Bulkhead Adapters
  • Rackmount Kit
  • User Guide
  • Shure Warranty
