19% Off

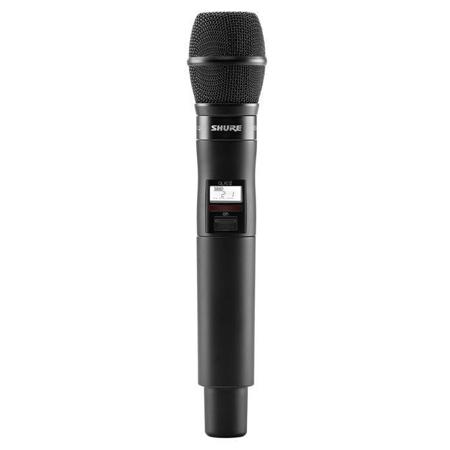

Shure QLXD2 Wireless Handheld Microphone Transmitter with KSM9HS Capsule J50A: 572-616MHz

SKU: SHQKSM9HSJ5A MFR: QLXD2/KSM9HS=-J50A
Earn VIP Reward Points

Key Features

  • Experience pristine sound with the Shure KSM9HS capsule for professional wireless microphones.
  • Enjoy versatile polar patterns (hypercardioid, subcardioid) on this wireless handheld transmitter.
  • Achieve superior vocal clarity with a wide 50 Hz - 20 kHz frequency response range.
  • Rugged aluminum housing ensures durability for reliable wireless microphone performance on stage.
  • Operate for up to 9 hours using AA batteries, perfect for extended events and performances.
  • Select from various frequency bands (G50, H50, J50A, X52) for interference-free transmission.
See More Product Details

Product Options

Special Order Item?Estimated to Ship: 08/01/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure QLXD2 with KSM9HS Specifications

General

General

Jump to...
  • Available Frequency

    G50: 470-534MHz
    H50: 534-598MHz
    J50A: 572-616MHz
    X52: 902-928MHz

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    145 dB SPL (SM58), typical (1 kHz at 1% THD)

RF Output

Jump to...
  • Antenna Type

    Integrated Single Band Helical

  • Occupied Bandwidth

    < 200 kHz

  • Modulation Type

    Shure proprietary digital

  • Power

    1 mW or 10 mW

Battery

Jump to...
  • Battery

    Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime @ 10 mW

    Shure SB900A: Up to 10 hours
    Alkaline: Up to 9 hours

  • Battery Info

    Required, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Housing

    Machined Aluminum

  • Dimensions (L x Dia.)

    10.1 x 2" (256 x 51mm)

  • Weight

    Without Batteries: 12.2 oz (347g)

KSM9HS Capsule

Jump to...
  • Cartridge Type

    Condenser (Electret Biased)

  • Frequency Response

    50 to 20,000 Hz

  • Polar Pattern

    Hypercardioid, Subcardioid

  • Output Impedance

    145 ohms (actual)

  • Phantom Power

    48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3

  • Current Drain

    5.2 mA typical at 48 Vdc

  • Common Mode Rejection

    >60 dB, 50 Hz to 20 kHz

  • Polarity

    Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3

  • Sensitivity

    (typical; at 1000 Hz; 1 Pa = 94 dB SPL)
    Hypercardioid: -50.5 dBV/Pa
    Subcardioid: -53.0 dBV/Pa

  • Self-noise

    (typical, equivalent SPL; A-weighted, IEC 651)
    Hypercardioid: 20.7 dB
    Subcardioid: 22.7 dB

  • Maximum SPL @ 1000 Hz

    2500 ohms load:
    Hypercardioid: 150.8 dB
    Subcardioid: 153.0 dB

    1000 ohms load:
    Hypercardioid: 150.9 dB
    Subcardioid: 153.1 dB

  • Output Clipping Level

    2500 ohms load: 7.0 dBV
    1000 ohms load: 6.4 dBV

  • Dynamic Range (@ 1 kHz)

    2500 ohms load:
    Hypercardioid: 130.8 dB
    Subcardioid: 130.1 dB

    1000 ohms load:
    Hypercardioid: 130.1 dB
    Subcardioid: 130.6 dB

  • Signal to Noise ratio

    Hypercardioid: 73.3 dB
    Subcardioid: 71.3 dB

  • Dimensions (L x Dia.)

    7.5 x 1.93" (191 x 49mm)

  • Weight

    10.6 oz (300g)

  • UPC Code

    042406345125

About Shure QLXD2 with KSM9HS

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

- KSM9HS Condenser Vocal Microphone -
Condenser microphone that captures extraordinary vocal detail due to its switchable hypercardioid and subcardioid patterns. It features exceptional consistency across all frequencies, a dual Mylar diaphragm, a shock mount, and multiple color options.

KSM9HS microphones offer exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect. As the premier choice in handheld wireless microphone options for Axient, UHF-R, and ULX-D, KSM9HS microphones are built to exacting Shure endurance standards, renowned worldwide and proven night after night, center stage.

The KSM9HS is a premium vocal condenser microphone that captures vocal subtlety with extraordinary detail to deliver clear articulation, functional flexibility, and precise vocal reproduction for live performance.

Engineered to exacting standards, the KSM9HS reveals nuance and subtlety in a microphone optimized for the most demanding live environments. With its dual diaphragm design and switchable polar patterns (hypercardioid / subcardioid), the KSM9HS is the choice for the world's most accomplished vocal performances.

Features
• Exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect
• Dual gold layered, low-mass Mylar diaphragm design
• Switchable polar patterns (hypercardioid and subcardioid)
• Advanced suspension shock mount
• Premium electronic components including Class A transformerless preamplifier circuitry
• Gold-plated internal and external connectors, including XLR Output Durable aluminum housing
• Available as wireless handheld transmitter SKUs
• Zippered carrying case

Shure QLXD2 with KSM9HS Features

  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsules
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range - no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (330 ft.) line-of-sight operating range
  • Rugged metal construction
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience pristine sound with the Shure KSM9HS capsule for professional wireless microphones.
  • Enjoy versatile polar patterns (hypercardioid, subcardioid) on this wireless handheld transmitter.
  • Achieve superior vocal clarity with a wide 50 Hz - 20 kHz frequency response range.
  • Rugged aluminum housing ensures durability for reliable wireless microphone performance on stage.
  • Operate for up to 9 hours using AA batteries, perfect for extended events and performances.
  • Select from various frequency bands (G50, H50, J50A, X52) for interference-free transmission.

What's in the box:

  • Shure QLXD2 Wireless Handheld Microphone Transmitter
  • KSM9HS Capsule
  • Mic Clip
  • Battery Contact Cover
  • 2x AA Batteries
  • Zipper Bag
  • Shure 2 Year Limited Warranty
