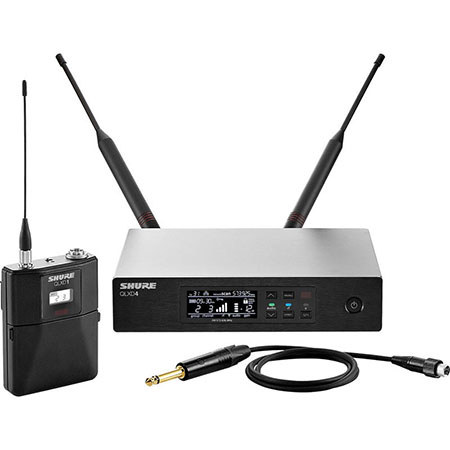

Shure QLXD14 Bodypack Guitar/Bass Wireless System, H50/534-598MHz, Includes QLXD1 Bodypack Transmitter, QLXD4 Digital Wireless Receiver
SKU: SHQLXD14H50
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About Shure QLXD14
Featuring the premium WA305 instrument cable, QLXD1 wireless bodypack transmitter & QLXD4 Receiver, QLXD14 (H50/534-598MHz) combines professional features with simplified setup and operation. The Shure QLXD4 is a half-rack digital wireless receiver. Ideal for presentation spaces, music venues and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac.
The Shure QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
Shure QLXD14 Features
- QLXD1: 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- QLXD1: Over 120 dB of dynamic range - no transmitter gain adjustments needed
- QLXD1: AES 256-bit encryption for secure transmission
- QLXD1: Up to 9 hours continuous use with 2 x AA alkaline batteries
- QLXD1: Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of
- QLXD1: Backlit LCD with easy to navigate menu and controls
- QLXD1: 100 meter (300 feet) line-of-sight operating range
- QLXD1: 4-Pin male mini connector (TA4M)
- QLXD1: Rugged metal construction
- QLXD1: Frequency and power lockout
- QLXD4: 64 MHz tuning bandwidth (region dependent)
- QLXD4: More than 60 preset compatible channels per frequency band (region dependent)
- QLXD4: Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
- QLXD4: Digital predictive switching diversity ensures solid RF connection
- QLXD4: IR sync deploys selected frequency to transmitter
- QLXD4: Ethernet networking provides streamlined setup across multiple receivers
- QLXD4: Networked channel scan configures open frequencies for all connected receivers
- QLXD4: AES 256-bit encryption for secure wireless transmission
- QLXD4: Up to 60 dB of adjustable audio gain
- QLXD4: Audio and RF LED meters with peak indicator
- QLXD4: Detachable 1/2 wave antennas
- QLXD4: Mic / line switchable XLR output
- QLXD4: 1/4" instrument output
- QLXD4: Durable aluminum construction with brushed finish
- QLXD4: Compatible with Shure Wireless Workbench 6 control software
Product Documents
User ManualKey Features
- 21 Hz to 20 kHz frequency range w flat response
- Over 120 dB range - no gain adjustments needed
- AES 256-bit encryption for secure transmission
- Up to 9 hours continuous use w 2 AA batteries
- Optional Shure SB900 lithium ion rechargeable battery
- Backlit LCD w easy to navigate menu & controls
What's in the box:
- Shure (H50/534-598MHz) QLXD1 Bodypack Transmitter
- QLXD4 Digital Wireless Receiver
- Instrument Cable
- Power Supply
- 2 x AA Batteries
- Two 1/2 Wave Antennas
- 2 x BNC Cables
- Zipper Bag
- 2 x BNC Bulkhead Adapters
- Rackmount Kit
- User Guide
- Shure Warranty
