Review Summary
G58: 470-514MHz
H55: 514-558MHz
J52: 558-616MHz
328' (100m)
25 kHz
>70 dB (typical)
-97 dBm at 10-5 BER
3.2 ms
20 Hz-20 kHz (+1, -2 dB)
120 dB @1% THD (A-weighted, typical)
<0.02%
XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
0 to 21 dB (in 3 dB steps)
0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)
-20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)
1/4 Wave
<200kHz
Shure Proprietary Digital
1 mW/10 mW
4-Pin male mini connector (TA4M)
Unbalanced
1 M Ohm
8.2 dBV (2.57 Vrms, 7.27 Vpp)
-118 dBV (EIN)
PC/ABS
Rechargeable Li-Ion or 1.5 V AA batteries
Required, Included
Alkaline
AA
2
3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)
3.1 oz (89g)
>75 dB Typical
BNC
50 Ohm
-18 to +42 dB in 1 dB steps
1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
XLR (line): 400 Ohm (200 Ohm Unbalanced)
XLR (mic): 150 Ohm
1/4" (6.35mm): +15 dBV differentially (+9 dBV single)
XLR (LINE setting): +15 dBV
XLR (MIC setting): -15 dBV
30 dB pad
1/4" (6.35mm): Yes
XLR: Yes
Single Port Ethernet 10/100 Mbps
DHCP or Manual IP address
328' (100m)
Galvanized Steel
15 VDC @ 600 mA Supplied by external power supply (tip positive)
1.65 x 7.76 x 5.98" (42 x 197 x 152mm)
Without Antennas: 1.8 lbs (816g)
Tan
Electret condenser
Omnidirectional
20 to 20,000 Hz
-41 dBV/Pa (9 mV) (open circuit voltage, @ 1 kHz, typical)
2500 Ohm load: 107 dB SPL
1000 Ohm load: 107 dB SPL
60 dB
2500 Ohm load: 73 dB
1000 Ohm load: 73 dB
34 dB (equivalent SPL, A-weighted, typical)
0 Degree F to 135 Degree F (-18 Degree C to 57 Degree C)
Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1
+1-5 V DC (500 microA max.)
0.69 oz (19.76g)
042406562645

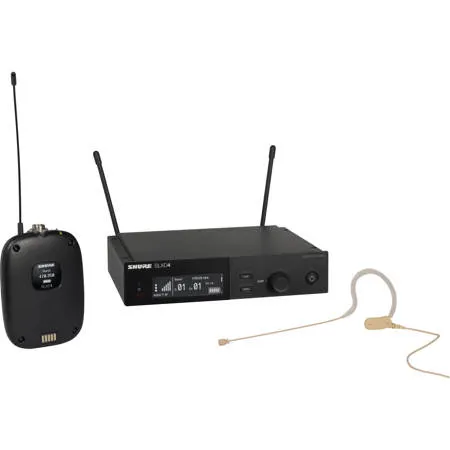

- SLX-D Digital Wireless Systems -
Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.
Always Come Through Clear
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.
Dropouts Are Out
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.
Keep The Show Going
Ready to perform for all-day conferences and nighttime performances-up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
Applications
Event, Presentation and Speech
House of Worship
Performance and Clubs
- SLXD1 Digital Wireless Bodypack Transmitter -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.
Features
Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
Operating range of 100 m (300 ft.)
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics
Ergonomic and durable plastic construction
- SLXD4 Single-Channel Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.
Features
Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over scan and IR sync
Compatible with Shure Wireless Workbench control software
Remote monitoring and control via ShurePlus Channels app
Rugged metal construction
- MX153T Earset Headworn Microphone -
Earset headworn omnidirectional microphone delivers exceptional speech clarity and enhanced plosive protection with no proximity effect. It features CommShield technology to stop RF interference, 3 color options, 3 windscreens and a protective pouch.
The Shure Microflex MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A / V conferencing, and live sound reinforcement.
Features
Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
Kevlar reinforced soft flex cable
Includes protective storage pouch, 3 windscreens, and collar clip
