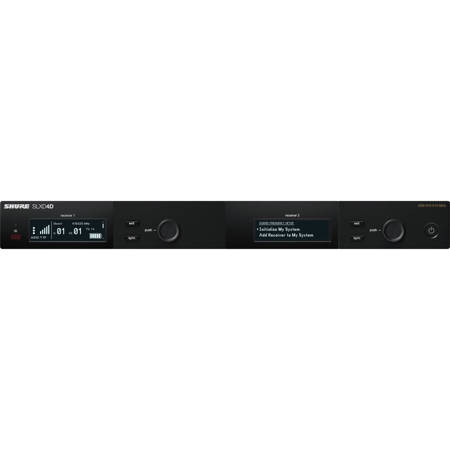

Shure SLXD4D Dual-Channel Digital Wireless Receiver H55: 514-558MHz

SKU: SHS4DH55 MFR: SLXD4D=-H55
Be the first to review this itemAsk a Question
$929.00
$1,161.00
Save: $232 (20%)
OR
$78/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Shure dual-channel wireless receiver.
  • Ensure reliable performance with low latency digital wireless technology for clear sound.
  • Enjoy flexible connectivity with balanced XLR and 1/4" outputs on this wireless system.
  • Rugged metal construction ensures durability, making it perfect for any performance setting.
  • Optimize your sound with adjustable gain settings for precise audio control; easy to use.
  • Network-enabled for remote monitoring and control, enhancing your wireless microphone setup.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MICHAEL V : recommended to us from a tech person in the audio businessCARRIE R : We have used this equipment before and works with our current transmitters.

Reviews about this item

Review Summary

Shure SLXD4D Specifications

RF Input

RF Input

Jump to...

  • Available Frequency

    G58: 470-514MHz
    H55: 514-558MHz
    J52: 558-616MHz

  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

Audio Output

Jump to...

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.3 k Ohm (670 Ohm Unbalanced)
    XLR (line): 400 Ohm (200 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +15 dB differentially (+9 dBV single)

    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

Networking

Jump to...

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

General

Jump to...

  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 15.5 x 5.98" (42 x 393 x 152mm)

  • Weight

    Without Antennas: 3.2 lbs (1.451kg)

Other

Jump to...

  • UPC Code

    042406556583

About Shure SLXD4D

The SLXD4D Dual Receiver is the convenient, streamlining choice for confident speech presentation and vocal performance from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design in a convenient dual, full-rack configuration, the SLXD4D saves space and accessories for any size of multi-system configuration A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Shure SLXD4D Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior audio clarity with this Shure dual-channel wireless receiver.
  • Ensure reliable performance with low latency digital wireless technology for clear sound.
  • Enjoy flexible connectivity with balanced XLR and 1/4" outputs on this wireless system.
  • Rugged metal construction ensures durability, making it perfect for any performance setting.
  • Optimize your sound with adjustable gain settings for precise audio control; easy to use.
  • Network-enabled for remote monitoring and control, enhancing your wireless microphone setup.

What's in the box:

  • Shure SLXD4D Dual-Channel Digital Wireless Receiver
  • Shure 2 Year Limited Warranty
