Kit Savings

Shure SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier, SM63-LB Handheld Microphone and SLXD3 Plug-On Transmitter, J52: 558-616MHz

SKU: SHSLXD158J5A MFR: SLXD15/85-J52-A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD15/WL85 Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
    Shure SLXD15/WL85 Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
  • +
  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
    Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
  • +
  • Shure SM63LB Omni-Directional Handheld Wired Microphone with Handle, Black
    Shure SM63LB Omni-Directional Handheld Wired Microphone with Handle, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture pristine audio with the WL185 lavalier microphone, ideal for interviews and presentations.
  • Experience superior sound quality with this Shure digital wireless microphone system at an affordable price.
  • The SLXD3 plug-on transmitter turns any XLR mic into a wireless microphone, expanding your options.
  • Enjoy freedom of movement with a reliable wireless range, perfect for dynamic performances and events.
  • The included SM63-LB handheld microphone delivers clear speech, great for on-the-spot reporting.
  • Benefit from long-lasting battery life for uninterrupted recording sessions with this wireless system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD15/85 + SM63-LB Specifications

General

General

Jump to...
  • RF Frequency Band

    J52: 558-616MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Cardioid

  • Pad

    No

  • High-Pass Filter

    No

Microphone: Performance

Jump to...
  • Frequency Range

    50 Hz to 17 kHz

  • Maximum SPL

    130.5 dB SPL

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' (1.22m)

Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    1.5 to 10 V

Microphone: Physical

Jump to...
  • Color

    Black

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Codes

    192223243415, 042406760164, 042406764735, 424060512172

33 Accessories for Shure SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier, SM63-LB Handheld Microphone and SLXD3 Plug-On Transmitter, J52: 558-616MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/85 + SM63-LB

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

Because capturing clear, high-quality audio is crucial in a variety of settings, the SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier, SM63-LB Handheld Microphone, and SLXD3 Plug-On Transmitter, J52: 558-616MHz is designed to deliver exceptional performance. This system is equipped with the SLXD1 Digital Wireless Bodypack Transmitter, which boasts 24-bit digital audio for transparent sound and robust RF performance. Its easy setup and rechargeability options make it a versatile choice for everything from all-day conferences to nighttime performances.

The SLXD1 transmitter syncs effortlessly with a wireless receiver, and its TQG connectivity accommodates a variety of microphone options, ensuring a solution for a wide range of applications. It offers an extended 20 Hz to 20 kHz frequency range (microphone dependent), a 118 dB dynamic range, and digital predictive switching diversity. With a 44 MHz tuning bandwidth and up to 32 available channels per frequency band, this transmitter ensures clear, uninterrupted audio.

The SLXD5 Single-Channel Portable Digital Wireless Receiver, included in this system, is a compact, portable unit that delivers pristine 24-bit digital audio clarity. It features efficient long-range UHF transmission and easy-to-use setup features, making it ideal for on-camera or audio bag use. The receiver's bright OLED screen displays battery life in hours and minutes, providing essential information at a glance.

The system also includes the WL185 Cardioid Condenser Lavalier Microphone, a subminiature microphone with a cardioid pickup pattern that effectively minimizes off-axis ambient noise and feedback. Its low-profile design makes it ideal for situations where the microphone needs to be concealed. The microphone's wide frequency response and high SPL rating ensure full, clear audio reproduction for speech.

In summary, the SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier, SM63-LB Handheld Microphone, and SLXD3 Plug-On Transmitter, J52: 558-616MHz is a comprehensive audio solution that combines industry-leading digital wireless technology and design to deliver superior sound quality and performance.

Shure SLXD15/85 + SM63-LB Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & WL185 Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with the WL185 lavalier microphone, ideal for interviews and presentations.
  • Experience superior sound quality with this Shure digital wireless microphone system at an affordable price.
  • The SLXD3 plug-on transmitter turns any XLR mic into a wireless microphone, expanding your options.
  • Enjoy freedom of movement with a reliable wireless range, perfect for dynamic performances and events.
  • The included SM63-LB handheld microphone delivers clear speech, great for on-the-spot reporting.
  • Benefit from long-lasting battery life for uninterrupted recording sessions with this wireless system.

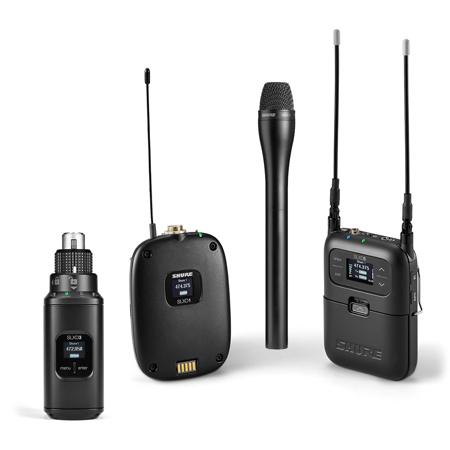

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • WL185 Cardioid Condenser Lavalier Microphone
  • SLXD3 Digital Wireless Plug-On Transmitter
  • SM63-LB Omnidirectional Handheld Wired Microphone with Extended Handle (Black)
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Clothing Clip
  • Windscreen
  • Shure 2 Year Limited Warranty
