PACKAGE INCLUDES:
Note: 1 or more items are unavailable for immediate shipping
See Options
Need help? Ask our experts.
Review Summary
H55: 514-558MHz
4-Pin male mini connector (TA4M)
Unbalanced
1 M Ohm
8.2 dBV (2.57 Vrms, 7.27 Vpp)
-118 dBV (EIN)
1/4 Wave
<200 kHz
Shure Proprietary Digital
1 mW/10 mW
Rechargeable Li-Ion or 1.5 V AA batteries
PC/ABS
3.86 x 2.68 x 1" (98 x 68 x 25.5mm)
3.1 oz (89g)
>75 dB Typical
50 Ohm
Yes
1/4 Wave Whip
20 Hz - 20 kHz (+1, -3 dB)
1/8" (3.5 mm), x2
Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Balanced (Mono) Line: 450 Ohm
Balanced (Mono) Mic: 240 Ohm
Dual Mono Line: 400 Ohm
Dual Mono Mic: 200 Ohm
Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 Ohm Load
Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
Aluminum
4.21 x 2.68 x 1" (107 x 68 x 25.3mm)
1.8 lbs (182g)
Lavalier
Mono
MEMS
Omnidirectional
No
No
20 Hz to 20 kHz
132 dB SPL (1 kHz, 1% THD)
-42.5 dBV at 1 kHz
101 dB
63 dB
1 xTA4F/Mini-XLR 4-Pin Female (Waterproof)
66" (1.7m)
Plug-In Power
to
220 microA
Black
Advertised as Water Resistant
0.2 x 0.6" (5.2 x 14.5mm)
0.5oz (15g)
Required, included
Alkaline
AA
6
192223243552, 042406761048, 042406764568, 042406051125
Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.
Get the shot. Capture the sound. Every time.
From weddings to live streams, great video is nothing without great audio.
Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.
Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.
SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

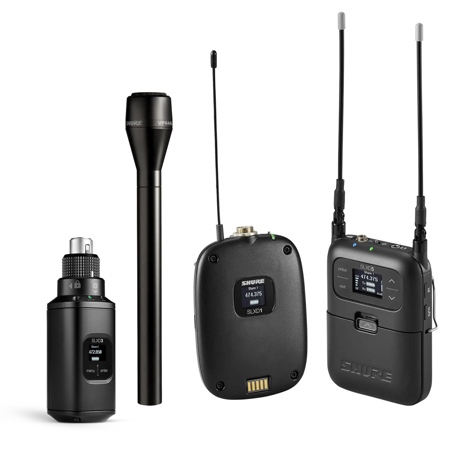

How does the SLXD15/DL4B Portable Digital Wireless Microphone System with DL4B Lavalier, VP64AL Handheld Microphones, and SLXD3 Plug-On Transmitter, H55: 514-558MHz elevate your audio experience This comprehensive audio system delivers transparent, 24-bit digital audio, ensuring high-quality sound for a variety of applications, from professional conferences to nighttime performances.
The SLXD1 Digital Wireless Bodypack Transmitter, a key component of this system, offers rock-solid RF performance and easy setup. It features an extended 20 Hz to 20 kHz frequency range, 118 dB dynamic range, and digital predictive switching diversity. With a 44 MHz tuning bandwidth and 32 available channels per frequency band, this transmitter ensures excellent sound quality and flexibility.
The SLXD5 Single-Channel Portable Digital Wireless Receiver, designed for portability, delivers pristine 24-bit digital audio clarity and efficient long-range UHF transmission. It features dual 1/8" outputs, a bright OLED display screen for key system function readouts, and digital predictive switching diversity.
The DuraPlex DL4 wireless lavalier microphone, resistant to dust, dirt, water, and sweat, offers professional-quality audio for film, broadcast, speech, theater, and performance applications. With an IP57 dust-resistant, waterproof rating, this microphone is perfect for use in harsh environments. It features a neutral, full sound quality and an advanced 1.6 mm Shure Plex cable for unprecedented longevity.
In summary, the SLXD15/DL4B Portable Digital Wireless Microphone System with DL4B Lavalier, VP64AL Handheld Microphones, and SLXD3 Plug-On Transmitter, H55: 514-558MHz is a versatile, high-quality audio solution for a wide range of applications.
