Shure SLXD15/DL4B Portable Digital Wireless Microphone System with DL4B Lavalier, SM63-LB Handheld Microphones and SLXD3 Plug-On Transmitter, J52: 558-616MHz

SKU: SHSLXD15DJ5A MFR: SLXD15/DL4B-J52-A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD15/DL4B Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
    Shure SLXD15/DL4B Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
  • +
  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
    Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
  • +
  • Shure SM63LB Omni-Directional Handheld Wired Microphone with Handle, Black
    Shure SM63LB Omni-Directional Handheld Wired Microphone with Handle, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture crystal-clear audio with the DL4B lavalier wireless microphone for professional recordings.
  • Enjoy versatile sound with the SM63-LB handheld mic, perfect for interviews and live performances.
  • Use the SLXD3 plug-on transmitter to easily convert any XLR mic to a wireless microphone system.
  • The SLXD5 receiver ensures reliable digital wireless performance with a wide 558-616MHz range.
  • Benefit from long-lasting power with AA batteries, ideal for extended shoots and presentations.
  • Portable and rugged, this wireless microphone system includes a carrying pouch for on-the-go use.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD15/DL4B + SM63-LB Specifications

General

General

Jump to...
  • RF Frequency Band

    J52: 558-616MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

DL4 Lavalier Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Element Type

    MEMS

  • Polar Pattern

    Omnidirectional

  • Pad

    No

  • High-Pass Filter

    No

DL4 Lavalier Microphone: Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    132 dB SPL (1 kHz, 1% THD)

  • Sensitivity

    -42.5 dBV at 1 kHz

  • Dynamic Range

    101 dB

  • Signal-to-Noise Ratio

    63 dB

DL4 Lavalier Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female (Waterproof)

  • Cable Length

    66" (1.7m)

DL4 Lavalier Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    to

  • Operating Current Consumption

    220 microA

DL4 Lavalier Microphone: Physical

Jump to...
  • Color

    Black

  • Environmental Protection

    Advertised as Water Resistant

  • Dimensions (W x L)

    0.2 x 0.6" (5.2 x 14.5mm)

  • Weight

    0.5oz (15g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Codes

    192223243538, 042406761215, 042406764735, 424060512172

33 Accessories for Shure SLXD15/DL4B Portable Digital Wireless Microphone System with DL4B Lavalier, SM63-LB Handheld Microphones and SLXD3 Plug-On Transmitter, J52: 558-616MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/DL4B + SM63-LB

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

How can you elevate your audio recording experience The SLXD15/DL4B Portable Digital Wireless Microphone System with DL4B Lavalier, SM63-LB Handheld Microphones, and SLXD3 Plug-On Transmitter, J52: 558-616MHz is the answer. This advanced system delivers crystal-clear, 24-bit digital audio, ensuring every sound is captured with precision. Its robust RF performance guarantees stable and reliable connectivity, making it an ideal choice for a wide range of applications, from professional conferences to live performances.

The SLXD1 Digital Wireless Bodypack Transmitter, a key component of this system, offers easy syncing with a wireless receiver. Its TQG connectivity supports a variety of microphone options, providing flexibility for different recording needs. With an extended frequency range of 20 Hz to 20 kHz and a dynamic range of 118 dB, this transmitter ensures high-quality sound reproduction.

The SLXD5 Single-Channel Portable Digital Wireless Receiver, another integral part of this system, is designed for portability. It offers pristine 24-bit digital audio clarity and efficient long-range UHF transmission. Its bright OLED screen displays battery life in hours and minutes, providing real-time monitoring of your device's power status.

The DL4 DuraPlex Omnidirectional Lavalier Microphone, included in this system, is built to withstand harsh conditions. With an IP57 dust-resistant and waterproof rating, it ensures consistent, high-quality audio capture in any environment. Its advanced 1.6 mm Shure Plex cable is designed for longevity, resisting kinks and memory effect.

In summary, the SLXD15/DL4B Portable Digital Wireless Microphone System is a comprehensive solution for all your audio recording needs, delivering professional-quality sound in a versatile and durable package.

Shure SLXD15/DL4B + SM63-LB Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & DL4B Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with the DL4B lavalier wireless microphone for professional recordings.
  • Enjoy versatile sound with the SM63-LB handheld mic, perfect for interviews and live performances.
  • Use the SLXD3 plug-on transmitter to easily convert any XLR mic to a wireless microphone system.
  • The SLXD5 receiver ensures reliable digital wireless performance with a wide 558-616MHz range.
  • Benefit from long-lasting power with AA batteries, ideal for extended shoots and presentations.
  • Portable and rugged, this wireless microphone system includes a carrying pouch for on-the-go use.

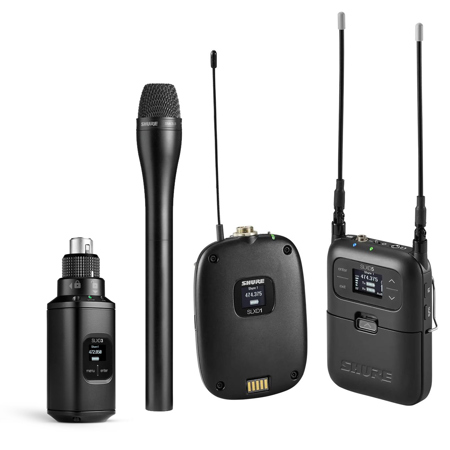

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • DL4 DuraPlex Omnidirectional Lavalier Mic (Black)
  • SLXD3 Digital Wireless Plug-On Transmitter
  • SM63-LB Handheld Wired Mic with Extended Handle
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Presence Cap
  • Single Tie Clip
  • Snap-Fit Windscreen
  • Foam Windscreen
  • Sticky Mount
  • TA4F Locking Collar
  • Case
  • Shure 2 Year Limited Warranty
