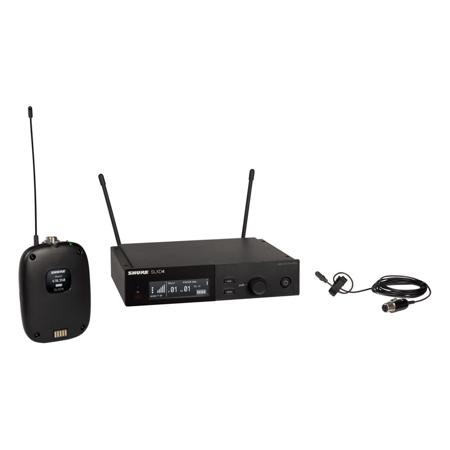

Shure SLXD14/DL4 Digital Wireless System with DL4 Lavalier Microphone G58: 470-514MHz

SKU: SHSLXDL4BG58 MFR: SLXD14/DL4B-G58
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: The DL4 lavalier mic ensures top-notch sound quality for any recording.
  • Reliable wireless: Enjoy up to 328 feet of freedom with Shure's robust digital connectivity.
  • Perfect for interviews: Capture clear, professional audio with this wireless microphone system.
  • Long-lasting battery: Count on the SLXD1 transmitter for hours of uninterrupted performance.
  • Easy setup: The SLXD4 receiver offers simple, intuitive controls for quick configuration.
  • Durable and discreet: The DL4 lavalier microphone is built to last and easy to conceal.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14/DL4 Specifications

System
  • Available Carrier Frequency Ranges

    G58: 470-514MHz, H55: 514-558MHz, J52: 558-616MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    25 kHz

  • Image Rejection

    >70 dB typical

  • RF Sensitivity

    -97 dBm at 10-5 BER

  • Latency

    3.2 ms

  • High-Pass/Low Cut Filter

    150 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    A-weighted, 20 Hz-20 kHz, typical
    118 dB
    @1% THD

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

SLXD4 Receiver

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

  • Impedance

    50 Ohm

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)
    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA
    Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

SLXD1 Transmitter

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier (EIN)

    -118 dBV

  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

DL4 Lavalier Microphone

Jump to...
  • Color

    Black

  • Microphone Capsule

    MEMS

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20Hz to 20kHz

  • Sensitivity

    -42.5 dBV (7.5 mVRMS) @ 1 kHz

  • Self-Noise

    31 dB SPL-A (A-weighted, Equivalent Acoustical)

  • Signal-to-Noise Ratio

    63.0 dB

  • Maximum SPL

    132.0 dB SPL (1 kHz @ 1% THD, typical)

  • Dynamic Range

    101.0 dB (Typical)

  • Microphone Current

    Draw 220 microA, maximum

  • Bias Voltage

    5 VDC (Recommended Operating Voltage)

  • Housing

    Molded ABS

  • Polarity

    MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1

  • Cable Diameter

    1.6mm

  • Cable Length

    66.0" (1.67m)

  • Dimensions (L x D)

    Capsule (L x D): 0.6 x 0.2" (14.5 x 5.2mm)

  • Weight

    0.53 oz (15g)

  • UPC Code

    042406668699

About Shure SLXD14/DL4

Featuring the DL4 IP57-rated waterproof subminiature lavalier microphone (black) and the SLXD1 transmitter to provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

The SLXD14/DL4 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter and DL4 IP57-rated waterproof subminiature omnidirectional lavalier microphone (black) with lavalier, antenna and rackmount accessories, and 2 AA batteries.


- SLXD4 Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.


- SLXD1 Bodypack Transmitter -
The SLXD1 easily syncs with a wireless receiver for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.


- DL4 Lavalier Microphone -
Defy the elements. The DuraPlex subminiature DL4 lavalier microphone is consistent, long-lasting, and resistant to dust, dirt, water, and sweat. Offering professional-quality audio for film, broadcast, speech, theater, and performance applications, DuraPlex is perfect for everyday situations but excels in the harshest environments such as broadcast audio and sound for film. Capture every moment with confidence. Rain, or shine.

DuraPlex DL4 lavalier has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the weather and other demands won't slow you down with this waterproof lavalier microphone. As comfortable on the beach as it is in a broadcast studio, DuraPlex DL4 features a neutral, full sound quality that lives up to the highest audio standards.

The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It won't kink, is fully paintable, and also offers DL4 users virtually zero "memory effect."

The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It won't kink, is fully paintable, and also offers DL4 users virtually zero "memory effect."

Advanced 1.6 mm Shure Plex cable:
• Dual redundant ground in cable serves as secondary shield for unprecedented longevity
• Immune to memory effect and kinks
• Fully paintable with typical theater paints, pens, and polishes

Shure SLXD14/DL4 Features

  • SLXD4 Digital Wireless Receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction
  • SLXD1 Bodypack Transmitter
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction
  • DL4 Lavalier Microphone
  • 5mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sonic quality for broadcast audio, sound for film, speech, theater, and performance applications
  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
  • TA4F (mTQG) Connector type

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The DL4 lavalier mic ensures top-notch sound quality for any recording.
  • Reliable wireless: Enjoy up to 328 feet of freedom with Shure's robust digital connectivity.
  • Perfect for interviews: Capture clear, professional audio with this wireless microphone system.
  • Long-lasting battery: Count on the SLXD1 transmitter for hours of uninterrupted performance.
  • Easy setup: The SLXD4 receiver offers simple, intuitive controls for quick configuration.
  • Durable and discreet: The DL4 lavalier microphone is built to last and easy to conceal.

What's in the box:

  • SLXD4 Digital Wireless Receiver
  • SLXD1 Bodypack Transmitter
  • DL4 Lavalier Microphone
  • 2x AA Alkaline Batteries
  • 2x 1/4 Wave Antennas
  • 2x BNC Cables
  • Zipper Bag
  • 2x BNC Bulkhead Adapters
  • Rackmount Set
  • Power Supply
  • User Manual
  • Shure 2 Year Limited Warranty
