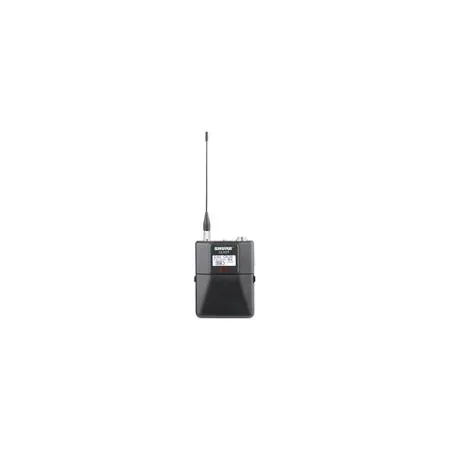

Shure ULXD1 Digital Wireless Bodypack Transmitter with 3-Pin LEMO Connector X52: 902-928MHz

SKU: SHUD1LMO3X52 MFR: ULXD1LEMO3=-X52
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless bodypack transmitter, perfect for live performances.
  • Enjoy reliable connection and freedom of movement with a 328 ft range using this wireless microphone.
  • The ULXD1 features low latency (<2.9 ms) ensuring seamless audio sync for professional applications.
  • Utilize the AES 256 encryption for secure wireless transmission, ideal for sensitive environments.
  • Get up to 11 hours of battery life with AA batteries, keeping your wireless system running smoothly.
  • Rugged aluminum build ensures durability; this digital wireless transmitter is ready for any stage.
See More Product Details

Product Options

Special Order Item?Estimated to Ship: 08/01/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ULXD1 WITH LEMO CONNECTOR Specifications

  • Available Frequency Band

    G50: 470-534 MHz
    H50:534-598MHz
    J50A: 572-616MHz
    X52: 902-928MHz

  • Transmitter Type

    Bodypack

  • Wireless Technology

    Digital UHF

  • Max Operating Range

    328.1' (100m)

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Encryption

    AES 256

  • Modulation

    Proprietary

  • RF Output Power

    20 / 10 / 1 mW (Selectable)

  • Audio I/O

    1x LEMO 3-Pin Female Input

  • Bias/Plug-In & Phantom Power

    5 V Bias/Plug-In Power
    No Phantom Support

  • USB I/O

    No

  • Included Cable Connector

    No

  • Muting

    Off/On Switch

  • Audio Input Level

    20.5 dBV (Max, Pad On)

  • Auto-Level/Gain

    Yes

  • Gain Range

    0 to +21 dB (3 dB Steps)

  • Sync Method

    IR

  • Antenna

    1x Detachable 1/4 Wave External (Beltpack)

  • Power Requirements

    Battery

  • Battery

    2x AA

  • Transmitter Battery Life

    11 Hours (Alkaline)

  • Display & Indicators

    1x Backlit LCD (Channel, Group, Mute, Power, RF Output Power)

  • Housing

    Aluminum

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.6 x 3.4 x 0.9" (66 x 86 x 23mm)

  • Weight

    5 oz (142g) (without Batteries)

  • UPC Code

    042406482165

About Shure ULXD1 WITH LEMO CONNECTOR

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Secure sound
Confidentiality is ensured via AES-256 encryption that generates a randomized key for each use.

Networked, intelligent charging
ULX-D transmitters use either AA batteries or our intelligent rechargeable solutions for up to 9 hours of use. Battery life and charge status can be monitored remotely from Shure software. So power is always on your side.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD1 WITH LEMO CONNECTOR Features

  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B lithium-ion rechargeable battery provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Shure wireless bodypack transmitter, perfect for live performances.
  • Enjoy reliable connection and freedom of movement with a 328 ft range using this wireless microphone.
  • The ULXD1 features low latency (<2.9 ms) ensuring seamless audio sync for professional applications.
  • Utilize the AES 256 encryption for secure wireless transmission, ideal for sensitive environments.
  • Get up to 11 hours of battery life with AA batteries, keeping your wireless system running smoothly.
  • Rugged aluminum build ensures durability; this digital wireless transmitter is ready for any stage.

What's in the box:

  • Shure ULXD1 Digital Wireless Bodypack Transmitter
  • Antenna
  • 2x AA Batteries
  • Vinyl Bag
