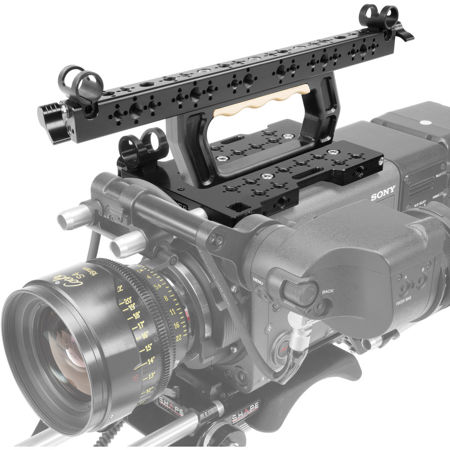

Shape Top Handgrip & Top Plate for Sony Venice with 15mm LW Front Rod Clamp

Sony Venice top plate

The robust CNC machined aluminum Top Plate is designed to support and facilitate the handling of your Sony Venice Camera. It is secured on top of the camera using four 1/4"-20 UNC socket head cap screws. The Top Plate offers an array of 3/8"-16 UNC threaded mounting holes on the top and on of both sides, including the ARRI anti-rotating system which can be used to better secure your accessories directly mounted onto the Top Plate. It also features two Self-Securing Closure strap attachment slots for cable management to keep cables away from the camera menu screens and buttons. The SHAPE Top Plate also fits the Sony Venice original handle perfectly well and can be placed further forward for better balance.

The top plate is designed with 15 m LW front rod clamp allowing you to mount the original Sony viewfinder bracket. A removable 15mm or 19mm Studio Rod Clamp for Top Plate (15CTH or 19CTH) can be mounted at the front of the Top Plate, allowing easy positioning of 15mm and 19mm rods to set the accessories at the proper height with respect to the Sony Venice camera optical center. In addition, the original Sony Venice Camera Top Handle can be used with the SHAPE Sony Venice Top Plate for a lightweight shoulder rig solution. The SHAPE Top Plate also features a dovetail and safety pin system that reproduce the one on top of the camera body; the Allen key must be temporarily removed to insert it into the Top Handle. The SHAPE Top Plate comes with a tool box and magnetic Allen key which are useful for adjusting and installing the Top Plate onto the camera.

Sony Venice Top Handle

The SHAPE Top Wooden Handgrip is designed with a closed handle which gives you a rock-solid grip, allowing you to hang the camera for different setups using the SHAPE Sony Venice Top Plate. It is specifically designed for rig and tripod configurations; it features an ergonomic wooden grip and the new SHAPE Cheese Top Rail that is equipped with many ARRI Standard anti-rotating 1/4"-20 and 3/8"-16 UNC threaded holes located on the top, on each side and both ends of the rail. 15mm and 19mm Studio Rod Clamps for Top Plate (15CTH, 19CTH) can be mounted in a parallel or perpendicular orientation at both ends of the Cheese Rail which can be attached in three different positions on top of the handle. Also, the handgrip is screwed on the Top Plate using 1/4"-20 UNC socket head cap screws and can be removed from the Top Plate using the Allen key included.

• Ergonomic Top Wooden Handgrip
• Closed Handle for Rock-Solid Grip
• Specifically designed for Rig and Tripod Configurations
• Cheese Top Rail providing several ARRI Standard Anti-Rotating 1/4"-20 and 3/8"-16 UNC Threaded Holes
