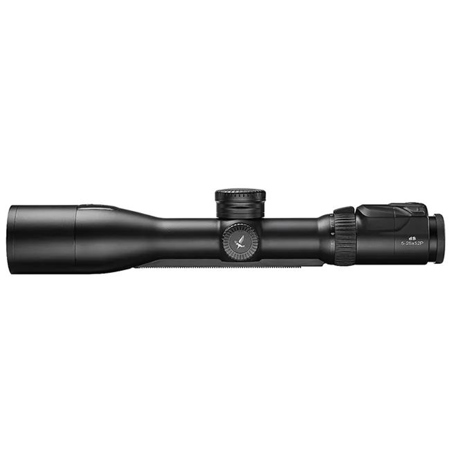

Swarovski Optik 5-25x52 dS Gen II P Riflescope, Illum SFP 4A-I Ret., 40mm Tube
See all Swarovski Optik items

Swarovski Optik 5-25x52 dS Gen II P Series Riflescope, Matte Black FInish with Illuminated Second Focal Plane 4A-I Reticle, Side Parallax Focus, 40mm Center Tube

SKU: SI71001

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Swarovski Optik dS Gen II P Specifications

Mount

Mount

Jump to...

  • Mount Type

    Rail-Mount

Retical

Jump to...

  • Retical

    4A-I

Objective

Jump to...

  • Magnification

    5-25x

  • Effective objective lens diameter

    48-52mm

  • Exit pupil diameter

    9.6-2.1mm

  • Exit pupil distance

    95mm

  • Field of view at 100 yds/ 100 m

    7.3-1.5 m/100m

  • Field of view degrees

    4.2-0.84 Degree

  • Field of view apparent

    21.5 Degree

  • Diopter adjustment

    -3 to +2 dpt

  • Light transmission

    83%

  • Twilight factor acc. to ISO 14132-1

    14.1-36.0

  • Parallax correction

    50-Infinite m

Measurement

Jump to...

  • Impact point correction per click

    0.25 / 7

  • Max. elevation/windage adjustment range

    43/25 / 1.2/0.7

  • Measuring range

    30-1375m

  • Measuring precision

    1m

  • Measuring angle

    60 Degree

  • Max aiming point correction

    3359' (1024m)

Digital

Jump to...

  • Objective filter thread

    M 63x0.75

  • Operating time

    500x

  • Display

    LCoS monochrome

  • Add-on program

    dS Configurator

  • Operating system

    iOS from Version 8.1, Android from Version 4.4 KitKat

Illumination

Jump to...

  • Brightness levels

    64

General

Jump to...

  • Functional temperature

    -13 to +131 Degree F (-25 to 55 Degree C)

  • Storage temperature

    -22 to +158 Degree F (-30 to 70 Degree C)

  • Submersion tightness

    13' (4m) water depth (inert gas filling)

  • Battery Info

    Required, Included

  • Battery Material

    -

  • Battery Quantity

    1

  • Battery Type

    CR123

  • Dimensions

    Length: 15.8" (403mm)
    Central tube diameter: 1.5" (40mm)

  • Weight

    38 oz (1090g)

About Swarovski Optik dS Gen II P

The dS automatically displays the correct aiming point and all the data you need in high resolution and in real time. Hunters no longer need to adjust the rifle scope manually, making it much easier to tackle long-range shots. The aiming point is calculated based on precise distance measurement, the angle of fire, the magnification selected, air pressure, temperature, and the ballistic data for your personal firearm/ammunition combination.

The dS Configurator App is used to enter the data on your firearm/ammunition combination and to configure the display. The ballistic curve and your individual display configurations are then transferred directly to the dS quickly and easily via Bluetooth.

Swarovski Optik dS Gen II P Features

  • Automatically displays the correct aiming point and all the data you need in high resolution
  • Precise distance measurement, the angle of fire, the magnification selected, air pressure, temperature
  • No longer need to adjust the rifle scope manually

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Automatically displays the correct aiming point and all the data you need in high resolution
  • No longer need to adjust the rifle scope manually

What's in the box:

  • 5-25x52 dS Gen II P Riflescope
  • CR123 Batteries
  • Swarovski Optik Lifetime Limited Warranty
