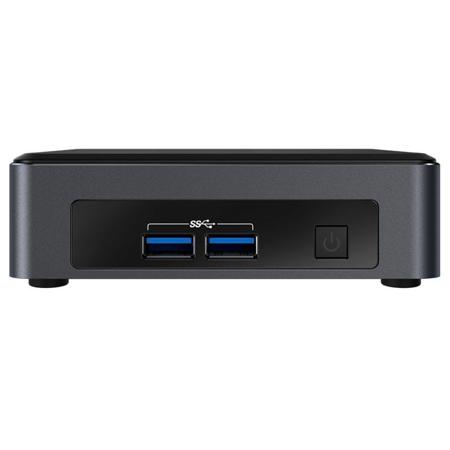

SimplyNUC NUC7i5DNKE NUC Mini PC Kit, Short Form Factor, Intel Core i5-7300U 2.6GHz, 32GB RAM, 512GB SSD, Ubuntu (Linux)

SKU: SI910JSG6031

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SimplyNUC NUC7i5DNKE Specifications

  • Processor

    Intel Core i5-7300U vPro processor (2.64 GHz with 3.5GHz Turbo, Dual Core, Hyper-thread, 3MB Cache, 15W TDP)

  • Processor Speed

    2.6GHz

  • System Memory

    32GB DDR4-2133 pre-installed
    Two DDR4 SO-DIMM sockets, 32GB Max, 1.2V

  • Graphics

    Intel HD Graphics 620
    Two HDMI 2.0 ports one with CEC and the second with optional CEC via internal header

  • Storage Drive

    512GB M.2 SATA SSD Pre-Installed

  • Storage Capabilities

    One M.2 socket supporting 22x80 M.2 SSDs, SATA or PCIe, 2TB SATA or PCIe SSD Max.

  • Peripheral Connectivity

    Intel Gigabit LAN w/ AMT support
    Four Super-Speed USB 3.0 ports (two on back panel and two on front panel)
    Intel Dual Band Wireless-AC 8265 (802.11ac), 2x2, up to 867 Mbps
    Dual Mode Bluetooth 4.2
    Wireless 802.11ac + BT 4.2 Radio can be removed or disabled for added security

  • System Bios

    64MB Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
    Advanced configuration and power interface V3.0b, SMBIOS2.5
    Intel Visual BIOS
    Intel Express BIOS update support

  • Audio

    Up to 7.1 surround audio via HDMI

  • Hardware Management

    Trusted Platform Module (TPM) 2.0
    AMT supported Ethernet Controller
    Voltage and temperature sensing
    ACPI-compliant power management control
    Processor fan speed control
    Fan sensor inputs used to monitor fan activity

  • Baseboard Power Requirements

    19V, 65W AC-DC power adapter with detachable power cord
    US Cord included, others available

  • Front Panel Header

    Reset, HDD LED, Power LEDs, power on/of

  • Expansion Capabilities

    One USB 3.0 port via a 1x10 header for functional Lid support
    Two USB 2.0 ports on two 1x4 internal headers for functional Lid support
    One Aux_PWR connector
    One Consumer Electronics control header

  • Environment Operating Temp

    0 to 45 deg. C (32 to 113 deg. F)
    Non-condensing Humidity

  • Storage Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Certification and Regulations

    Product Safety Regulations and Standards:
    IEC 60950-1
    UL 60950-1
    EN 60950-1
    CAN/CSA-C22.2 No. 60950-1

    EMC/RF Regulations and Standards (Class B):
    CISPR 52
    FCC CFR Title 47, Chapter I, Part 15, Subparts B, C, E
    ICES-005
    EN 55052
    EN 55024
    ETSI EN 500 528
    ETSI EN 501 489-1
    ETSI EN 501 489-17
    ETSI EN 501 895
    EN 62511
    AS/NZS 2772.2
    AS/NZS 4268
    VCCI V-2, V-5, V-4
    KN-52
    KN-24
    CNS 15458

  • Certification and Regulations (Cont.)

    Environmental Regulations:
    RoHS Directive 2011/65/EU
    WEEE Directive 2012/19/EU
    China RoHS

    Certified Operating Systems:
    Windows 10 64-bit (Pro & Home)
    Windows 10 IoT Enterprise - (64-bit only) CBB and LTSB
    Windows Server 2016
    Various Linux including: Ubuntu, Mint, openSUSE, etc.

  • Operating System

    Ubuntu (Linux)

  • Dimensions

    4.53 x 4.37 x 1.5" (11.51 x 11.10 x 3.81cm)

  • Weight

    2.38 lbs (1.08kg)

  • UPC Code

    680270788770

About SimplyNUC NUC7i5DNKE

Easy Customization
The Intel NUC Kit NUC7i5DNKE, built with 7th generation Intel Core i5 vPro processors, delivers the performance and innovation for small space and embedded solutions. Whether you're creating a digital kiosk, deploying intelligent vending or refreshing enterprise PCs, the Intel NUC7i5DNKE can get the job done easily. With Intel Wireless 8265-AC and the option to run Windows 10 or Linux or another OS, the NUC7i5DNKE delivers the flexibility to build the exact solution your solution needs.

New Features
The Intel NUC7i5DNKE has some new features including, for the first time, two full-sized HDMI 2.0a ports to power brilliant 4K displays at 60 Hz. Suddenly your clients' digital kiosks and intelligent vending machines have images that really pop and draw people in. This unit also includes an USB 3.0 on the internal header, in addition to 4 USB 3.0 ports on the chassis.

Safe And Secure
With Intel vPro technology you can help your customers get ahead of security threats. The built-in hardware-enhanced security means you can keep client data and credentials secure and remote manageability is perfect for installations such as unattended digital kiosks and intelligent vending. This hardware offers Intel Trusted Platform Module (TPM) which addresses the growing concern over boot process integrity and offers better data protection. In addition, Intel Remote Secure Erase lets you wipe an Intel SSD on a lost or stolen system or wipe all data and encryption keys for enterprise clients, making any data that was on the drive, virtually impossible to retrieve.

Who said small isn't powerful?
The Simply NUC7i5DNKE is the latest Dual-Core i5 vPro processor in the familiar 4" x 4" x 1.5" sized package, is able to run multiple applications and drive multiple 4K displays simultaneously. The slim chassis design can easily mount behind your monitor or be unobtrusively located in plain sight due to its small size. The active cooling system adjusts as needed to provide quiet during light loads where it isn't needed as much and barely audible cooling when more is needed.

Built for Business
The Simply NUC7i5DNKE is built with the 7th generation Intel Core i5 vPro processor to give you the performance to handle anything you throw at it. The Simply NUC7i5DNKE is designed for 24/7 operation and is perfect for refreshing enterprise PCs, Digital Signage, POS terminals and other continuous use applications. With the remote management features found in vPro processors, paired with AMT Ethernet devices, you can remotely access and control the hardware outside of the operating system.

Extended Life and Extended use
The Simply NUC7i5DNKE has a 3-year product life for you to design into your application and be able to purchase for years to come. These systems can also run Microsoft Server 2016, VMWare and various Linux Server Distros, making them perfect small, but very powerful, servers. They are just as comfortable running Windows 10 Pro as part of a corporate environment as they are at running specific demanding applications. For these reasons, many large companies are choosing to standardize on this one piece of hardware for their many different product lines.

Cut the cords, not the Performance
The Simply NUC7i5DNKE comes with Intel 802.11ac wireless, called Gigabit wireless, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud and with built-in Bluetooth 4.2, you can connect wireless peripherals like headsets and keyboards and the 7.1 surround sound helps to deeply immerse you in your content.

SimplyNUC NUC7i5DNKE Features

  • 7th generation Intel Core i5-7300U vPro processor
  • Intel HD Graphics 620
  • Internal 2x2 power connector, 12-24V
  • 22x80 M.2 Key-M socket for SSD. SATA and PCIe Supported. Intel Optane memory ready
  • One USB 3.0 internal header
  • 22x30 M.2 Type-E socket for Intel Wireless-AC 8265 and Bluetooth 4.2 radio. (Radio optional on motherboard models)
  • Intel Trusted Platform Module (TPM) (Core-i5 and Core-i7 models only)
  • 32GB DDR4
  • 512GB M.2 SSD (2TB Max)
  • Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz) (Core-i7 models are up to 2400 MHz)
  • Legacy Serial Port internal header
  • CEC support for 2nd HDMI port internal header
  • Front panel internal header
  • Two USB 2.0 internal headers
  • SATA3 port for connection to 2.5" HDD or SSD internal headers ("H" models include drive bay)
  • Dual Band Wireless Antennas (under LID)
  • Kensington lock support
  • Support for functional or cosmetic lids
  • Two USB 3.0 ports
  • Front panel power button with power LED
  • Back panel DC power connector (12-19V)
  • Intel Gigabit LAN
  • Two USB 3.0 ports on the back panel
  • HDMI 2.0a port supporting 8 channel audio (7.1 surround sound) and CEC

What's in the box:

  • SimplyNUC NUC7i5DNKE NUC Mini PC Kit
  • AC Adapter
  • US Cord
  • SimplyNUC 1 Year Limited Warranty
