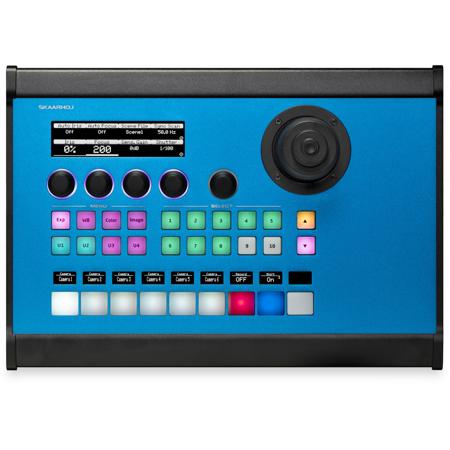

Skaarhoj PTZ Pro V2 Camera Controller

With dedicated buttons and knobs for all settings and actions, it's easy and quick to use.

You will enjoy all the same benefits as found on PTZ Fly, while having a larger hand rest and faster, direct access.

Default Configurations

AIDA PTZ3-X20L
Working with an AIDA PTZ3-X20L camera using a Ethernet-2-serial converter (XS1200 from usconverters.com) to bridge from network to RS232 or RS422 VISCA. Almost all camera parameters are available in the extensively configured menu.

PTZOptics PTx
PTZOptics configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific PTZOptics features. Control via Ethernet.

Sony BRC-X1000/H800
Sony BRC-X1000/H800 configuration with all advanced shading parameters available to the user. Access via VISCA over IP protocol and interoperable with SKAARHOJ RCPs simultaneously.

Sony BRC-H900
BRC-H900 configuration with all advanced shading parameters available to the user. Access via VISCA over IP protocol and interoperable with SKAARHOJ RCPs simultaneously.

Lumens VC-A50P
Lumens configuration for VC-A50P with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Lumens features. Control via Ethernet.

NewTek NDI-HX PTZ1
NewTek NDI PTZ camera HDI-HX PTZ1 configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific NewTek features. Control via Ethernet.

Panasonic PTZ
Generic Panasonic PTZ configuration with access to settings like iris, shutter, gain, white balance, color parameters and specific Panasonic PTZ features. The configuration automatically detects which Panasonic model(s) are connected and allow for model specific adjustments. Please see information about which models are currently supported in the "Panasonic PTZ" Device Core. Models that are not supported have basic PTZ and preset functionality.

BMD Cam Control via SDI
Blackmagic configuration designed for the Micro Studio Camera 4K on a PT head. Will control both VISCA Pan/Tilt instructions as well as color data over SDI to the camera. Control data is through SDI out (requires SDI option).

BMD Cam Control via ATEM
Blackmagic configuration designed for the Micro Studio Camera 4K on a PT head. Will control both VISCA Pan/Tilt instructions as well as color data over SDI to the camera. Control data is through an ATEM switcher or SKAARHOJ ATEM Proxy.

Vaddio RoboSHOT
Vaddio RoboSHOT configuration with full control of camera parameters via the menu and encoder knobs. Access to settings like auto iris, gain as well as white balance and specific Vaddio RoboSHOT features. Please see information about which models are currently supported in the Vaddio RoboSHOT Device Core manual. Control via Ethernet.

NewTek NDI-HX PTZ1 + Panasonic PTZ
A combo configuration for NewTek NDI PTZ camera HDI-HX PTZ1 and Panasonic PTZ. By default the configuration controls 4 x NewTek and 4 x Panasonic PTZ cameras but this can easily be modified by altering the a System: Camera Select function on the camera select row. For Panasonic please see information about which models are currently supported in the "Panasonic PTZ" Device Core. Models that are not supported have basic PTZ and preset functionality. Control via Ethernet.

PTZOptics + Panasonic PTZ
A combo configuration for PTZOptics PT20x and Panasonic PTZ. By default the configuration controls 4 x PTZOptics and 4 x Panasonic PTZ cameras but this can easily be modified by altering the System: Camera Select function on the camera select row. For Panasonic please see information about which models are currently supported in the "Panasonic PTZ" Device Core. Models that are not supported have basic PTZ and preset functionality. Control via Ethernet.

Sony SRG-300

BirdDog P200
Configuration for BirdDog P200 camera with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific BirdDog features. Control via Ethernet.

Bolin VCC-7HD30S-3SMN
Bolin NDI PTZ camera VCC-7HD30S-3SMN configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Bolin features. Control via Ethernet.

AIDA PTZ-X12-IP
AIDA PTZ-X12-IP configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific AIDA features. Control via Ethernet.

Ross PIVOTCam
Ross PIVOTCam configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific. PIVOTCam features. Control via Ethernet.

Lumens VC-A61P
Lumens configuration for VC-A61P with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Lumens features. Control via Ethernet.

Angekis Saber Plus U3D-12FHD6
Angekis configuration for Saber Plus U3D-12FHD6 with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Angekis features. Control via Ethernet.

Minrray UV510A-S12/S20
Minrray configuration for UV510A-S12/S20 with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Minrray features. Control via Ethernet.

Avonic CM-71-IP
Avonic configuration for CM-71-IP with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Avonic features. Control via Ethernet.

NewTek PTZUHD
NewTek NDI PTZ camera PTZ UHD configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific NewTek features. Control via Ethernet.

Sony BRC-X400
Sony BRC-X400 camera configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Sony features. Control via Ethernet.

BirdDog P200 + PTZOptics PTx
A combo configuration for BirdDog P200 camera and PTZOptics PTx. By default the configuration controls 4 x BirdDog P200 and 4 x PTZOptics PTx cameras but this can easily be modified by altering the System: Camera Select function on the camera select row. Control via Ethernet.

BirdDog P100
Configuration for BirdDog P100 camera with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific BirdDog features. Control via Ethernet.

JVC KY-PZ100
JVC configuration for KY-PT100 with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific JVC features. Control via Ethernet.

Datavideo PTC-140
Datavideo PTC-140 configuration with full control of camera parameters via the menu and encoder knobs. Access to exposure settings like iris, shutter, gain as well as white balance and specific Datavideo features. Control via Ethernet.

Datavideo PTC-150 Active

Raw Panel
In Raw Panel mode the controller will work as a TCP Client connecting to a server IP address on port 9923. The server receives simple action commands when buttons, encoders, faders etc are activated. In return the server sends button colors and display content. The API is documented as UniSketch TCP Client. on our GitHub repository. In Raw Panel mode, all the logic is placed on the server, which is typically a custom written software application.
