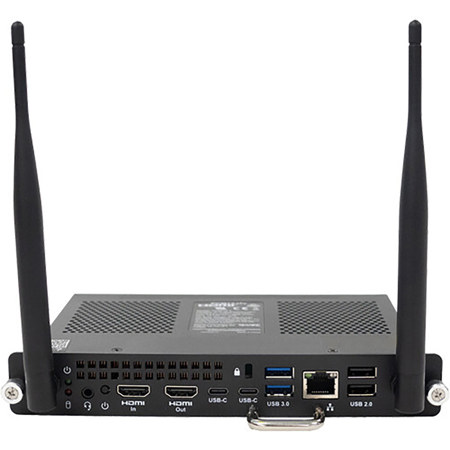

Smart Technologies PCM13 OPS PC Module, Intel Core i7-1365U vPro 1.8GHz, 16GB RAM, 256GB SSD

SKU: STPCM13I7V MFR: PCM13-I7V
Earn VIP Reward Points

Key Features

  • Experience seamless integration with your interactive display, enhancing your presentation experience.
  • Benefit from the robust Intel Core i7 processor, ensuring powerful and reliable performance for all your tasks.
  • Enjoy quick boot times and ample storage with the 256GB NVMe SSD, perfect for demanding applications.
  • Connect effortlessly with versatile input/output options, including HDMI and USB-C for ultimate compatibility.
  • Utilize the pre-installed Windows 11 Pro for a familiar and secure operating system experience right out of the box.
  • Enhance collaboration with integrated Wi-Fi 6e and Bluetooth 5.3, offering superior wireless connectivity.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Smart Technologies PCM13 Specifications

General

General

Jump to...
  • Processor (Raptor Lake)

    Intel Core i7 1365U vPro

  • Memory

    16 GB (2x 8 GB) DDR4

  • Storage

    256 GB M.2 NVMe SSD

  • Graphics

    Intel Iris Xe Graphics

  • 4K UHD video

    Yes, Full 4K UHD, 60 Hz

  • Operating system

    Windows 11 Pro, Full license

  • LAN

    Gigabit Ethernet Intel I219 vPro

  • Wireless

    Intel Wireless
    (2.4 GHz/5 GHz/6 GHz/BT)
    IEEE 802.11ax (Wi-Fi 6e)
    Bluetooth 5.3

  • TPM

    Trusted Platform Module 2.0

Software

Jump to...
  • Available SMART software

    SMART Notebook
    SMART TeamWorks
    SMART Meeting Pro
    SMART Remote Management

Storage and operating requirements

Jump to...
  • Power requirements

    12V to 19V DC

  • Operating temperature

    32-104 Degree F (0-40 Degree C)

  • Storage temperature

    -4-140 Degree F (-20-60 Degree C)

  • Humidity

    10-90% relative humidity, non-condensing

Power consumption

Jump to...
  • Standby

    <0.5 W

  • Maximum

    76 W

  • Maximum

    76 W

Inputs and outputs

Jump to...
  • Stereo 3.5 mm

    1x

  • HDMI 1.4 in (PCM13-i7v only)

    1x

  • HDMI 2.0 out

    1x

  • USB Type-C, up to 15 W power delivery

    2x

  • USB 3.2 Gen 1 Type-A

    2x

  • RJ45 (including indicator lights)

    1x

  • USB 2.0 Type-A

    2x

Certification and compliance

Jump to...
  • Certification

    UL Recognized | FCC | ISED | CONEG Packaging | California Prop 65

Physical

Jump to...
  • Dimensions

    7.87 x 5.37 x 1.12" (20 x 14 x 3cm)

  • Weight

    1 lbs 10 oz (750g)

  • UPC Code

    628012404861

About Smart Technologies PCM13

SMART Open Pluggable Specification (OPS) PC modules provide a hassle-free Windows 11 Pro installation based on 13th generation Intel Core processors and are designed specifically to work with SMART Board interactive displays. Available in three standard configurations, all OPS PC modules in the PCM13 series are WHQL (Windows Hardware Quality Labs) certified and fully licensed with Windows 11 Pro out of the box. Install the OPS PC module in a SMART Board interactive display's OPS slot to provide a complete 4K UHD Windows 11 installation at your fingertips, without the need for an external device or additional cables.

Install familiar Windows software applications, such as SMART Notebook collaborative learning software, SMART TeamWorks visual collaboration software, and SMART Meeting Pro software, and access the internet directly through your existing interactive display's network connection. Upgrades and service for the OPS PC module are easy to perform without removing the interactive display from its mounting.

Smart Technologies PCM13 Features

  • Processor: 13th Gen Intel Core i7
  • Operating System: Windows 11 Pro (licensed and pre-installed)
  • Resolution: Supports up to 4K UHD output
  • Certification: WHQL (Windows Hardware Quality Labs) certified
  • Integration: Designed for SMART Board interactive displays with OPS slots
  • Convenience: No external devices, cables, or adapters required
  • Software Ready: Install and run familiar Windows applications directly

Key Features

  • Experience seamless integration with your interactive display, enhancing your presentation experience.
  • Benefit from the robust Intel Core i7 processor, ensuring powerful and reliable performance for all your tasks.
  • Enjoy quick boot times and ample storage with the 256GB NVMe SSD, perfect for demanding applications.
  • Connect effortlessly with versatile input/output options, including HDMI and USB-C for ultimate compatibility.
  • Utilize the pre-installed Windows 11 Pro for a familiar and secure operating system experience right out of the box.
  • Enhance collaboration with integrated Wi-Fi 6e and Bluetooth 5.3, offering superior wireless connectivity.

What's in the box:

  • SMART Technologies PCM13 OPS PC Module
  • 2x Antennas
  • SMART Technologies 3 Year Limited Warranty
