SmartSystem Matrix Sled Ultra Lite Stabilizer, 3-Stud Mount

SKU: SMART8091 MFR: 000008091
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this ultra-lite video stabilizer system.
  • Enjoy enhanced stability and control with the single-grip handheld design for cameras.
  • Easily adjust the carbon fiber center post from 20.9 to 37 inches for optimal height.
  • Power your gear effortlessly with multiple LEMO power outputs on this support system.
  • Mount your LCD monitor and other accessories securely with the included mounts.
  • Customize balance using the ten 8 oz counterweights for precise camera adjustments.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmartSystem Matrix Sled Ultra Lite Specifications

  • Mount

    3 Stud Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Height

    20.9 to 37.0" (53 to 94cm)

  • Center Column Diameter

    1.6" (40.0mm)

  • Number of Sections

    2x

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    10x 8 oz (227g)

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • UPC Code

    8051411191971

About SmartSystem Matrix Sled Ultra Lite

Enhance your videography and cinematography capabilities with the Matrix Sled Ultra Lite Stabilizer, a state-of-the-art solution for achieving smooth and stable footage. This bundle, which combines the Matrix Sled Extreme with the R2 Lite Sled, is designed to cater to the needs of professional filmmakers using cinema-grade cameras, including heavier models.

The Matrix Sled Extreme is a testament to innovation in static and dynamic balancing, simplifying the process to the point where it feels like child's play. It comes equipped with additional counterbalance weights, ensuring perfect balance even with substantial camera setups. The Ultra-Fluid Gimbal features a micrometric non-floating head with backlash compensation, providing silky-smooth movement and precision control.

The stabilizer boasts a robust 1.575" (40mm) carbon fiber telescopic center post, offering a lightweight yet durable structure that can support a total weight of 5.5kgs without counterbalance weights. The tool-free design of the Matrix Sled means adjustments can be made quickly and effortlessly on the fly, enhancing operational speed and convenience.

The SmartHead technology is a groundbreaking feature that allows for complete disconnection of the sled's head, enabling the creation of custom configurations and future upgrades. The Monitor Rods Kit includes high-quality carbon rods with an INDEXED articulation system, ensuring your monitor remains stable and secure at any angle, without any unwanted rotation.

Powering your equipment is made flexible and efficient with the innovative SmartPack Floating Battery Pack. It offers separate circuits for two installed batteries, complete with intuitive hemispheric buttons and LED indicators. This system allows for selective powering of the camera and accessories, with options for 12V or 24V operation, and the ability to power the camera from one or both batteries for extended shooting sessions.

The stabilizer's dedicated wiring system supports up to three different voltages, ensuring each component of your equipment receives the appropriate power. An additional C Battery plate is included for even more endurance and flexibility in your setup.

For those seeking a lighter setup, the R2 Lite Sled is derived from the Matrix R2 and is ideal for use with smaller monitors. It features a 5-AXIS CNC machined, ultra-smooth gimbal, and a 40mm (1.57") telescopic carbon fiber post that extends from 530mm (20.86") to 940mm (37.00"). The unique Ronie 2 tilt-able battery plate allows for standard battery use on a sled without external cables, maintaining a sleek and uncluttered design.

The Matrix Sled Ultra Lite Stabilizer is a modular system that can be reconfigured to meet the demands of any shooting scenario. With the 3-Stud Mount, you can easily attach the battery plate, which includes 1/4 and 3/8 threaded holes for versatility. The micrometric non-floating topstage with an automatic locking system ensures quick and secure camera mounting.

In summary, the Matrix Sled Ultra Lite Stabilizer is a comprehensive and adaptable system that provides professional filmmakers with the tools needed for precise balancing, exceptional stability, and versatile power management, all within a tool-free and ultra-lightweight design.

SmartSystem Matrix Sled Ultra Lite Features

  • Micrometric TopStage Vibration free able to be fixed on the upper part as on lower part of the sled
  • Matrix Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
  • Exclusive Battery management based on Double 3 Studs Batteries slots for +12V and +12/+24V operation
  • C-Battery 3 Studs with 10x Counterweights to help you balancing heavy setup without increasing too much the sled lenght
  • Ronin2 Plate Adapter for Matrix Sled
  • Ronin2 Battery holder tilt-able from +90 Degree to -90 Degree f 100mm distance centre-to-centre of 15mm carbon fiber rods
  • Ronin2 Yaw Locker
  • Extended Docking Bracket for a perfect balancing (static and dynamic)
  • 3 Studs Plate with 1/4" and 3/8" threaded holes and Push Pull connectors (fuse protected)
  • R2 Counterweight plate with 10x Counterweights to help balancing heaviest setup when used with or without Ronin2
  • U-Bracket in order to increase the distance of the sled from the arm and giving the possibility to use your preferred monitor on the sled handle

Key Features

  • Achieve smooth, professional footage with this ultra-lite video stabilizer system.
  • Enjoy enhanced stability and control with the single-grip handheld design for cameras.
  • Easily adjust the carbon fiber center post from 20.9 to 37 inches for optimal height.
  • Power your gear effortlessly with multiple LEMO power outputs on this support system.
  • Mount your LCD monitor and other accessories securely with the included mounts.
  • Customize balance using the ten 8 oz counterweights for precise camera adjustments.

What's in the box:

  • Micrometric Camera Platform
  • 2-Section Carbon Fiber Center Post
  • Dual 3-Stud Mount Battery Plate
  • C-Battery 3-Stud Mount Battery Plate
  • 10x Counterweight (8 oz)
  • Docking Bracket

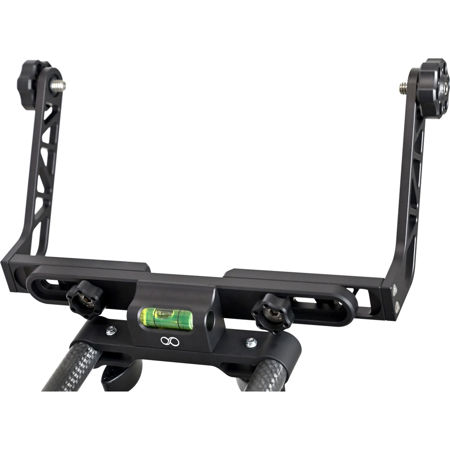

  • LCD Monitor Mount
  • Ronin 2 Plate Adapter
  • Ronin 2 Battery Bracket
  • Ronin 2 Yaw Lock
  • R2 Counterweight Plate
  • 10x R2 Counterweight
  • Hard-Shell Carry Case
  • SmartSystem 1 Year Limited Warranty
