SmartSystem Matrix Sled Chimera Stabilizer, V-Lock Mount

SKU: SMART8561 MFR: 000008561
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this SmartSystem video stabilizer, perfect for dynamic shots.
  • Enjoy enhanced stability with the carbon fiber center post, offering lightweight durability for any shoot.
  • Easily customize your setup; this camera sled features a V-Lock mount for quick battery swaps on location.
  • Fine-tune balance with ten 8 oz counterweights, ensuring optimal performance and steady footage every time.
  • The included docking bracket makes storage simple, protecting your stabilizer during transport & downtime.
  • Mount your LCD monitor effortlessly using the provided mount, improving on-set monitoring for perfect framing.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmartSystem Matrix Sled Chimera Specifications

  • Mount

    V-Lock Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Camera Mount

    Camera Plate

  • Center Column Diameter

    1.6" (40.0mm)

  • Number of Sections

    2x

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    10x 8 oz (227g)

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • Weight

    12.1 lbs (5.5kg)

  • UPC Code

    8051411192244

About SmartSystem Matrix Sled Chimera

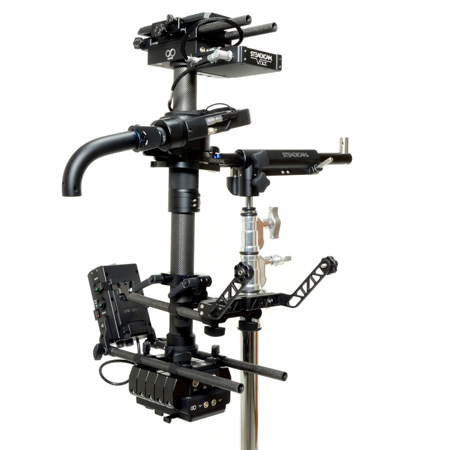

Bring your videography to the next level with the Matrix Sled Chimera Stabilizer, V-Lock Mount, offering a multitude of mounting options for the Volt brain. This advanced stabilizer can be mounted under the top stage junction box with an optional bracket, or directly on the top stage using the in-bundle bracket for optimal proximity to the camera. For a secure and decoupled connection for your low mode monitor, it can also be mounted on the top stage using optional brackets and carbon fiber rods.

The Matrix Sled Chimera Stabilizer is specifically designed to integrate seamlessly with gimbals that natively support the Volt system, ensuring the highest level of performance and stabilization. This stabilizer is equipped with the M2 gimbal, designed by Dedicated or shared power solutions, to provide the most integrated experience.

Understanding the power demands of brushless gimbal users, the Matrix Sled Chimera Stabilizer features a dedicated power line on every sled to eliminate vibrations and glitches caused by insufficient power. For the best results, SmartSystem recommends using the dedicated power path via a C-battery whenever possible.

The Chimera version of the Matrix Sled Stabilizer is the ultimate tool for cinema cameras, combining the specifications of the Matrix Sled Extreme with the advanced technology of the Volt system from Steadicam. Like the Extreme sled, it can balance heavier cameras with the help of additional counterbalance weights.

The stabilizer features a micrometric non-floating head backlash compensated top stage for a super stable camera mount. The separate rod-mounted LCD monitor holder offers maximum stiffness and flexibility. The innovative battery management system is based on Double Vlock or 3Studs Batteries slots, allowing you to operate at +12V or 24V with an extra C-Battery Slots.

Constructed with a 1.575" / 40mm Carbon fiber Telescopic center post, the Matrix Sled Chimera Stabilizer ensures ultimate rigidity, defining a total weight of 5.5kgs without counterbalance weights. This is the perfect tool for professionals seeking superior stabilization and performance in their video equipment.

SmartSystem Matrix Sled Chimera Features

  • As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included
  • The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount
  • Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility
  • The Innovative Battery management based on Double 3Studs Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots
  • A 1.575" Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights

Key Features

  • Achieve smooth, professional footage with this SmartSystem video stabilizer, perfect for dynamic shots.
  • Enjoy enhanced stability with the carbon fiber center post, offering lightweight durability for any shoot.
  • Easily customize your setup; this camera sled features a V-Lock mount for quick battery swaps on location.
  • Fine-tune balance with ten 8 oz counterweights, ensuring optimal performance and steady footage every time.
  • The included docking bracket makes storage simple, protecting your stabilizer during transport & downtime.
  • Mount your LCD monitor effortlessly using the provided mount, improving on-set monitoring for perfect framing.

What's in the box:

  • Camera Sled
  • Smarthead Camera Platform
  • 2-Section Carbon Fiber Center Post
  • Dual V-Lock Mount Battery Plate
  • C-Battery V-Lock Mount Battery Plate
  • 10x Counterweight (8 oz)
  • Docking Bracket
  • LCD Monitor Mount
  • Hard-Shell Carry Case
  • SmartSystem 1 Year Limited Warranty
