SmartSystem Matrix One Chimera Bundle with V-Lock Battery Mount

SKU: SMART8563 MFR: 000008563
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this SmartSystem stabilizer bundle, ideal for filmmakers.
  • Enjoy robust support with a max 74.9 lbs payload using the durable aluminum alloy Arm X1 stabilizer.
  • The Matrix Sled Chimera features a V-Lock mount for quick battery swaps, keeping you shooting longer.
  • Transport and protect your entire stabilizer system in the included hard case, IP67 certified.
  • Stay comfortable during long shoots with the lightweight Vest Lite, crafted from aluminum & steel.
  • Customize your setup with multiple power outputs (LEMO) on the Matrix Sled Chimera stabilizer system.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jorge H : need it for work

Reviews about this item

Review Summary

SmartSystem Matrix One Chimera Bundle with V-Lock Battery Mount Specifications

Arm X1
  • Material

    Arm: Aluminum alloy like 7075 (Ergal)

  • Boom Range

    28.5" (728mm)

  • Maximum Payload

    74.9 lbs (34kg)

  • Width

    1.77" (45mm)

  • Weight

    9.92 lbs (4.5kg)

Matrix Sled Chimera

Jump to...
  • Mount

    V-Lock Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Camera Mount

    Camera Plate

  • Center Column Diameter

    1.6" (40mm)

  • Number of Sections

    2

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    10x 8 oz (227g)

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • Weight

    12.1 lbs (5.5kg)

Vest Lite

Jump to...
  • Material

    Aluminum, Stainless Steel

  • Weight

    6.4 lbs (2.9kg)

Hard Case

Jump to...
  • Compatibility

    SmartCAM Arm & Sled System

  • Material

    Polypropylene

  • Certifications

    IP67
    STANAG 4280
    DEF STAN 81-41 Compliancy

  • Operating Temperature

    -22 to 194 Degree F (-30 to 90 Degree C)

  • Dimensions

    Outer: 32.12 x 21.26 x 12.04" (816 x 540 x 306mm)

  • Weight

    23.8 lbs (10.8kg)

  • UPC Code

    8051411192268

About SmartSystem Matrix One Chimera Bundle with V-Lock Battery Mount

Under the umbrella of professional filming equipment, the Matrix One Chimera Bundle with V-Lock Battery Mount stands out as a versatile, durable, and reliable choice. This high-quality bundle is designed to support a wide range of cameras and equipment, making it an ideal solution for professionals who frequently switch between different gear.

The Matrix Sled Chimera, a key component of the bundle, offers various mounting options for the Volt brain. It can be mounted directly on the top stage, either with the included bundle bracket for close proximity to the camera or with optional brackets and carbon fiber rods for a secure, decoupled connection for your low mode monitor. This sled is designed to natively integrate the Volt system, ensuring optimal performance and stabilization.

The Chimera version is a perfect tool for cinema cameras, merging the specifications of the Matrix Sled Extreme with the advanced technology offered by the Volt system from Steadicam. It can balance heavier cameras thanks to additional counterbalance weights included. The micrometric non-floating head backlash compensated top stage provides a super stable camera mount.

The Arm X1, another component of the bundle, is designed, engineered, manufactured, and hand-built exclusively in Italy. Made from AL7075 Ergal alloy, it offers performance similar to carbon steel but at a fraction of the weight. This arm can lift up to 32kg (70.4 lbs) with a maximum payload of 34kg (74.9 lbs), and has a maximum boom range of 728mm (28.5").

The Vest Lite, engineered around a proven design and made from top-quality materials, can be adjusted to fit both male and female operators perfectly. The hip pad and support ensure maximum leg freedom and stability, while the thoracic pads can be stacked for optimal comfort.

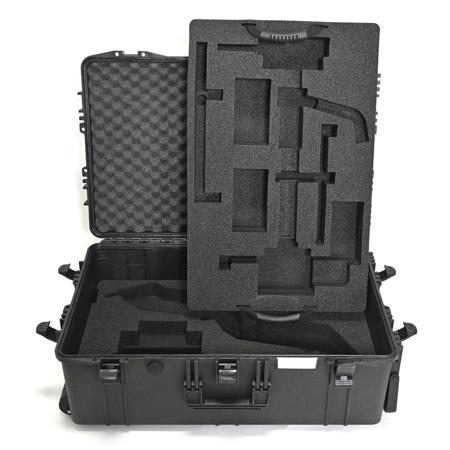

The bundle also includes a hard case, a trolley based on Explorer Cases 7745, modified to protect a Smartcam Arm (X-Lite or X1) and a Smartcam Sled (Matrix series).

In conclusion, the Matrix One Chimera Bundle with V-Lock Battery Mount is a comprehensive solution for professional photographers and videographers, offering versatility, durability, and high-quality performance.

SmartSystem Matrix One Chimera Bundle with V-Lock Battery Mount Features

  • Arm X1 Features
  • Double section articulated stabilization arm with an ultimate payload of 74.9 lbs (34kg) based on an exclusive Patented Design
  • Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 1.77" (45mm) of width)
  • Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
  • Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 9.92 lbs (4.5kg) in its heavier configuration)
  • Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
  • Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
  • Matrix Sled Chimera Features
  • As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included
  • The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount
  • Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility
  • The Innovative Battery management based on Double V-lock Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots
  • A 1.575" Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights
  • Vest Lite Features
  • Great comfort and perfect fit for operators of any height or weight, male or female
  • Ergonomic and flexible design. Reduced weight: just 6 lbs (2.7kg)
  • Buckle system for quick tighten and release operation
  • Memory foam padding
  • Balanced weight distribution
  • Removable and washable textile parts
  • Standard Arm connector. Compatible with all Professional Arms in the market
  • Transport Bag included
  • Hard Case Features
  • Polypropylene outer case
  • Foam rubber inner padding
  • Transport handle

Product Documents

User Manual

Key Features

  • Achieve smooth, professional footage with this SmartSystem stabilizer bundle, ideal for filmmakers.
  • Enjoy robust support with a max 74.9 lbs payload using the durable aluminum alloy Arm X1 stabilizer.
  • The Matrix Sled Chimera features a V-Lock mount for quick battery swaps, keeping you shooting longer.
  • Transport and protect your entire stabilizer system in the included hard case, IP67 certified.
  • Stay comfortable during long shoots with the lightweight Vest Lite, crafted from aluminum & steel.
  • Customize your setup with multiple power outputs (LEMO) on the Matrix Sled Chimera stabilizer system.

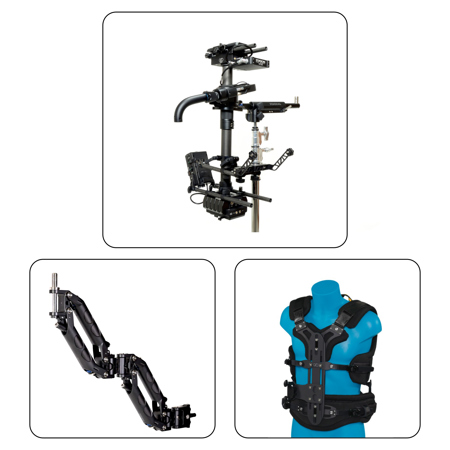

What's in the box:

  • Arm X1 Stabilizer Arm
  • Matrix Sled Chimera Stabilizer with V-Lock Mount
  • Vest Lite with Backpack
  • Hard Case
  • SmartSystem 1 Year Limited Warranty
