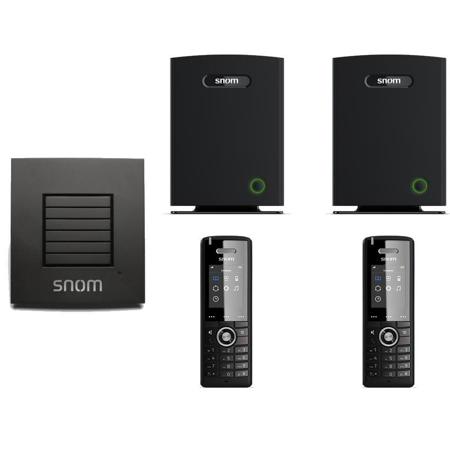

Snom M700 Bundle, Includes M5 Repeater, 2x M700 DECT Multicell Base Station, 2x M65 Handset with Charger

M5 Repeater

Extending coverage
The snom M5 DECT repeater is ideal for extending the range of your single-cell or multicell DECT solution in locations requiring mobile coverage across several floors or throughout large buildings.

• Supports single-cell and multicell bases
• Increase the range without Ethernet
• Wideband audio
• Up to 5 simultaneous calls
• Daisy chaining
• 12 slots
• 2 simultaneous wideband calls
• Slot multiplexing
• Slot packing
• Full slot move over request

Handover
The repeater increases the reception range of individual bases and handsets and bridges gaps between base stations, increasing the free movement between base stations in a single seamless network and allowing calls to continue uninterrupted.

Flexibility
The M5 repeater offers superior audio quality in both wideband and narrowband calls.

DECT
• Seamless handover
• Wideband voice (HDSP) Basic
• Interoperability , phase I (CAT-iq 1.0, 2.0)
• DECT encryption

M700 DECT Multicell Base Station

Easy Setup
The M700 base station is ideal for companies requiring wireless coverage across several floors or throughout large buildings. Set-up is easy and intuitive thanks to the integrated installation mode on the M65 or M25 handsets

• Scalable up to 40 base stations
• Up to 200 handsets per installation
• Wideband audio
• Over-the-air synchronization
• Repeater support
• Snom provisioning
• No hidden costs for licenses
• No DECT manager required

Seamless Handover
Snom's multicell DECT solution links multiple M700 base stations together, forming a seamless network to allow free movement between base stations. Initiated calls continue uninterrupted while moving from one station to the next. The multicell solution also supports the M5 repeaters with DECT encryption to further increase reception range and to bridge gaps between base stations.

Scalability
The multicell solution can be easily scaled and expanded up to a maximum of 40 M700 base stations and 200 handsets in the same network. Base stations synchronize and install themselves; expensive additional controller hardware is not necessary. With the M700 multicell system in your office, the connected M65 handsets enjoy many phone system features such as direct search in the corporate directory and HD audio.

Security
Wireless security is ensured by DECT encryption, while TLS and SRTP ensure secure SIP communication. And, as an added value, you do not have to pay any license fees for the included audio codecs, channels and other features. Based on snom provisioning, the system is interoperable with all major VoIP systems such as Broadsoft and Asterisk.

Multicell System
• Up to 200 parallel calls in 40-base system
• Up to 200 registered handsets in the same network in multicell setup
• Up to 30 handsets per base station in single-cell set-up
• Up to 8 narrowband or 4 wideband calls per base station in multicell setup
• Up to 10 narrowband or 5 wideband calls per base station in single-cell set-up
• Common phonebook with up to 200 entries
• List of registered handsets

Installation
• Positioning: Floor or desktop (footstand included), Wall mounting, Ceiling mounting
• Remote software updates via HTTP/ HTTPS/TFTP
• Automatic loading of settings via HTTP/ HTTPS/ TFTP
• Completely configurable through Web interface
• Static IP, DHCP support
• NTP (Network Time Protocol)
• Secure provisioning and authentication with Mutual TLS through individual certificate issued by snom CA

DECT
• Seamless handover using connection handover
• Wideband voice
• Authentication/encryption of base and handset

M65 Professional Handset with Charger

Professional DECT telephony
Combining versatile business communication functionality with the intuitive features of the mobile carrier world, the snom M65 is ideally suited to fast-paced professional telephony.

• Wideband speakerphone
• HD Audio (CAT-iq 1.0 compliant)
• DECT encryption
• 250 hours standby
• Local and shared address book
• Headset plug
• SW upgrade over-the-air
• Authentication/encryption of base and handset

Wide coverage
With its sleek appearance and comprehensive range of features, the M65 is ideal for customers who expect more of their phone system and require mobile coverage across several floors or throughout large buildings.

User Interface
The M65 has a large backlit 2" color display and a backlit keypad for easy dialing in poor light conditions. Wideband audio ensures crystal-clear voice quality for your calls, and, in addition to 6 polyphonic ringtones, the handset also features vibration alert for incoming calls. An integrated tricolor LED keeps you instantly informed of missed calls, voicemail messages and low battery status. The lithium-ion battery has a standby time of up to 250 hours and up to 17 hours of talk time for heavy usage between charging.

• Backlit keypad with 24 keys:
• Standard ITU telephone keypad, 12 keys, 4x3, with star and pound/hash key
• Three context-sensitive function keys
• 5 navigation keys (left, right, up, down, OK)
• Off-hook key, cancel key
• Speakerphone key with red LED when speakerphone is on
• Menu key
• Three side keys (volume up/down, mute)
• Comfortable and intuitive menu structure
• Selection of ring tones
• Tricolor LED indication of missed calls/new voice messages, low battery
• Speakerphone
• Mute microphone

Convenient Functions
When the M65 is used with a snom M700 or M300 base you enjoy many phone system features such as voicemail, automatic call forwarding, call lists, caller identification or direct search in the corporate directory.

Phone functions with M700 base station
• Two simultaneous calls
• Directory with 100 contact entries
• Central directory (common local directory on base or external directory via LDAP)
• 8 speed dial numbers (number keys 2 - 9)
• Caller identification (CLIP)
• Redial (via dialed calls list)
• Call waiting
• Auto answer
• Call lists (all calls, missed, received, dialed calls), 50 entries total
• Hold
• Call swapping (active call and call on hold)
• Blind and attended transfer
• Call forwarding
• 3-way conference on the phone
• DND mode (do not disturb)
• Hide own outgoing ID (CLIR)
• Missed call notification
• MWI - Voice message waiting notification

Installation
• Automatic registration to extension set on base
• Software update: Over the air via M700 base station
• Date and time synchronization from base station
